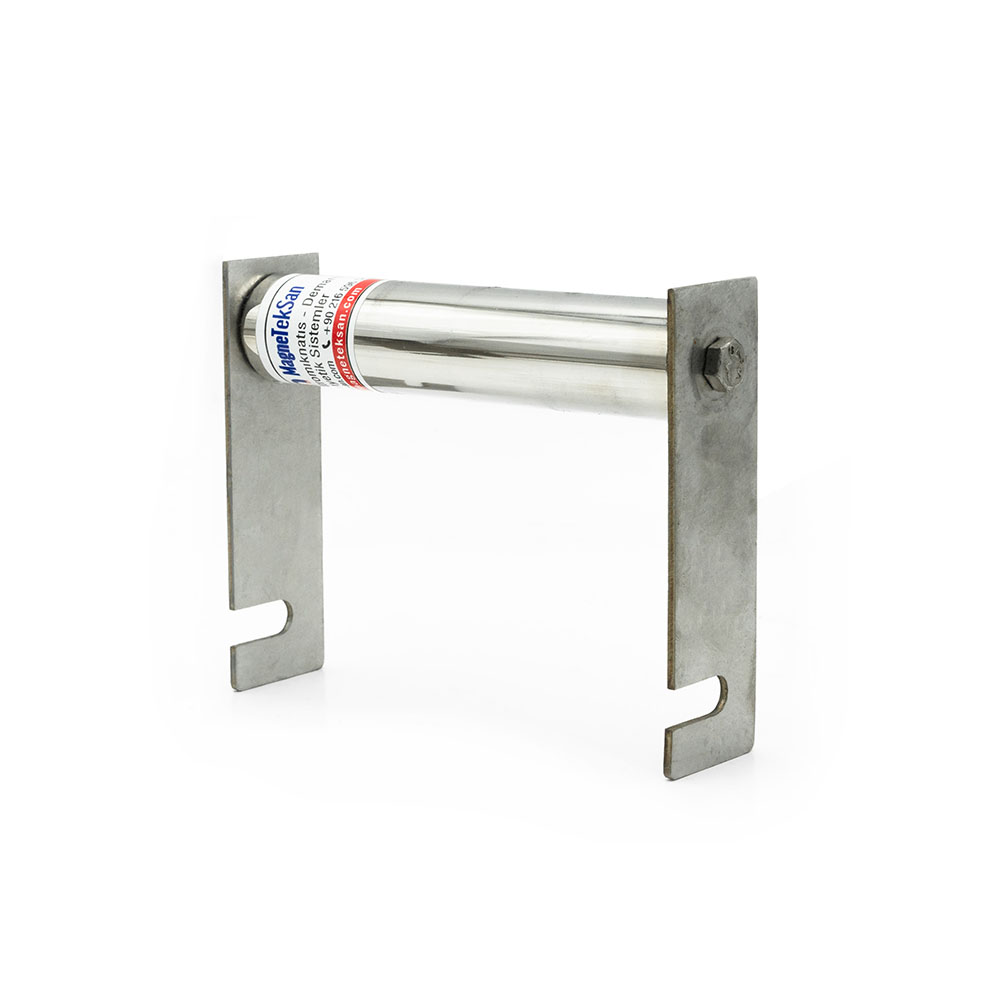

Ø25x120 mm Ear Rod Magnet

Neodymium Rod Magnet with Mounting Ears - Double-Sided Screw Holes

This rod magnet features a 25mm diameter and 120mm length. Our magnetic bar magnets primarily serve as metal separators in food and plastic industries. They ensure product purity by removing metals from food and plastic materials, guaranteeing both food and product safety. Any metal entering machinery can cause damage, which these bar magnets effectively prevent. The material complies with food standards and comes with certification.

Manufactured with high-powered neodymium magnets, they easily attract even microscopic metal dust and particles. Our neodymium magnetic bars offer five times more gauss pulling power compared to ferrite-ceramic magnets. All products are manufactured with superior corrosion resistance.

These neodymium magnetic bars are entirely our domestic production. As manufacturers, we can produce neodymium bar magnets in any size and gauss strength. We offer varieties with bakelite, aluminum, or stainless steel handles.

General Applications of Our Neodymium Rod Magnets

• Food Processing Industries
• Ceramic Manufacturing
• Soda and Mineral Production
• Boron Processing Plants
• Stone and Marble Industries
• Chewing Gum Manufacturing
• Wheat and Flour Mills
• Lime, Plaster, and Cement Production
• Glass Manufacturing
• Chemical Production
• Plastic Granule Manufacturing
• Packaging Equipment
• Plastic Grinding Machinery
• Spice Processing Facilities
• Legume Processing Plants
• Sugar Production Facilities
• Textile Industries

Magnet connection can be made either single-sided or double-sided. The minimum ferromagnetic particle size that can be captured is 0.03 mm.

The protective sleeve of the magnetic bar can be manufactured from 304 grade stainless steel or 316L grade stainless steel. The surface of the magnetic bar is polished and the unit is fully stainless and sealed to ensure durability and hygiene.

Upon request, the magnetic bar can also be equipped with handles made of chrome, aluminum, or bakelite materials. The manufacturing tolerance of the magnetic bar is ±1 mm.

The magnetic bars manufactured by our company are designed in various sizes and magnetic strengths to meet different industrial requirements. Their easy-to-clean design offers options suitable for special applications such as handled, lug-mounted, nipple sleeve connection, or missile-head type configurations.

For custom magnetic solutions tailored to your specific application, please feel free to contact our company.

Food Grade with Gauss Measurement Report

Our magnetic separators, certified with BRC and HACCP food compliance, ensure food safety. The neodymium magnetic grid-type separators maintain consistent strength for years. When installed at product discharge points, they provide excellent cleaning of falling products.

• Premium stainless steel coating on neodymium grid magnets
• Manufactured with AISI 304 and AISI 316 stainless steel
• Superior corrosion resistance
• High-gauss, powerful magnets produced in our facility
• Custom drawer-type neodymium grid magnets available at various gauss levels
• Standard operating temperature of 80°C, with models available up to 250°C
