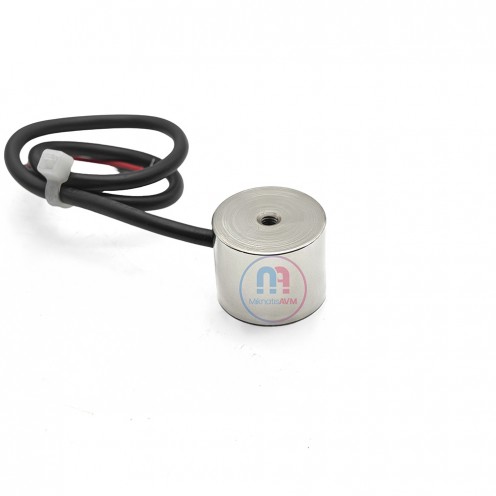

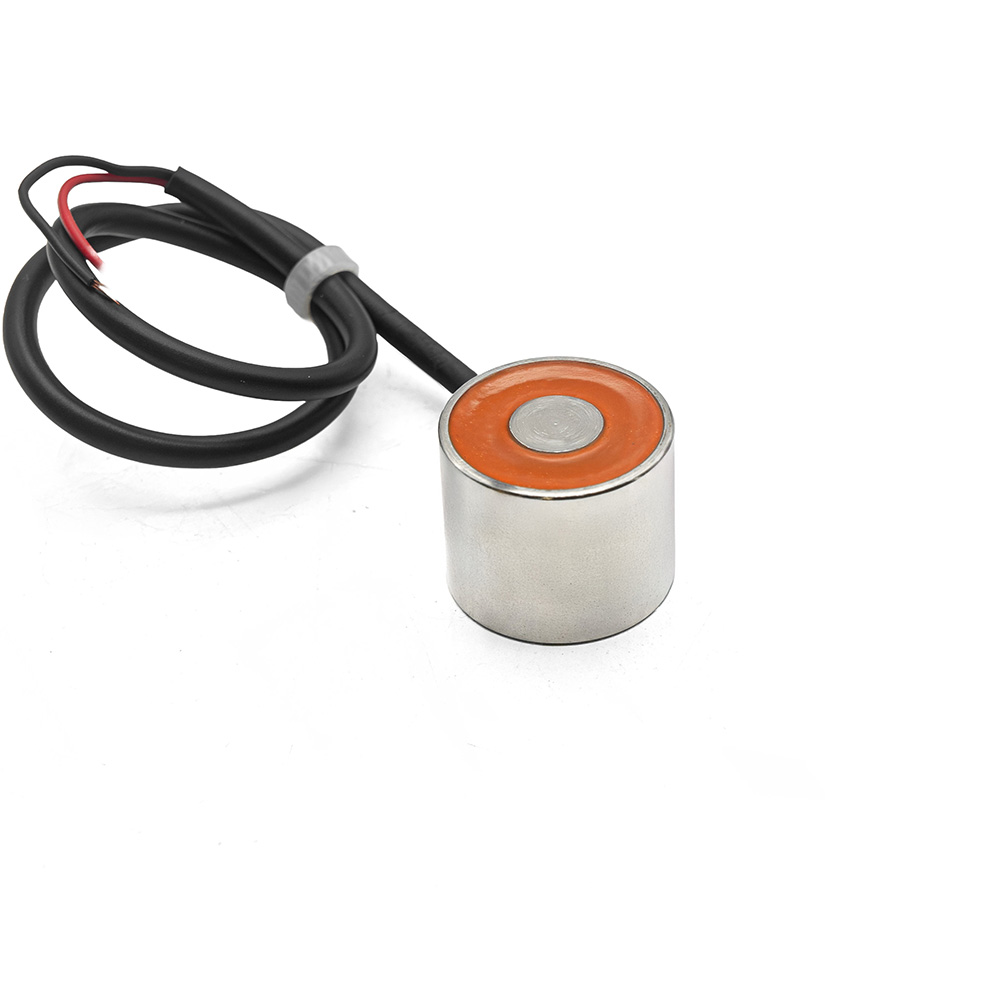

Ø25x20 mm 24V DC Electromagnet – High Holding Force

The TM4BY5NR-24V model electromagnet with a Ø25 mm diameter and 20 mm height is a compact yet powerful magnetic holding solution designed for various industrial and automation applications. Operating at 24V DC, this electromagnet is ideal for use in locking mechanisms, robotic arms, conveyor systems, and precision positioning units.

Thanks to its optimized coil design and durable body, it offers reliable long-term operation in demanding environments. When the power is cut, the magnet releases its hold, offering a safe and controlled response.

Technical Specifications:

• Model Code: TM4BY5NR-24V

• Diameter: Ø25 mm

• Height: 20 mm

• Operating Voltage: 24V DC

• Coil Resistance: Optimized per application

• Body Material: Metal housing with protective coating

• Operating Temperature: Max 70–80°C

• Holding Force: High magnetic pull (depends on surface contact)

• Connection Type: Standard wire terminals or optional cable/socket output

Applications:

• Industrial automation systems

• Electromechanical locking devices

• Robotic grippers and actuators

• Conveyor line sorting mechanisms

• Packaging and material handling units

• Magnetically controlled valves and release systems
