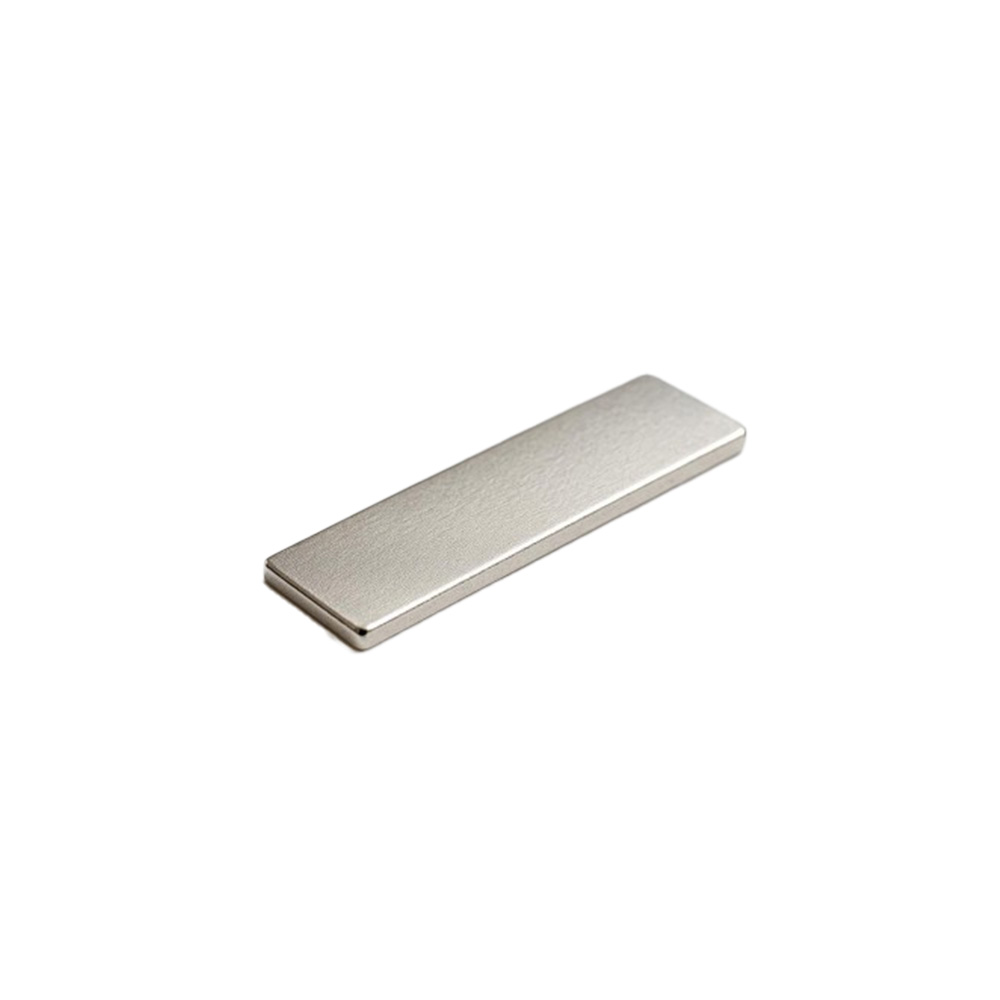

50x10x1.5 mm N35 Neodyum Magnet (Width 50 mm x Length 10 mm x Thickness 1.5 mm)

50x10x1.5 mm N35 Neodymium Magnet
(Width 50 mm × Length 10 mm × Thickness 1.5 mm)

⚙️ Technical Product Information

???? Mechanical Properties

???? Magnetic Properties and Structure

Magnetization direction: Magnetized through the 1.5 mm thickness (height).

Poles: Located on the top and bottom 50 × 10 mm surfaces.

Magnetic Field Lines: Concentrated in the center of the surface and directed toward the edges.

Surface Area: The 50 × 10 mm slim and elongated surface allows precise alignment and linear magnetic contact in compact mounting applications.

Approximate pull force: 1.5 – 2 kgf (when tested on a steel surface – strong holding power despite its thin form).

⚙️ Applications

• Slim-profile magnetic holding systems

• Linear alignment and sensor applications

• CNC, model making, and precision mechanical assemblies

• Magnetic switch, slider, and rail mechanisms

• R&D and compact prototyping projects

⚠️ Warnings and Usage Notes

⚠️ Neodymium magnets are extremely powerful – they can snap to metal surfaces rapidly and may crack.
⚠️ Impact resistance is low, controlled placement is recommended.
⚠️ Magnetic performance decreases above 80 °C.
⚠️ If magnets collide with force, they may crack – wearing gloves is recommended during handling.
⚠️ Keep strictly out of reach of children.
