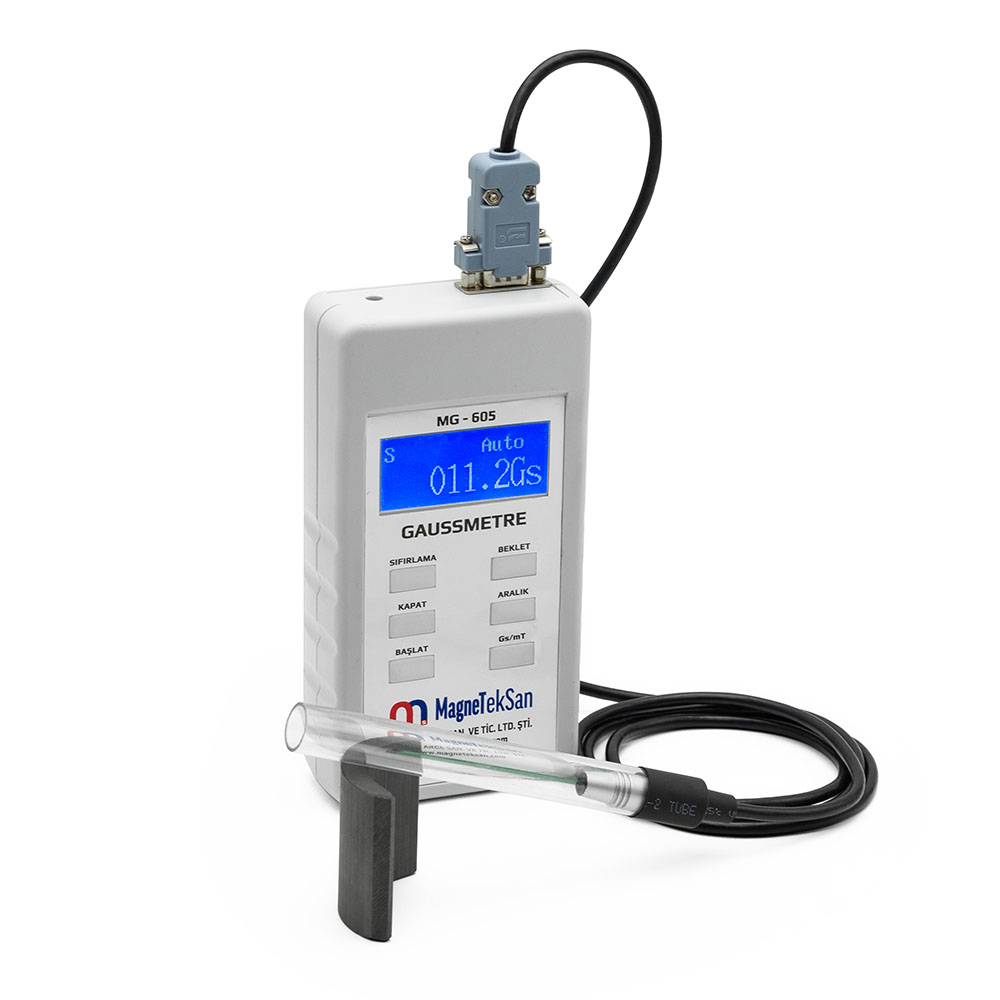

Gaussmeter - Magnet Measuring Device - MG 605

Digital Gaussmeter - Magnetic Field Measuring Device

The Gaussmeter device measures gauss levels on the surfaces of magnets, electromagnets, and other magnetic equipment. With its user-friendly digital display, it provides precise magnetic field measurements. The measurement range extends up to 30,000 Gauss, with three measurement ranges: 30.0mT, 300mT, and 3000mT.

Applications

• DC magnetic field and peak value measurements
• Permanent magnet field distribution measurement
• Magnetization measurement of permanent magnets
• Magnetic field distribution measurement in DC coils
• Air gap magnetic field measurement in DC electromagnets
• Standard DC magnetic field measurement

Technical Specifications

• Rechargeable battery powered
• Measurement range up to 30,000 Gauss (3-tier: 30.0mT, 300mT, 3000mT)
• Accuracy:
  • Below 1% for 1000mT
  • Below 2% for 1000mT-2000mT
  • Below 4% for 2000mT-3000mT
• Automatic power off after 60 seconds
• Minimum magnetic field sensitivity: 0.1mT (1Gs= 1 Gauss)
• Axial (vertical) probe
• Dimensions: 170mm x 90mm x 40mm
• Weight: 450 grams
