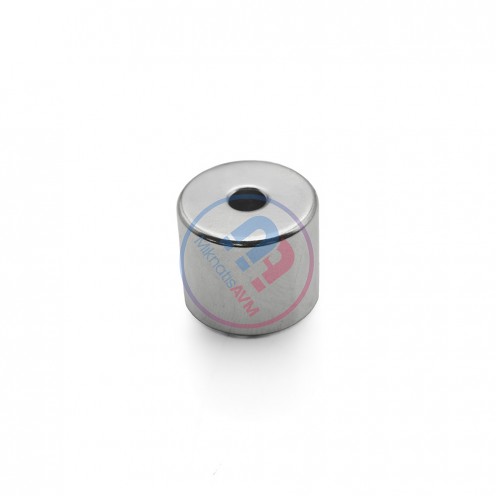

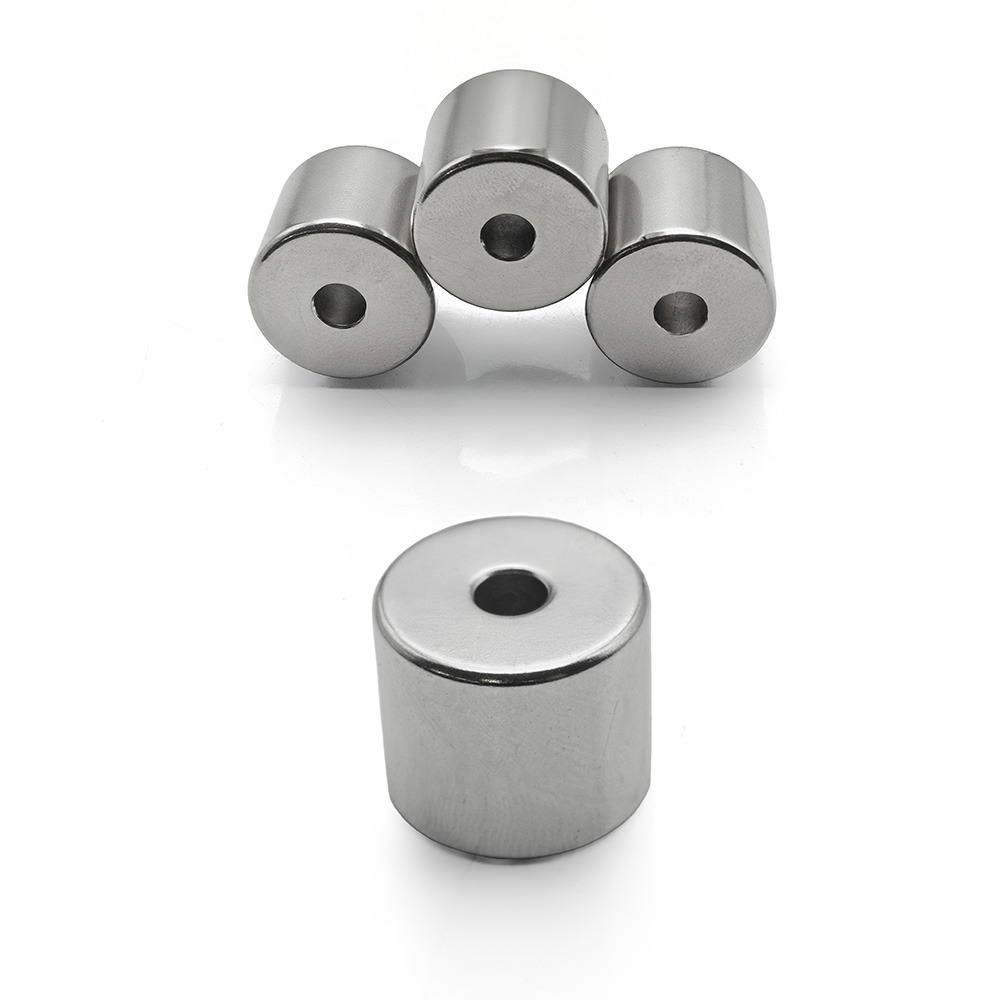

Ø23x6x20 mm N38 Neodymium Magnet – Nickel Coated – Ultra Strong

Ring Neodymium Magnet Ø23xØ6x20 mm N38 – Ultra Strong for Industrial Applications

This high-strength ring neodymium magnet offers a holding force of up to 40 kg. Ideal for special design experiments, DIY tasks, and various lifting or holding applications. With its wide range of usage, it is a reliable solution for industrial and personal projects. This NdFeB magnet has an outer diameter of 23 mm, inner diameter of 6 mm, and a thickness of 20 mm.

Our super strong neodymium magnets feature N38 grade magnetic power, ensuring consistent performance over the years. The nickel coating prevents tarnishing and provides maximum resistance against environmental effects. With the assurance of Magnet AVM, you can purchase all our products with confidence.

Warnings

• Do not pull the magnet directly to detach; slide it instead.
• Be cautious not to pinch your fingers while handling.
• Exercise extreme care when bringing the magnet close to metal surfaces or other magnetic materials.
• Temperatures above 80°C may cause a loss of magnetic strength.
• Keep away from children.
• Do not bring the magnet close to electronic devices.

Magnet Specifications

• Outer Diameter: 23 mm
• Inner Diameter: 6 mm
• Thickness: 20 mm
• Tolerance: ±0.1 mm
• Coating: Nickel (Ni)
• Type: Neodymium (NdFeB)
• Grade: N38
• Max Operating Temperature: 80°C

Certification & Industrial Applications

All our magnets come with Gauss certification and can be delivered with an official certificate upon request (additional charges may apply). We also offer Gauss measurement and certification services for all magnetic systems. Magneteksan manufactures magnetic equipment and magnets for a wide range of industries, including defense, automotive, public sector, food processing, recycling, and mining.
