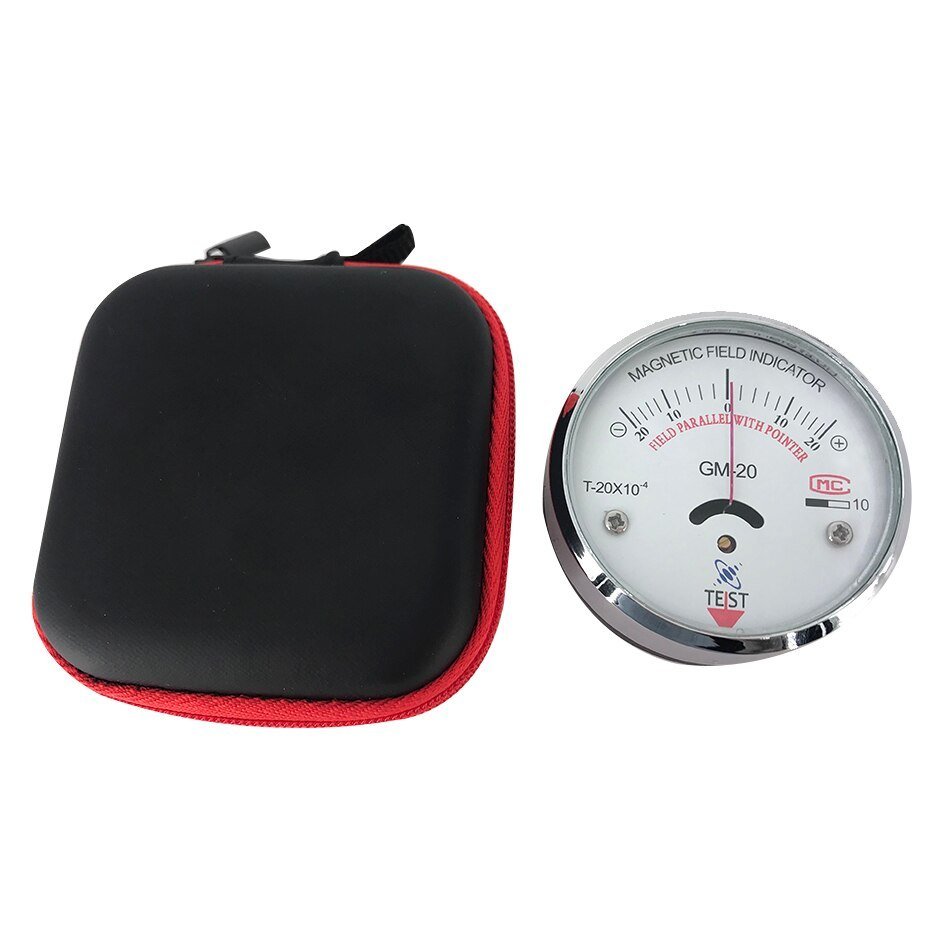

GM-20 Analog Gaussmeter - Magnetic Field Meter

Analog Gaussmeter - Magnetic Field Measuring Device

Gaussmeter is used to measure the amount of gauss on the surfaces of magnets, electromagnets and other magnetic equipment.

The GM-20 magnetometer, gauss meter, directly measures the amount of magnetization during the processing of ferromagnetic materials and components. After the magnetic measuring process, it can also be used for post-demagnetization measurements.

How to Use a Gaussmeter?

This gaussmeter has high sensitivity. Therefore, make measurements by shifting in the east-west direction. There should be no magnetic field in the test environment to avoid errors. During measurement, the gaussmeter is marked with an arrow attached to the object to be tested and moved to either side of the meter. The maximum value measured during the movement gives the amount of gauss on the surface of the object.

Areas of Use

• DC magnetic field and magnetic field peak value measurement

• Permanent magnet magnetic field distribution measurement
• Magnetization measurement of permanent magnets
• Measurement of magnetic field distribution inside a DC coil
• Air gap magnetic field measurement of DC electromagnet
• Normal DC magnetic field measurement

Features

• Magnetic field strength resolution range: 0.1mT (1Gs)

• Dimensions: Diameter 58 mm x 23 mm
• Weight 200g
