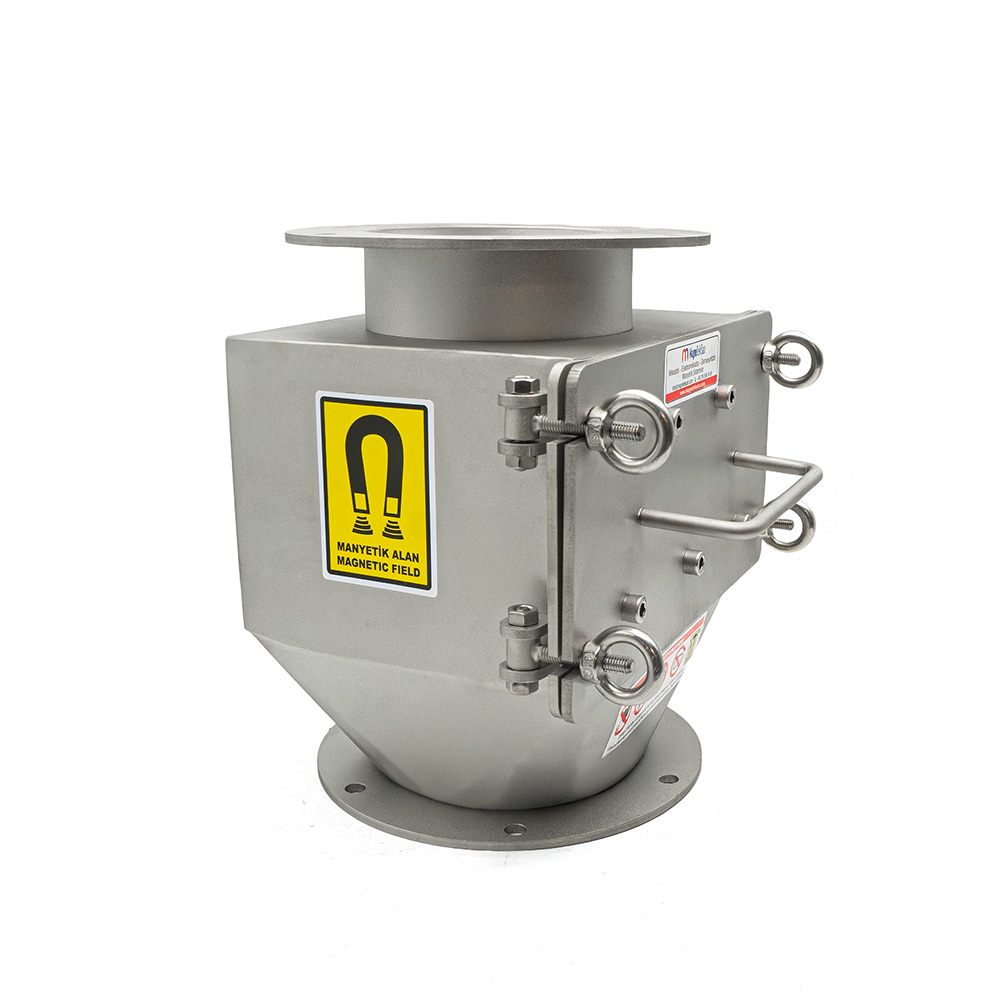

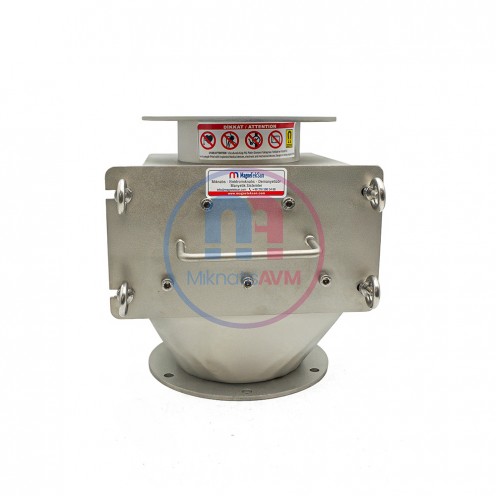

DN100 Flanged Ø25x5 Neodymium Rod Magnetic Drawer Separator with Stainless Steel Body

This high-efficiency magnetic separation system with DN100 flanged inlet and outlet connections is specifically designed to prevent metal contamination in yeast powder production processes. The drawer-type magnetic bars inside the system capture ferrous particles with strong neodymium magnets during product flow, ensuring high product purity and protecting downstream equipment.

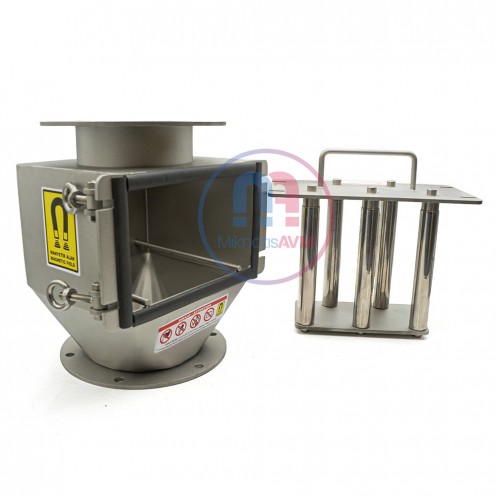

Manufactured from food-grade AISI 304 or AISI 316 stainless steel, the separator complies with all hygiene and safety standards required by the food industry. Its removable drawer design allows for easy cleaning and maintenance, minimizing production downtime.

Technical Specifications:

• Connection Size: DN100 flanged inlet / outlet

• Magnet Type: Drawer-style with high Gauss neodymium rods

• Body Material: AISI 304 / AISI 316 stainless steel

• Magnetization: Multi-pole neodymium – evenly distributed magnetic field

• Application Medium: Powder and granular product lines

• Cleaning: Easy-access drawer system for quick cleaning

• Operating Temperature: Max. 80°C

Application Areas:

• Yeast powder production facilities

• Flour, starch, sugar, and powdered additive lines

• Flavoring and food additive mixing systems

• All food processing lines requiring metal contamination control

• Post-silo discharge, vacuum transfer, and pre-packaging inspection points
