Ø105x60 mm Electromagnet – Top Mounting, Female Threaded, Heavy Duty Industrial Magnet
With installments starting from $0.00!
| Stock | : | In Stock |
| Model | : | MGK-E-63 |
| Category | : | Yuvarlak Elektromıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
Magnet
The Ø105x60 mm 24V DC electromagnet features a top-mounted female-threaded port, providing secure and stable installation for demanding industrial applications. With its large diameter and powerful magnetic holding force, it is ideal for lifting, securing, and positioning heavy metal components in automation and machinery systems.
Typical Applications:
-
Lifting and holding large metal parts
-
Positioning components in CNC, press, and lathe machines
-
Safe gripping in robotic systems
-
Holding and locking in industrial automation lines
-
Covers, doors, and material handling mechanisms
Technical Specifications:
-
Diameter: Ø105 mm
-
Height: 60 mm
-
Operating Voltage: 24V DC
-
Connection Type: Top port with female thread
-
High magnetic force for heavy-duty operations
-
Fast magnetic response with low energy consumption
-
Sealed, corrosion-resistant metal housing

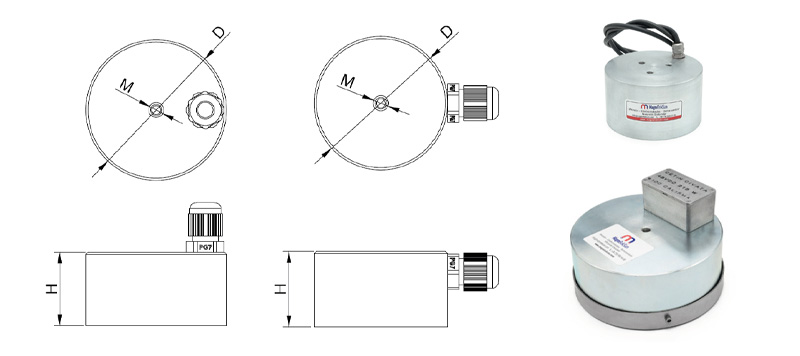

Round Electromagnets Catalog
|
MODEL (BYR5CK/ BUR5CK) |
Dimensions (mm) |
Power WATT |
Voltage VDC |
Duty Cycle % |
Connection POSITION |
Cable Gland PG7-9 |
Min. Plate Thick. (mm) |
Pull Force (N) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| ØD | H | M | ||||||||
| Ø40x30 mm | 40 | 30 | M6 | 5.2 | 24 | 50 | TOP/SIDE | PG7 | 5 | 470 |
| Ø50x30 mm | 50 | 30 | M6 | 7 | 24 | 50 | TOP/SIDE | PG7 | 5 | 760 |
| Ø63x35 mm | 63 | 35 | M6 | 10 | 24 | 50 | TOP/SIDE | PG7 | 8 | 1000 |
| Ø80x40 mm | 80 | 40 | M8 | 15 | 24 | 50 | TOP/SIDE | PG7 | 10 | 2400 |
| Ø100x45 mm | 100 | 45 | M8 | 25 | 24 | 50 | TOP/SIDE | PG7 | 15 | 3400 |
| Ø150x55 mm | 150 | 55 | M16 | 37.2 | 48 | 50 | TOP/SIDE | PG7 | 25 | 9300 |
| Ø180x65 mm | 180 | 60 | M20 | 50 | 48 | 50 | TOP/SIDE | PG7 | 30 | 15000 |
| Ø200x60 mm | 200 | 60 | 3xM12 | 65 | 48 | 50 | TOP/SIDE | PG9 | 35 | 25000 |
| Ø250x80 mm | 250 | 80 | 3xM12 | 90 | 48 | 50 | TOP/SIDE | PG9 | 40 | 30000 |
| Ø280x110 mm | 280 | 110 | 3xM12 | 150 | 48 | 50 | TOP/SIDE | PG9 | 50 | 40000 |
| Ø300x130 mm | 300 | 130 | 3xM12 | 180 | 48 | 50 | TOP/SIDE | PG9 | 80 | 45000 |
