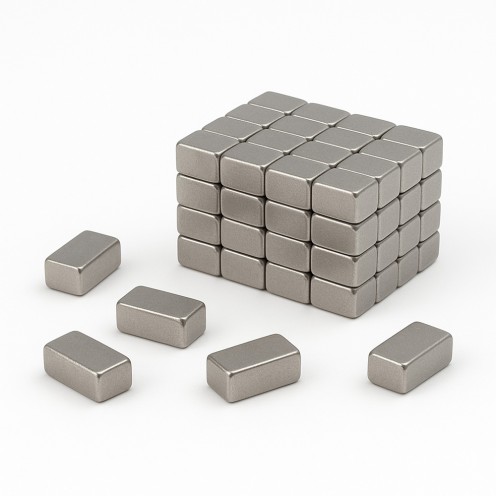

10x5x5 mm N35 Neodyum Magnet (Width 10 mm x Length 5 mm x Thickness 5 mm)

⚙️ Technical Product Information

✅ Product Name: N35 Neodymium Magnet – Rectangular Type
✅ Dimensions: 10 mm (Width) x 5 mm (Length) x 5 mm (Thickness)
✅ Shape: Rectangular
✅ Material: NdFeB (Neodymium – Iron – Boron)
✅ Grade: N35
✅ Coating: Nickel (Ni-Cu-Ni) Triple-Layer Protection
✅ Magnetic Pole Orientation: Face to Face
✅ Magnetic Flux Density (Br): 11.7 – 12.2 kGs
✅ Coercive Force (HcB): ≥ 10.8 kOe
✅ Maximum Energy Product (BHmax): 35 MGOe
✅ Density: 7.5 g/cm³
✅ Maximum Operating Temperature: 80°C
✅ Corrosion Resistance: Medium (protected with nickel coating)

???? Mechanical Properties

???? Magnetic Properties

Magnetization direction: Along the thickness (5 mm).

The poles are located on the rectangular faces (front and back).

Magnetic field lines are concentrated at the center of the surface.

Despite its small volume, it produces a high holding force (approximately 900–1000 gf surface pull force, tested on a steel surface).

⚙️ Applications

• Precision electronic component fastening systems

• Micro motor and sensor applications

• Optical and medical device components

• Hobby, R&D, and prototyping projects

• As a holding element in micro-mechanical systems

⚠️ Warnings and Usage Notes

⚠️ Neodymium magnets are very brittle; they may crack under impact, shock, or compression.
⚠️ Magnetic performance may decrease above 80°C.
⚠️ Magnets can snap together or hit metal surfaces quickly — it is recommended to work with protective gloves.
