Ø150x200 mm Bullet Magnet Core

Neodymium Bullet Magnet Technical Specifications

For the Neodymium Bullet Magnet, which is one of the core products of our magnetic separator group, you can place an order only for the core. It can also be custom-manufactured in tailored lengths upon request. With its aerodynamic design and high-quality stainless steel structure, our entirely in-house produced bullet magnets are widely utilized for the purification of food products, serving as highly efficient separators in flour mills and soda factories. Designed to ensure uninterrupted material flow, this system prevents clogging; conversely, the flowing materials bounce off the magnetic core towards the outer walls, optimizing the separation process.

Installation and Cleaning Procedures

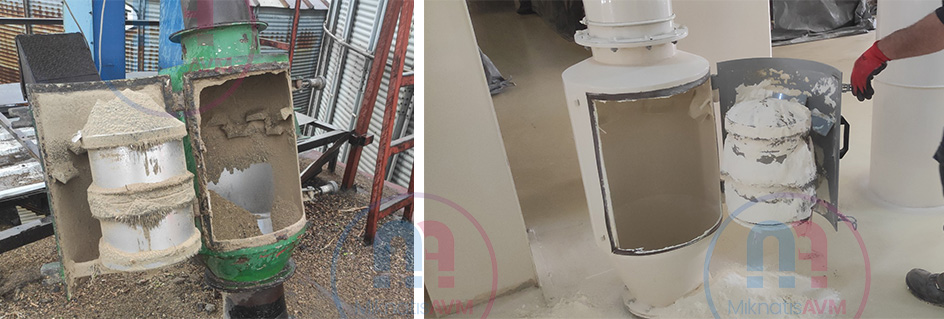

Thanks to its flanged structure, the bullet-type magnet is installed between two pipeline sections so that the magnetic core stands perfectly vertical relative to the product stream. Both the housing of the magnetic separator and the magnetic core are constructed entirely from stainless steel materials. When the magnetic core captures accumulated ferrous dust and particles, cleaning is performed manually by simply opening the inspection door. Thanks to the integrated distributor cone located on the bullet body, the incoming product flows homogeneously over the magnetic core surface.

Bullet magnets can be equipped with extremely powerful Neodymium-Iron-Boron (NdFeB) alloy or Strontium Ferrite magnets. Internal guide deflectors ensure that the bulk material is directed as close to the magnet surface as possible. This configuration guarantees that the entire volume of the product passes directly through the intensive magnetic field, making optimal contact with the magnet.

Primary Applications

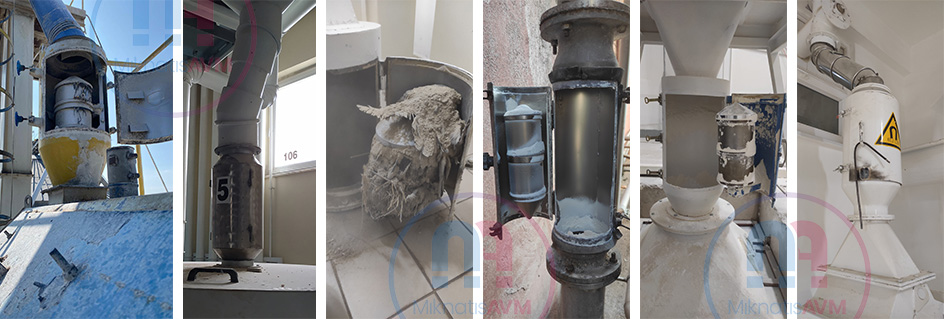

This is the most frequently preferred type among industrial magnets to ensure your products are thoroughly cleaned of tramp iron and metal contaminants. It is ideal for granular and powder materials across various industries, including:

• Flour mills and food production facilities
• Sugar and legume processing plants
• Plastic granule production and recycling
• Chemical and mineral processing operations
• Ceramic and glass manufacturing sectors
• Recycling facilities
• Powder and bulk material handling lines

Custom production is fully supported to meet your specific dimensional requirements.

Food-Grade Compliance with Gauss Measurement Reports

As an authorized and competent organization in the industrial magnet sector, our company manufactures certified food-safe magnets for clients worldwide. We are fully authorized to perform Gauss measurements and provide official magnet compliance certificates for all food production companies. Produced with BRC and HACCP food compliance certification, these magnetic grates do not harm food products and are delivered fully documented, ready for your quality control audits.

Technical Details

• Minimum Catchable Iron (Fe) Particle Size: 0.03 mm
• Housing Material Grade: AISI 304 / AISI 316 Quality Stainless Steel
• Magnet Surface Finish: Mirror Polished
• Housing Surface Options: Polished, Sandblasted, or Painted
• Sealing / Leak-proof: Yes
• Full Stainless Steel Construction: Yes
• Cleaning Method: Manually Cleanable
• Magnetic Field Strength: 3,000 – 8,000 Gauss (Neodymium or Ferrite)
• Manufacturing Tolerance: ±3 mm

Additional Specifications

The bullet magnets manufactured by our company offer versatile, multi-purpose solutions tailored to diverse engineering applications. Our product range can be supplied as complete bullet separator systems, independent magnetic cores, or magnetic inserts compatible with plastic injection moulding processes. Furthermore, customized bullet designs can be engineered by our team. All bullet magnets are fully optimized to ensure maximum performance and reliable magnetic separation. Please contact us for specialized solutions tailored to your unique technical needs.

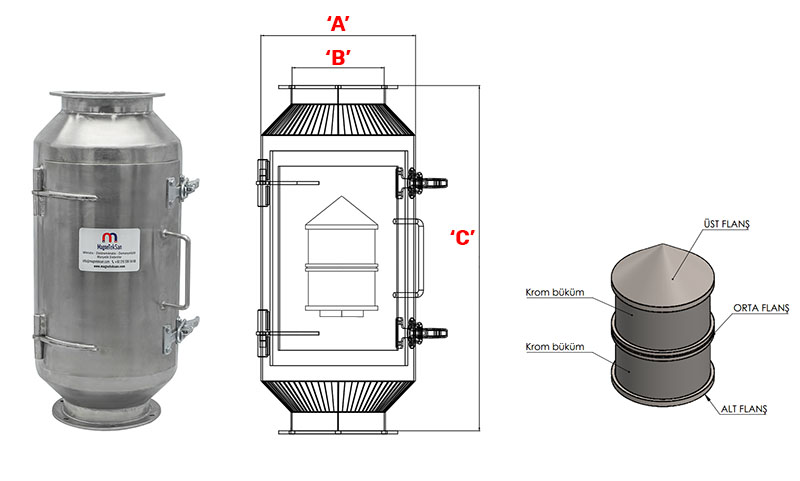

Bullet Magnet Standard Dimensions

While bullet magnets used in industrial sectors are manufactured in the standard sizes listed below, you can always contact our sales team to request a quote for custom-dimensioned designs.
