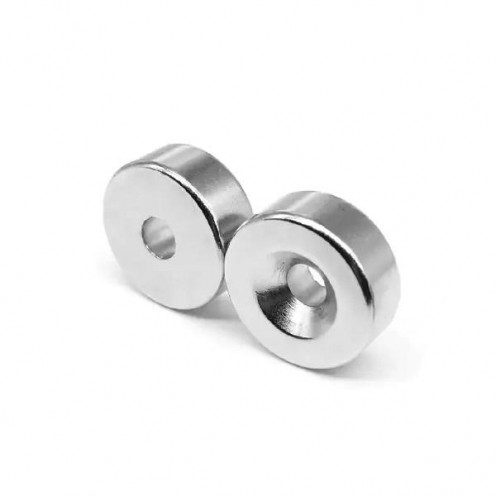

Ø15x10/5.5x5mm Neodymium Magnet with Countersunk Hole

Countersunk Neodymium Magnet - Easy Mounting on Wood, Plastic, Concrete - D15x10/5.5x5mm

This specialized 15mm diameter countersunk neodymium magnet features a 10/5.5mm inner diameter. Designed for versatile mounting applications, this powerful magnet allows for screw or bolt installation, making it ideal for securing to non-metallic surfaces such as wood, plastic, and concrete.

Technical Specifications:

• Outer Diameter: 15 mm
• Inner Diameter: 10/5.5 mm
• Thickness: 5 mm
• Tolerance: ± 0.1 mm
• Magnet Type: Neodymium
• Grade: N35
• Maximum Operating Temperature: 80°C
• Coating: Nickel/Zinc
• Pull Force: 1-3 kg

Installation Features:

• Compatible with standard screws and bolts
• Suitable for non-metallic surfaces
• Easy mounting system
• Professional-grade construction

Safety Notice:

Important: Exercise caution during installation. Over-tightening screws may result in magnet breakage. Please follow proper installation guidelines to ensure optimal performance and longevity.

Certification

Our magnets come with Gauss certification, available upon request for an additional fee. Magneteksan provides comprehensive Gauss measurement and certification services across various industries, from defense to automotive, public sector to food companies, and recycling to mining operations.
