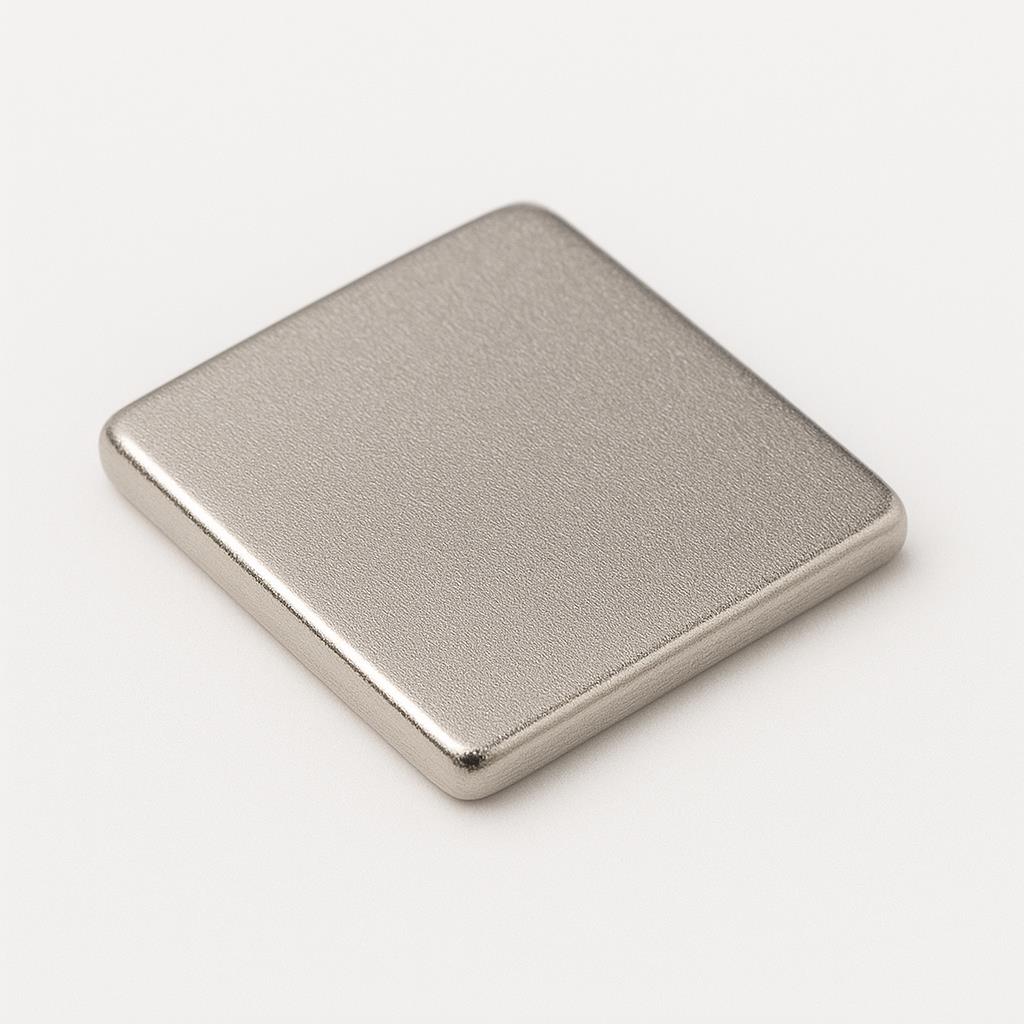

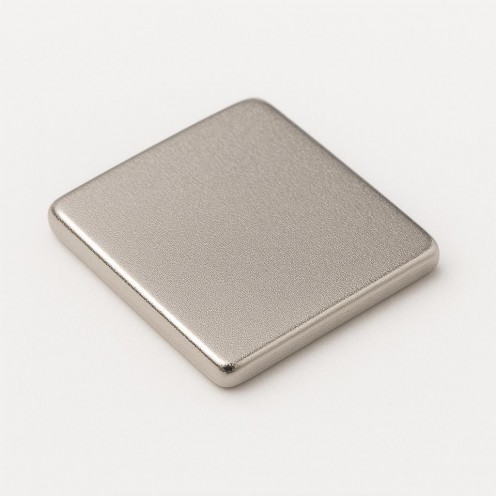

15x15x2 mm N35 Neodyum Magnet (Width 15 mm x Length 15 mm x Thickness 2 mm)

⚙️ Technical Product Information
✅ Product Name: N35 Neodymium Magnet – Rectangular Type
✅ Dimensions: 15 mm (Width) × 15 mm (Length) × 2 mm (Thickness)
✅ Shape: Rectangle
✅ Material: NdFeB (Neodymium – Iron – Boron)
✅ Grade: N35
✅ Coating: Nickel (Ni-Cu-Ni) Triple Layer Protection
✅ Magnetic Pole Orientation: Surface to Surface
✅ Magnetic Flux Density (Br): 11.7 – 12.2 kGs
✅ Coercive Force (HcB): ≥ 10.8 kOe
✅ Maximum Energy Product (BHmax): 35 MGOe
✅ Density: 7.5 g/cm³
✅ Maximum Operating Temperature: 80 °C
✅ Corrosion Resistance: Medium (protected with nickel coating)

???? Mechanical Properties

???? Magnetic Properties
Magnetization direction: Along the thickness (2 mm) axis.

Poles are located on the rectangular surfaces (front and back).

Magnetic field lines concentrate at the center of the surface.

The 15 × 15 mm large surface area provides high magnetic flux density.

Generates approximately 1,300 – 1,500 gf of surface pull force (tested on a steel surface).

⚙️ Applications

• Electronic circuit and sensor applications

• Mechanical prototyping and R&D studies

• Model making and hobby projects

• Medical and optical device components

• Magnetic holding or alignment systems

⚠️ Warnings and Usage Notes
⚠️ Neodymium magnets are very brittle; they may crack under impact, shock, or compression.
⚠️ Magnetic performance may decrease above 80 °C.
⚠️ Magnets can snap together or to metal surfaces quickly — it is recommended to work with protective gloves.
