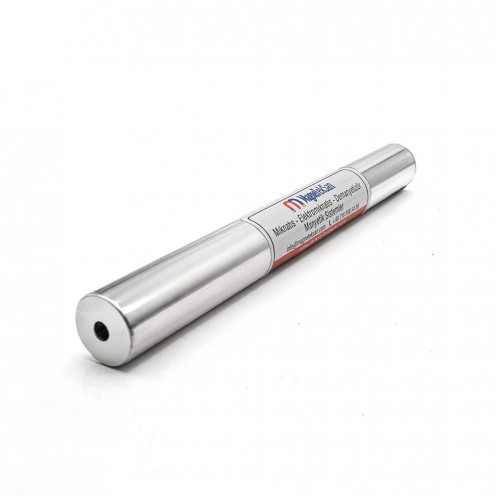

Ø16x150 mm Neodymium magnet bar
With installments starting from 173.54 TL!
- Stock: In Stock
- Model: MGK-CU-190
- Category: Dişi Bağlantılı Çubuk Mıknatıslar
Stock | : | In Stock |
Model | : | MGK-CU-190 |
Category | : | Dişi Bağlantılı Çubuk Mıknatıslar |
Ø16x150 mm Neodymium magnet bar
Ø16x150 mm Neodymium magnet bar
6000 Gauss Neodymium Magnetic Bar Magnet
This neodymium magnetic bar, with a diameter of 16 mm and a length of 150 mm, provides a magnetic pull strength of 6000 Gauss. If you need a stronger magnetic force, you can filter through the categories to find the right product. Our magnetic rod magnets are used to remove metal particles and dust from your products, helping to extend the lifespan of your machines. Made from stainless steel, these products are easy to install and can be safely used in the food industry. They are manufactured from food-grade materials, and the strong neodymium magnets ensure even the smallest metal particles are easily captured. Compared to ferrite-ceramic magnets, our neodymium magnetic rods offer 5 times more magnetic pull strength and are resistant to corrosion.
Magnetic Rod Magnet with Gauss Measurement Report – Food Grade
- Produced with BRC and HACCP certification, these magnetic separators are designed not to harm food products and maintain their magnetic strength for many years. Neodymium magnetic sieves, mounted at product discharge points, provide highly efficient cleaning.
- These magnets are coated with stainless steel, using AISI 304 and AISI 316 steel preferred by food production companies, ensuring high resistance to corrosion.
- These high-Gauss magnets are manufactured in our own facilities. Upon request, drawer-style neodymium magnetic sieves that can operate at higher temperatures (standard 80°C, maximum 250°C) can also be produced.
Specifications
Dimensions | |
Diameter | 16 mm |
Length | 126-150 mm |
Connection | |
Connection Diameter | 6 mm |
Connection Length | 10 mm |
Connection Type | Female |
Magnet Properties | |
Coating | None |
Color | Gray |
Gaussian Value | 6000-7000 Gaussian |
Grade | N35 |
Magnet Attraction Distance | 0-5 cm |
Magnet Type | Neodymium (NdFeB) |
Max. Operating Temperature | 80°C |
Shape | Cylinder |
Strenght | 25-50 kg |
Tolerance | ± 0,1 mm |
Material Properties | |
Coating | Stainless |
Color | Gray |
Complete Stainless | Yes |
External Material Feature | Steel |
Sealing | Yes |
Tolerance | ± 0,1 mm |
Exterior Material Quality | 304 Quality Stainless |
