Ø20x25 mm Deep and Strong Cylindrical Pot Magnet
Ø20x25 mm Deep and Strong Cylindrical Pot Magnet
$0.00
With installments starting from $0.00!
| Stock | : | In Stock |
| Model | : | MGK-DS6 |
| Category | : | Neodyum Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
3 days in delivery!
Delivery by 21 August 2026 Friday at the latest.
WhatsApp Support

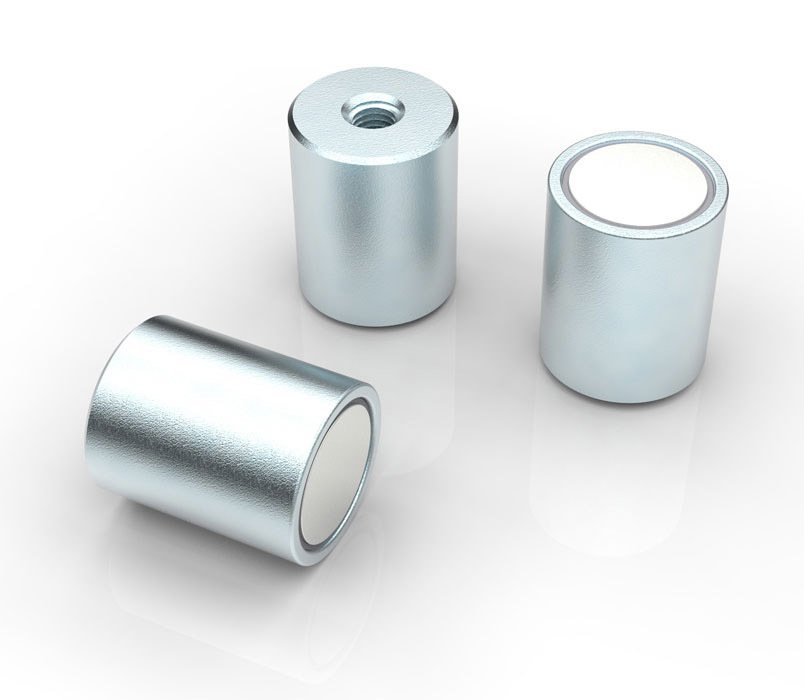

20x25 mm Cylindrical Pot Magnet with Female Bolt Connection
This bolt-on product is produced in the following catalog dimensions. However, you can contact us for your special size requests. We meet all your wholesale magnet needs.
Neodymium magnets have a very high attraction power unlike other magnets and are therefore preferred by many companies. Pot magnet types are made more durable by coating with different materials depending on the area to be used. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type suitable for your needs.
The coatings of the pot magnets we produce do not tarnish and fall off
Female Threaded Neodymium Pot Magnets (Type F)
You can find the product's technical drawing and standard catalogue dimensions in the table below. Please contact us for custom-size production.
|
MODEL (DN8CCY) |
Dimensions (mm) |
Pull Force (kg) |
|||
|---|---|---|---|---|---|
| ØD | h | M | LM | ||
| Ø10x12 | 10 | 12 | M3 | 5 | 3 kg |
| Ø16x13 | 16 | 13 | M4 | 6 | 5.5 kg |
| Ø20x15 | 20 | 15 | M4 | 6 | 9 kg |
| Ø25x17 | 25 | 17 | M5 | 7 | 22 kg |
| Ø32x18 | 32 | 18 | M6 | 8 | 34 kg |
| Ø36x18 | 36 | 18 | M6 | 8 | 41 kg |
| Ø42x22 | 42 | 22 | M8 | 10 | 68 kg |
| Ø48x23 | 48 | 22 | M8 | 10 | 81 kg |
| Ø60x28 | 60 | 28 | M8 | 10 | 113 kg |
| Ø75x35 | 75 | 35 | M10 | 12 | 164 kg |
