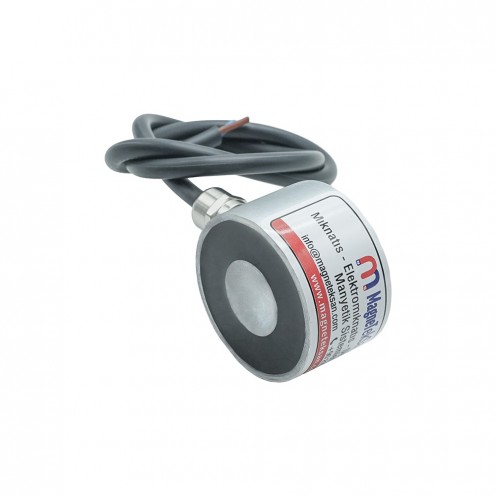

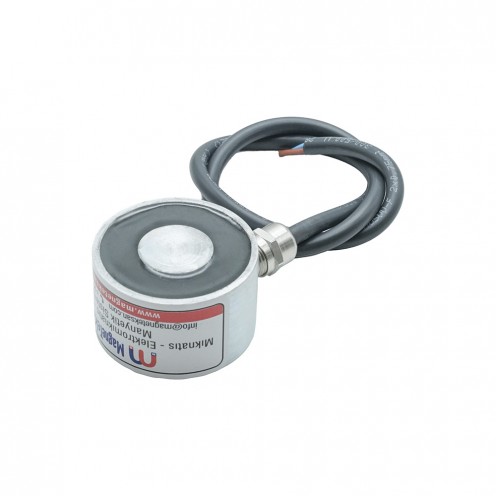

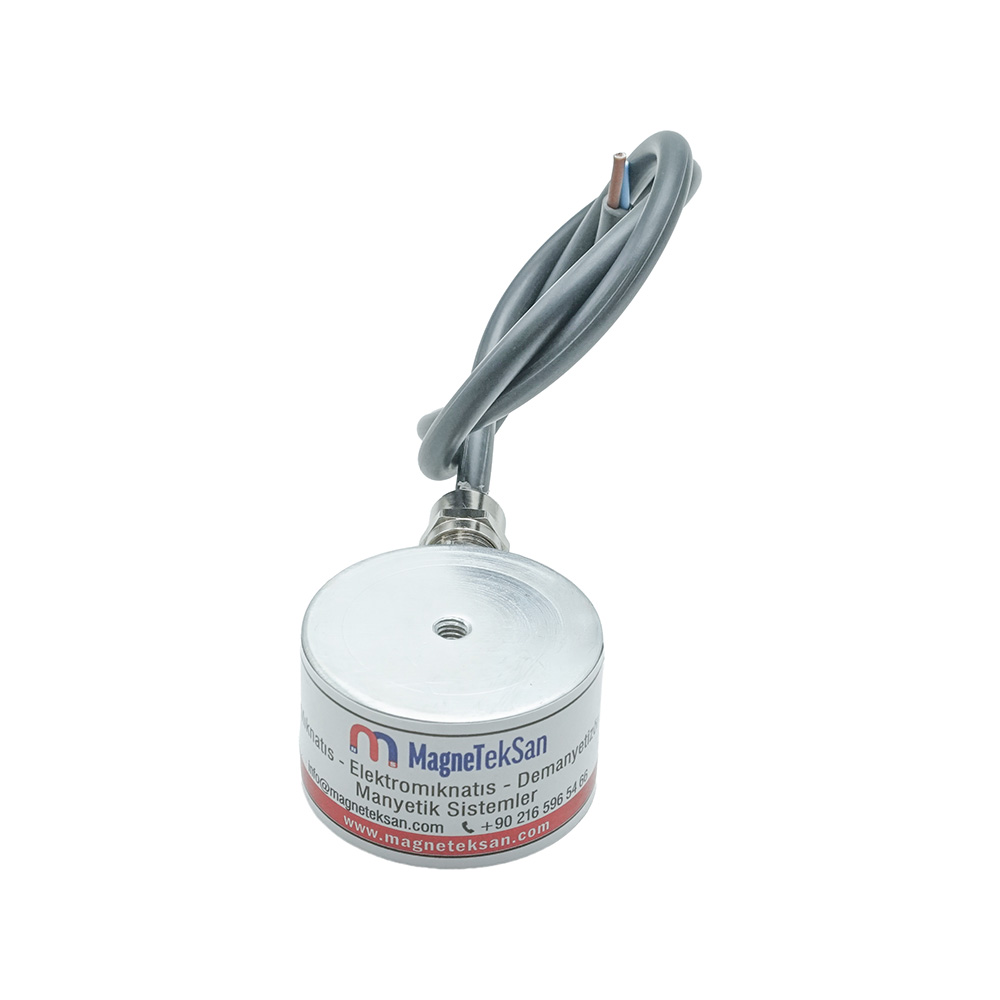

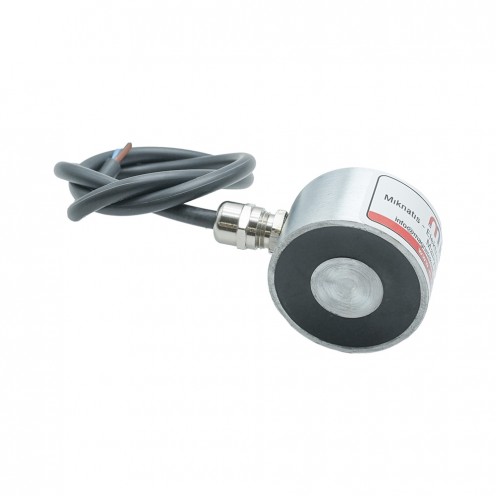

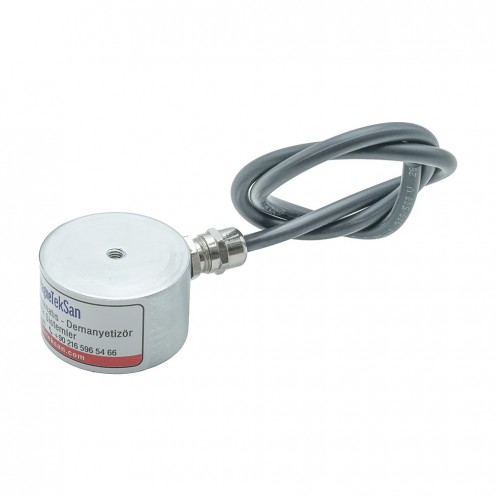

24V Ø50x30 mm Electromagnet with M6 Thread – For CNC & Automation

Electromagnet for CNC and Automation Systems as an Alternative to Screw-Clamps Ø50x30 mm

These electromagnets used for transportation purposes, with dimensions of Ø50x30 mm (50 mm diameter, 30 mm height), can carry materials weighing up to 50 kg. It is frequently preferred in applications such as CNC machines, robotic systems, automation lines, and parts handling, as well as services like cap handling, pipe handling, and box handling. The outer protection of our product can be made of 304-grade stainless steel or zinc coating. Thanks to its M6 female connection, it offers easy installation, while its flat surface provides maximum grip.

Compatible with Industrial Automation and Robots

The electromagnet is fully compatible with robotic gripping and releasing systems and can operate 100% synchronously with electronic robots and automated handling arms. It is manufactured to the specific voltage/current values required for your custom systems. Please contact us for the manufacture of electromagnets with values suitable for the surface area and weight of the parts to be handled. Please contact us to receive a quote tailored to your specific usage purpose.

Performance Warning

The power values ​​were determined under ideal conditions. To obtain the maximum efficiency from the magnet, the requirements are as follows:

• The contact surface must be smooth.
• The contact surface must be clean.
• The contact surface must be smooth/regular.
• The drawn material must have a thick cross-section
• The drawn material must be low-alloy carbon steel

In real-world usage scenarios, if the above requirements are not met, the pulling force may decrease significantly. For example, the greater the air gap between the electromagnet and the material being pulled, or the presence of dirt or rust, the more the pulling force will decrease.

What is the Business Cycle? Its Importance for Electromagnets

Ø50x30 mm Electromagnet is designed to work uninterruptedly in 50% duty cycle at 24V operating voltage. That is, during product operation, the working and resting periods must be kept equal; it must be restarted after resting for the same duration as it was operated. This value has been determined taking into account the thermal characteristics and limits of the coil.

At 12V operating voltage, the magnet is suitable for full-time operation (100% duty cycle) and continuous operation. However, in this configuration, the power consumption on the coil decreases, and consequently, the magnetic pulling force will also decrease compared to the 24V value. To determine the pulling force and duration your application will require, you can contact our technical team.

Technical Specifications

• Number of connections: 1
• Coil material: Copper
• Operating voltage: 12V
• Cable position: Top
• Terminal block box: None
• Operating period: 100%
• Operating temperature: Max. 150°C
• External material property: Steel
• External material coating: Zinc
• Insulation: Resin
• Sealing: Yes
• Control panel: No
• Tolerance: +-3 mm
