Ø300x130 mm Ammunition Transportation Electromagnet
Share:
Ø300x130 mm Ammunition Transportation Electromagnet
0.00 TL
With installments starting from 0.00 TL!
- Stock: Sadece Teklif
- Model: MGK-E-300130
- Category: Yuvarlak Elektromıknatıslar
Stock | : | Sadece Teklif |
Model | : | MGK-E-300130 |
Category | : | Yuvarlak Elektromıknatıslar |
Product Added to Cart
Ø300x130 mm Ammunition Transportation Electromagnet
If you have questions about the product, you can contact our team before purchasing.
Product Added to Wishlist
Ø300x130 mm Ammunition Transportation Electromagnet
The product has been saved to your list so you can access it later. You can turn the product into an order at any time by going to the favorites area. Have fun shopping.
- Electromagnet for robot hand project
- Electromagnet for automation projects
- Customized electromagnet
- Electromagnet for carrying welding electrode
- Electromagnet for welding robot
- Bolt handling electromagnet
- Scrap electromagnet
- Rebar handling electromagnet
- Profile transport electromagnet
- Sheet metal handling electromagnet
- Nail handling electromagnet
- Steel block transportation electromagnet
Special Electromagnet for Ammunition Handling - Full Time Operation

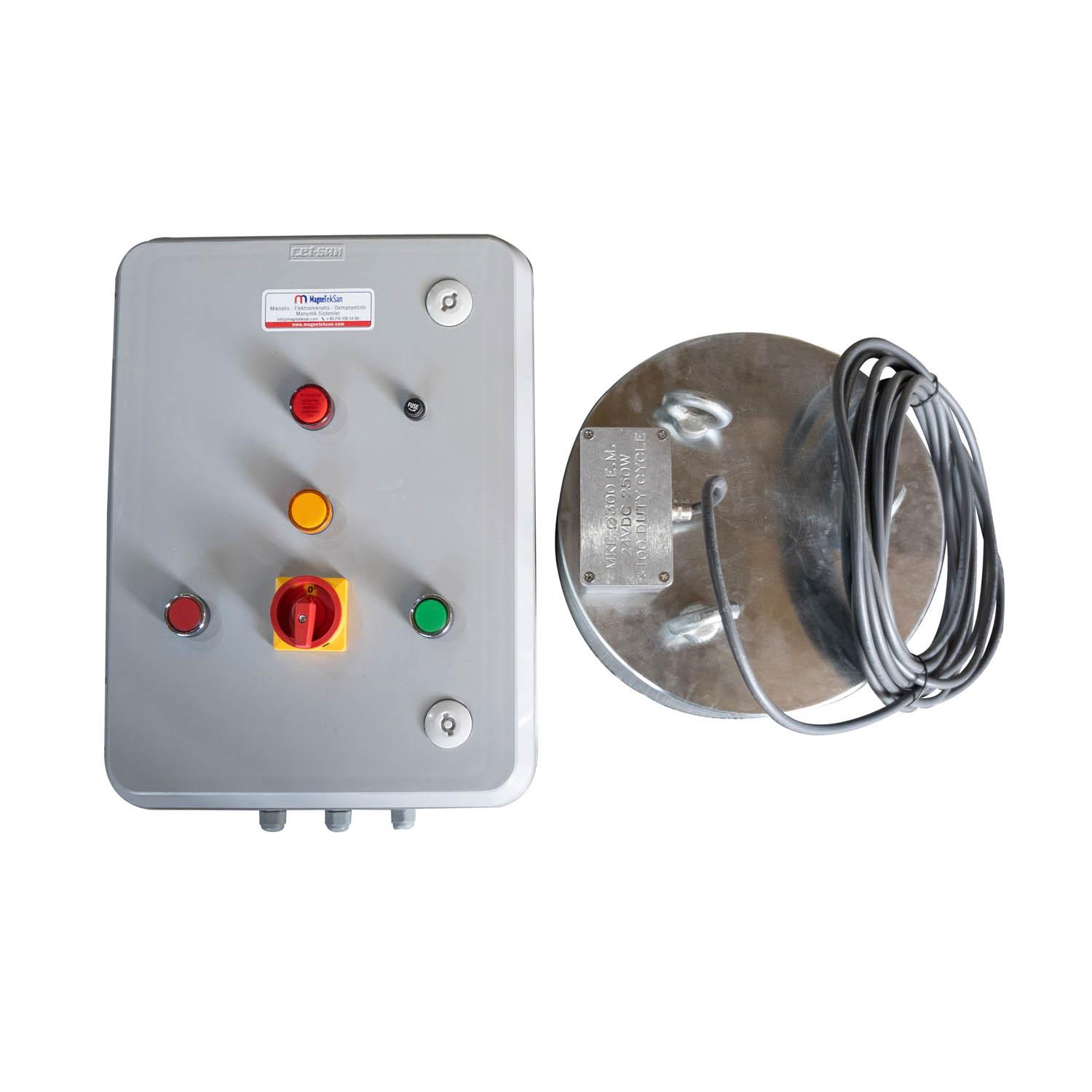

The ammunition transport magnet you are looking at is 30 cm in diameter and 13 cm in height and has a very high attraction power. Our ammunition magnet is our own production and has full-time working feature. You can contact us for your special size requests. Such high-power electromagnets are also frequently preferred for heavy and high-volume services such as lid handling, pipe handling, box handling.
This electromagnet, which we specially produce for ammunition projects, is used to drop ammunition from certain levels and perform explosion tests. The electromagnet spreads its gravitational force by acting on a wider surface thanks to the counter plate underneath. With this magnet, ammunition is raised to a certain height and released to perform explosion tests.
Ammunition Transportation Electromagnet Dimensions:
Diameter: 30 cm
Height 13 cm
Electromagnet Usage Areas:
These magnets we produce can be used for the following purposes:
Specifications
Dimensions | |
Diameter | 251-500 mm |
Height | 101-250 mm |
Connection | |
Connection Diameter | 10 mm |
Connection Length | 12 mm |
Connection Type | Female |
Magnet Properties | |
Coating | Zinc (Zn) |
Color | Gray |
Gaussian Value | 12000-14000 Gaussian |
Magnet Type | Electric |
Max. Operating Temperature | 100°C |
Shape | Round |
Strenght | 5000 kg + |
Tolerance | ± 0,1 mm |
Material Properties | |
Complete Stainless | Yes |
External Material Feature | Steel |
Sealing | Yes |
Exterior Material Quality | 304 Quality Stainless |
