Ø31.5 mm Diameter Countersunk Ferrite Magnet – Ø31.5x11.5/5.5x15 mm

Ø31.5 mm Diameter Countersunk Ferrite Magnet – Ø31.5x11.5/5.5x15 mm

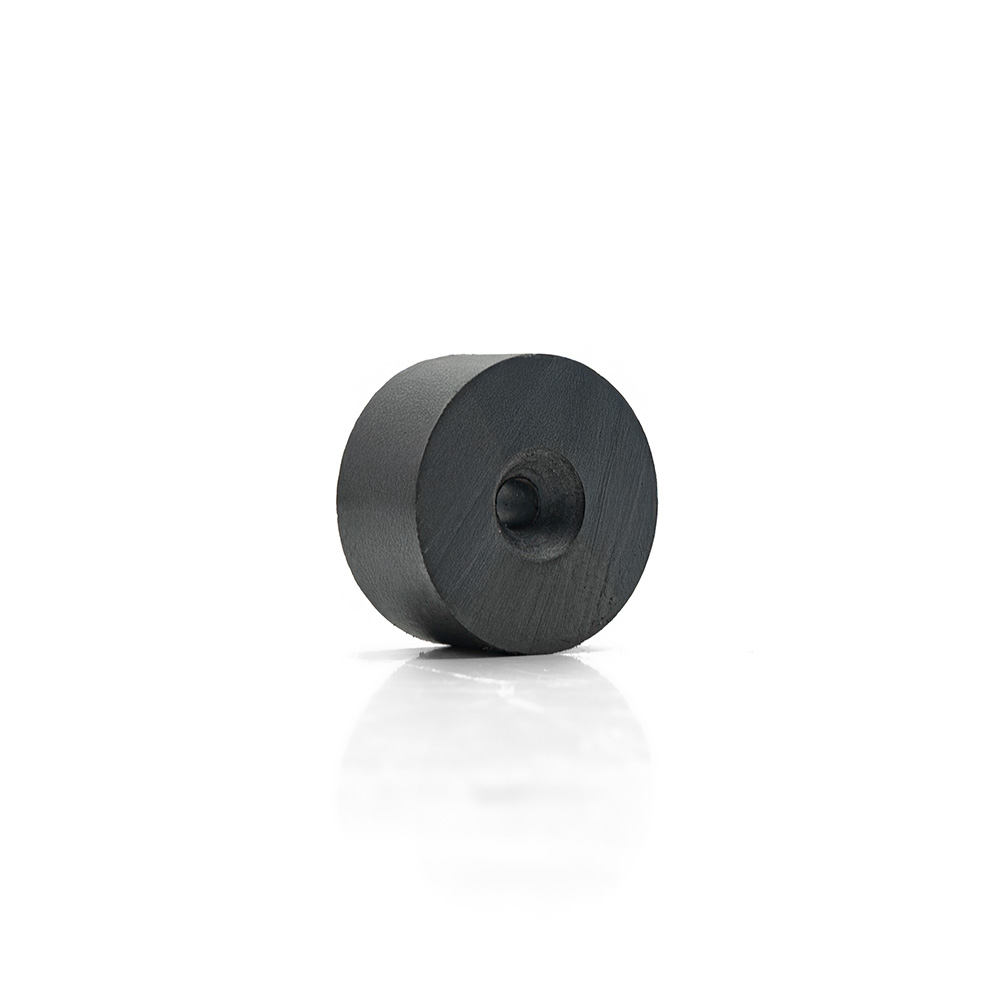

This countersunk ferrite magnet is manufactured with ferrite material instead of nickel coating, featuring a Ø31.5 mm outer diameter, 11.5 mm thickness, and a 5.5x15 mm internal countersunk hole. The central countersunk hole allows for easy mounting with a screw or bolt onto non-metallic surfaces such as wood, plastic, or concrete.

Ferrite magnets offer lower magnetic strength compared to neodymium magnets, but they are more durable against breakage and can withstand higher temperatures. They are ideal for a wide range of applications, from hobby projects to industrial uses.

Note: Over-tightening the screw may cause the magnet to break. Please ensure proper torque is applied during installation.

Product Features:

• Outer Diameter: Ø31.5 mm

• Thickness: 11.5 mm

• Inner Hole (Countersunk): 5.5x15 mm

• Magnet Type: Ferrite – Durable and long-lasting

• Applications: Mounting onto non-metallic surfaces such as wood, plastic, and concrete

• Coating: Ferrite (rust-resistant)

• Operating Temperature: Max. 220°C

Additional Information:

All our magnets are compatible with Gauss certification, which can be provided upon request for an additional fee.
Magneteksan manufactures specialized magnets and magnetic systems for various industries, including defense, automotive, public sector, food processing, recycling, and mining.
