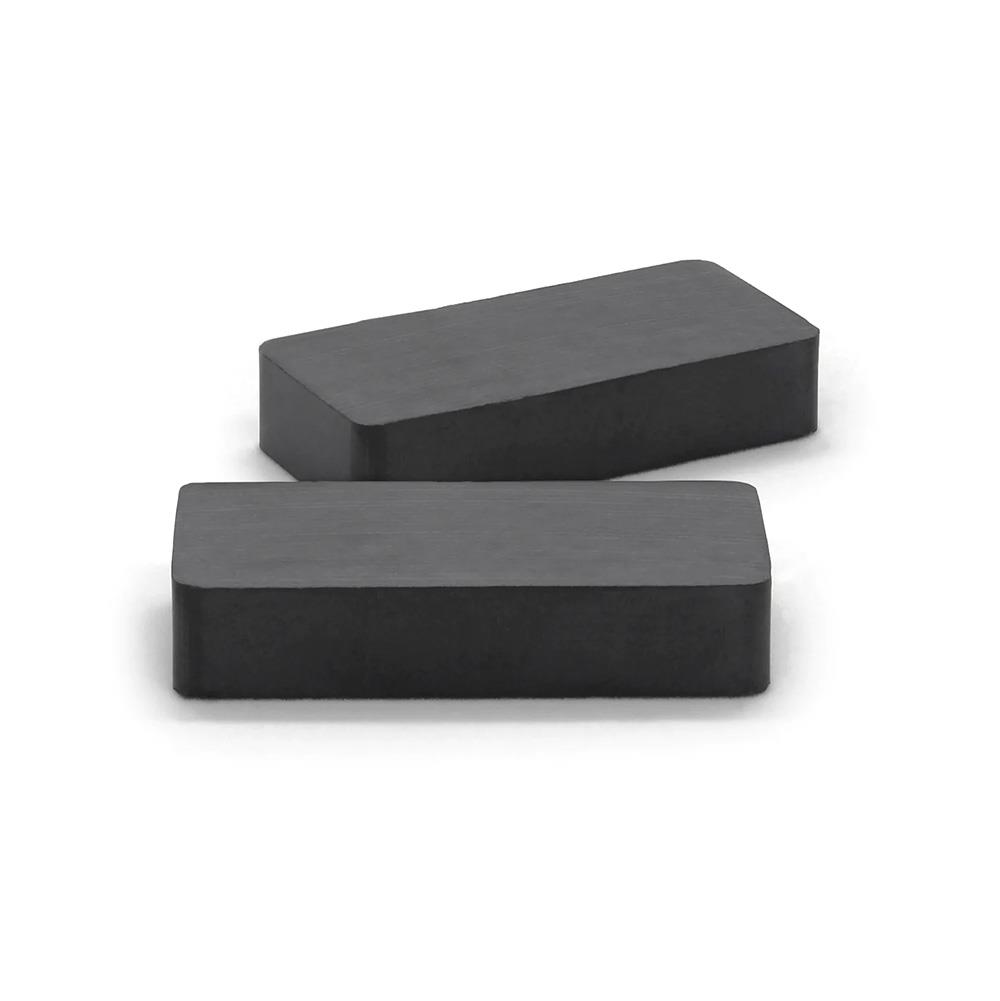

35x15x10 mm Oxide Ceramic (Ferrite) Magnet

35x15x10 mm Y35 Ferrite - Ceramic (Coal) Magnet

This rectangular ferrite magnet, measuring 3.5 cm (35 mm) in length and 1.5 cm (15 mm) in width, provides a pulling force of 1-3 kg. Ceramic magnets, also known as oxide magnets (300 oxide), are composed of iron oxide, barium, or strontium elements. These heat-resistant ceramic processing magnets can withstand temperatures up to 220°C.

While economical, the 35x15x10 mm ferrite magnet offers lower pulling force compared to neodymium magnets. Y35 grade oxide magnets feature thicker coating and better environmental resistance than Y30 grade magnets with weaker exterior coating. For quality-conscious applications, this magnet should be your preferred choice.

Technical Specifications

• Width: 35 mm (3.5 cm)
• Length: 15 mm (1.5 cm)
• Thickness: 10 mm (1 cm)
• Tolerance: ± 0.2 mm
• Pull force: 1-3 kg
• Coating: Ceramic
• Magnet Type: Ferrite
• Grade: Y35
• Operating Temperature: Max 220°C

Certification

Our magnets come with Gauss certification, available upon request for an additional fee. We provide comprehensive Gauss measurement and certification services across all magnetic systems. Our company manufactures magnetic equipment and magnets for various industries, from defense to automotive, public sector to food companies, recycling to mining operations.
