Ø38x7,2 mm Y35 Ferrite Pot Magnet

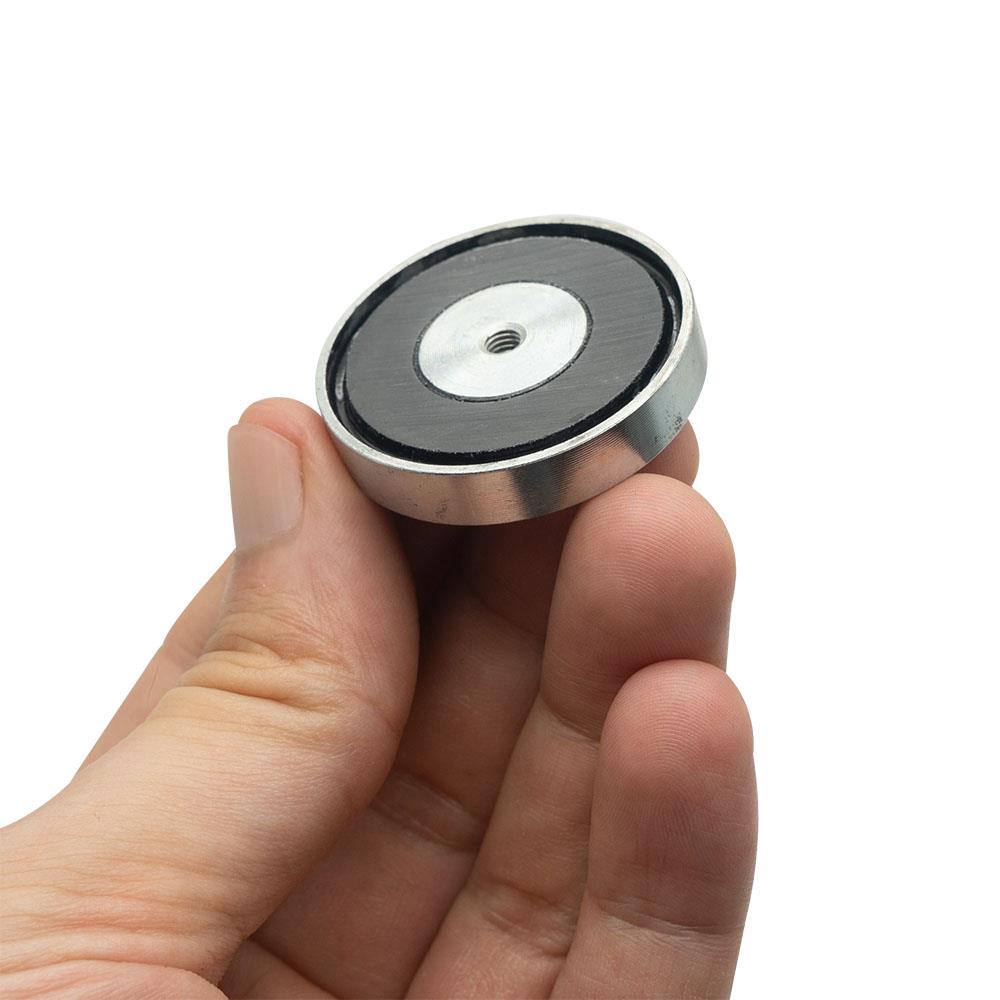

38x7 mm M4 Ferrite Pot Magnet with Female Hole

With 38 mm outer diameter, 4 mm inner diameter and 7.2 mm thickness, our ferrite pot magnets with female bolt connection can be produced in the sizes you request. Please contact us for different sizes. In addition to our wholesale magnet sales, we also have our own production.

Ferrite magnets, also known as ceramic magnets, are permanent magnets made of a ceramic material composed of iron oxide and one or more metals. They are economical to produce, have good corrosion resistance and can be used over a wide temperature range. They are often used in motors, loudspeakers and other electronic devices.

Compared to neodymium magnets, ferrite magnets have lower magnetic strength. However, ferrite magnets are not as brittle as neodymium and can be used over a wider temperature range. Cylinder, square, rectangular, ring and various special shapes are available. Standard maximum temperature resistance is 220 °C.

The coatings of the pot magnets we produce do not tarnish and do not throw off.

Pot Magnet Manufacturing with Female - Male Connection

Our company manufactures pot magnets and offers solutions suitable for neodymium, ferrite and various connection types. For example

• Male connection,

• Female connection,
• Imbus connected,
• Countersunk hole,
• With internal threaded stud

We produce in special connection types such as.

For your bulk orders, we manufacture Y35 quality ferrite pot magnets with higher attraction power instead of Y30. You can contact us for more information about grades.

Wholesale Magnet Sale

Contact us to buy bulk magnets. Istanbul wholesale magnet prices are more advantageous for large quantity purchases. We offer shipping to all over Turkey. Contact us for the highest quality and strongest wholesale ferrite magnet prices. We are Turkey's magnet center.

Magnet Specifications:

• Diameter: 37 mm

• Thickness: 7.2 mm
• Inner Diameter M4x7 mm
• Tolerance: ± 0.1 mm
• Power: 0-5 kg
• Coating Ceramic
• Magnet Type: Ferrite
• Operating Temperature: Maximum 220°C
• Quality: Y35
