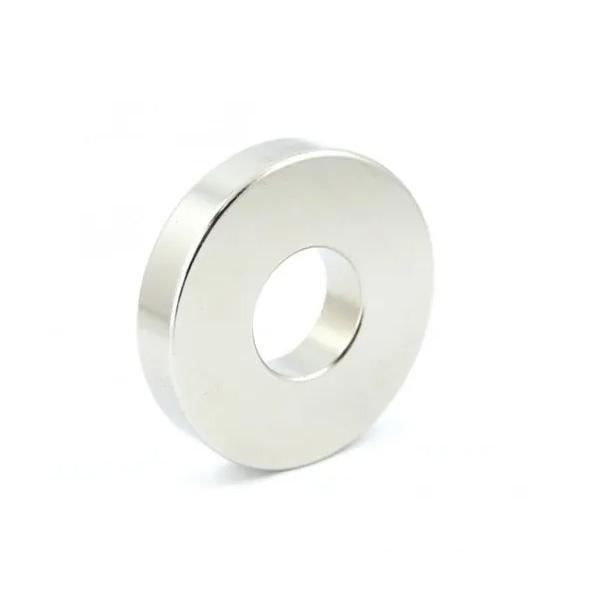

Ø40x22x8 mm Ring Neodymium Magnet
With installments starting from 22.85 TL!
- Stock: In Stock
- Model: MGK-NED-31
- Category: Normal Delikli Neodyum Mıknatıslar
Stock | : | In Stock |
Model | : | MGK-NED-31 |
Category | : | Normal Delikli Neodyum Mıknatıslar |
Quantity | Pack Price | Unit Price | |
---|---|---|---|
5 Quantity | 1,480.50 TL | 296.10 TL | |
Stok Yok! | 10 Quantity | 2,796.50 TL | 279.65 TL |
Please contact us for larger quantities.
Ø40x22x8 mm Ring Neodymium Magnet
Ø40x22x8 mm Ring Neodymium Magnet
40 mm Diameter Ring Neodymium Magnet
This ring neodymium magnet, with dimensions of 40x22x8 mm and an inner diameter of 22 mm, has a unique design. NdFeB neodymium magnets are known as permanent and rare-earth magnets and are among the strongest types of magnets available. With a thickness of 8 mm, it provides a high pulling force. It should be kept away from children and electronic devices. Avoid colliding magnets with each other, as they can break.
Neodymium magnets are strong but also very brittle. If two strong magnets collide, the likelihood of breaking is high. During use, it is recommended to separate the magnets by pushing rather than pulling. Be careful not to pinch your fingers. These neodymium magnets, being some of the strongest in nature, maintain their magnetic strength for a long time. However, they should be protected from temperatures above 80 degrees Celsius, as higher temperatures can cause them to lose their magnetic field.
Information: Our magnets are Gauss certified and can be sent with a certificate for an additional fee upon request. Our company provides Gauss measurement and certification services for all magnetic systems. Magneteksan produces magnetic equipment and magnets for various industries, from defense to automotive, public sector to food companies, and from recycling to mining.
Specifications
Dimensions | |
Diameter | 40 mm |
Height | 8 mm |
Inner Diameter | 22 mm |
Connection | |
Connection Type | Normal Hole |
Magnet Properties | |
Coating | Nickel (Ni) |
Color | Gray |
Gaussian Value | 3000-4000 Gaussian |
Grade | N35 |
Magnet Attraction Distance | 0-5 cm |
Magnet Type | Neodymium (NdFeB) |
Max. Operating Temperature | 80°C |
Shape | Ring (Holey) |
Strenght | 15-25 kg |
Tolerance | ± 0,1 mm |
