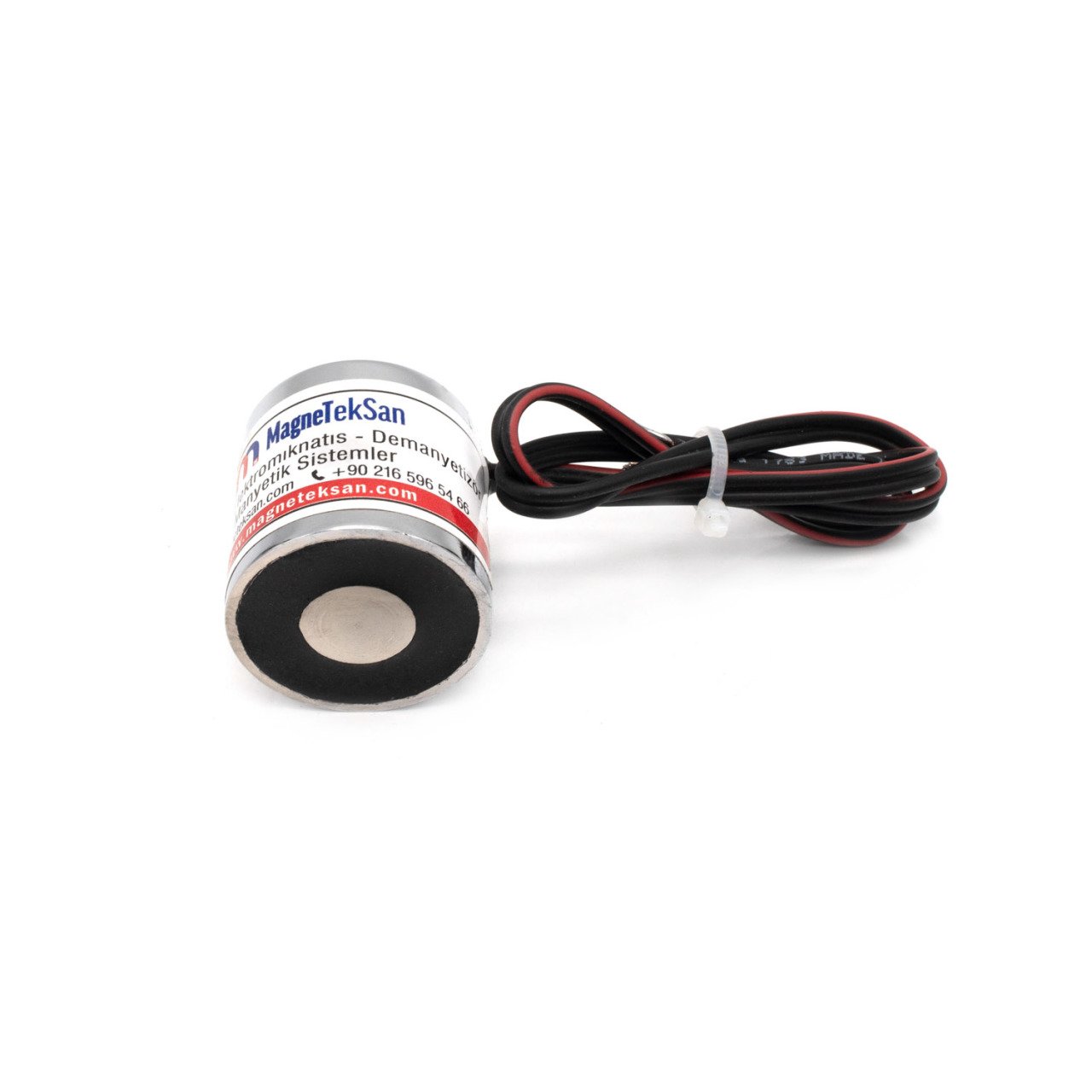

Ø40x40 mm Electromagnet - 24V, Part Time - 12V Full Time
With installments starting from 111.04 TL!
- Stock: In Stock
- Model: MGK-E-4040
- Category: Yuvarlak Elektromıknatıslar
Stock | : | In Stock |
Model | : | MGK-E-4040 |
Category | : | Yuvarlak Elektromıknatıslar |
Ø40x40 mm Electromagnet - 24V, Part Time - 12V Full Time
Ø40x40 mm Electromagnet - 24V, Part Time - 12V Full Time
Compact Power: Ø40x40 mm Waterproof Electromagnet This innovative Ø40x40 mm electromagnet is revolutionizing industrial lifting operations. With an impressive lifting capacity of 40 kg, it excels in handling lids, pipes, and boxes. Versatility is key with this product, as it precisely performs sample lifting and releasing operations in testing equipment. It's also favored for sheet metal handling tasks. Key Features: • Waterproof design • DC 5V, 12V, and 24V voltage options • Customizable dimensions • Long lifespan of 500,000 uses • Operating temperature range from -10°C to 100°C Despite its compact size, it offers high magnetic force, enhancing efficiency in industrial applications. We offer custom production options for various size and power requirements. For detailed information, you can review our product catalog to compare technical specifications and performance data of our electromagnets in various sizes.
Model | A (mm) | B (mm) | Strength (kgs) | Energy (W) | Thickness(mm) | Weight(g) |
MGK-E-4040 | 40 | 40 | 25 | 4,8 | 5.0 | 300 |
MGK-E-4530 | 45 | 30 | 30 | 4,8 | 5.0 | 287 |
MGK-E-5030 | 50 | 30 | 35 | 6.0 | 6.0 | 331 |
MGK-E-5050 | 50 | 50 | 40 | 9,6 | 5.0 | 580 |
MGK-E-6060 | 60 | 60 | 50 | 17,1 | 6.0 | 1000 |
MGK-E-6330 | 63 | 30 | 45 | 17,1 | 8.0 | 550 |
MGK-E-7035 | 70 | 35 | 60 | 9,6 | 10.0 | 800 |
MGK-E-7045 | 70 | 45 | 70 | 15.0 | 10.0 | 1000 |
MGK-E-7060 | 70 | 60 | 75 | 21,3 | 8.0 | 1360 |
MGK-E-8038 | 80 | 38 | 65 | 15.0 | 10.0 | 1120 |
MGK-E-8055 | 80 | 55 | 75 | 14,4 | 12.0 | 1620 |
MGK-E-8060 | 80 | 60 | 80 | 23,5 | 10.0 | 1780 |
MGK-E-9060 | 90 | 60 | 95 | 14,4 | 12.0 | 2250 |
MGK-E-10043 | 100 | 43 | 105 | 21.0 | 15.0 | 2000 |
MGK-E-10060 | 100 | 60 | 125 | 38.0 | 12.0 | 2780 |
MGK-E-12060 | 120 | 60 | 190 | 41.3 | 15.0 | 4000 |
MGK-E-15056 | 150 | 56 | 250 | 37.0 | 25.0 | 5800 |
MGK-E-18063 | 180 | 63 | 350 | 50.0 | 30.0 | 9500 |
MGK-E-20060 | 200 | 60 | 500 | 70.0 | 35.0 | 12000 |
MGK-E-25080 | 250 | 80 | 750 | 90.0 | 40.0 | 23000 |
MGK-E-275110 | 275 | 110 | 1000 | 140.0 |
Specifications
Dimensions | |
Diameter | 40 mm |
Height | 40 mm |
Magnet Properties | |
Coating | Zinc (Zn) |
Color | Gray |
Gaussian Value | 7000-8000 Gaussian |
Magnet Attraction Distance | 0-5 cm |
Magnet Type | Electric |
Max. Operating Temperature | 100°C |
Shape | Round |
Strenght | 15-25 kg |
Tolerance | ± 0,1 mm |
Material Properties | |
Complete Stainless | Yes |
External Material Feature | Steel |
Sealing | Yes |
Exterior Material Quality | 304 Quality Stainless |
