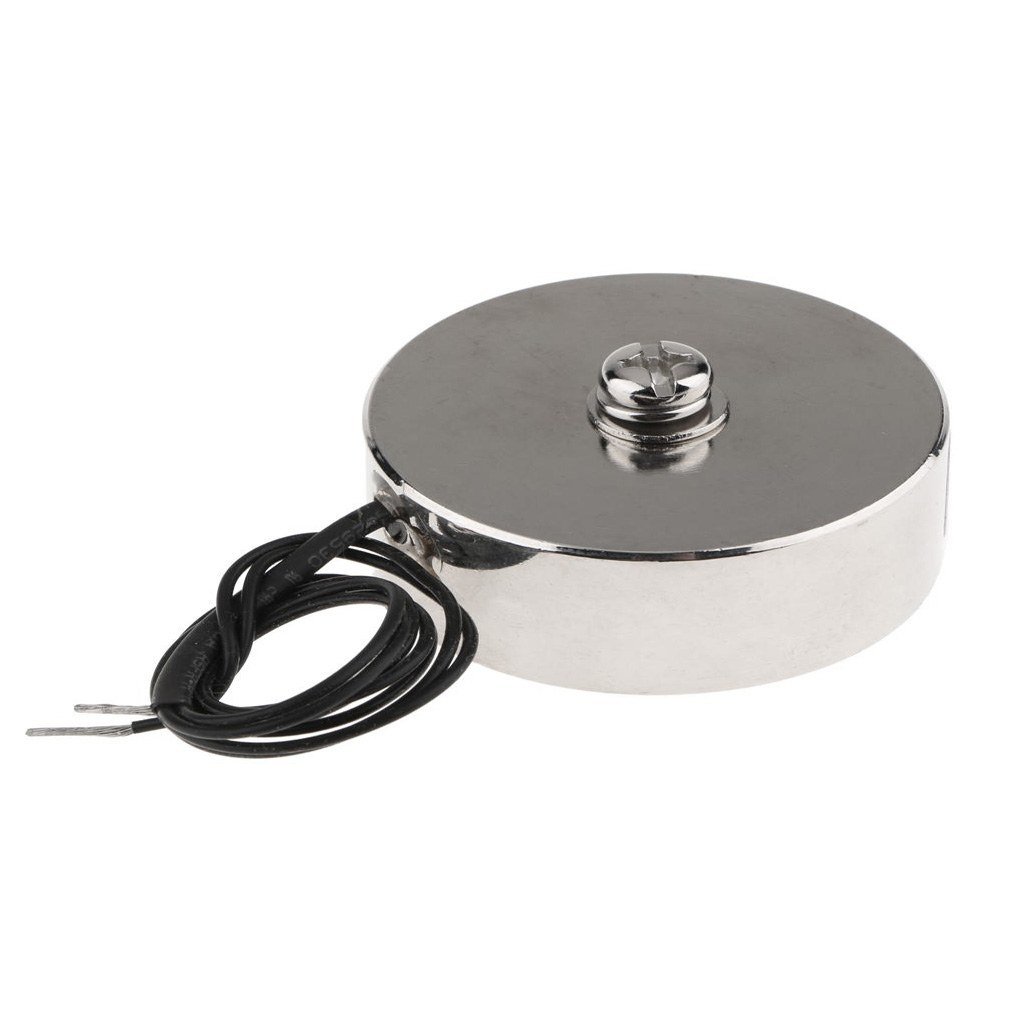

Ø80x38 mm Electromagnet - 65 kg Pull Force

Electromagnet Istanbul; Ø80x38 mm

Our company manufactures electromagnets in Istanbul. These P80/38 (80 mm in diameter, 38 mm in height) electromagnets are used for transportation purposes and are frequently preferred in lid, pipe and box transportation services.

Electromagnets produced by our company Istanbul Elektromagnet differ according to their usage areas. Electromagnets, which have similar properties with magnets such as magnetization and energization, are electrical products. Depending on the voltage current, the magnetization level changes. Our company makes mass production in this field in Istanbul. Thanks to the electromagnets used today, many transportation services are easily performed. These products are also preferred in production and distribution lines.

Products used with these devices have the ability to receive different commands. It is also frequently seen in sheet metal transportation processes. Our electromagnets are also widely preferred in automation projects such as grinding and cutting. Despite their small structure, their attraction force is quite high. Our electromagnets, which are waterproof, have different voltage levels. It is usually found in the range of 5V, 12V and 24V. Our products can be prepared in desired sizes and dimensions in line with the demands of our customers. It has the power to operate up to a maximum temperature of 100 degrees. Our customers can get detailed information on our website or by contacting us.

Dimensions Strong Electromagnet

In the table below, you can examine the attraction power, weight information, etc. of electromagnets of different sizes.

Model	A (mm)	B (mm)	Strength (kgs)	Watt (W)	Thickness (mm)	Weight(g)
MGK-E-4040	40	40	25	4,8	5.0	300
MGK-E-4530	45	30	30	4,8	5.0	287
MGK-E-5030	50	30	35	6.0	6.0	331
MGK-E-5050	50	50	40	9,6	5.0	580
MGK-E-6060	60	60	50	17,1	6.0	1000
MGK-E-6330	63	30	45	17,1	8.0	550
MGK-E-7035	70	35	60	9,6	10.0	800
MGK-E-7045	70	45	70	15.0	10.0	1000
MGK-E-7060	70	60	75	21,3	8.0	1360
MGK-E-8038	80	38	65	15.0	10.0	1120
MGK-E-8055	80	55	75	14,4	12.0	1620
MGK-E-8060	80	60	80	23,5	10.0	1780
MGK-E-9060	90	60	95	14,4	12.0	2250
MGK-E-10043	100	43	105	Write a review Your Name Your Review Rating Continue Dimensions Diameter 80 mm Height 38 mm Magnet Properties Coating Zinc (Zn) Color2 Gray Gaussian Value 7000-8000 Gaussian Magnet Attraction Distance 5-10 cm Shape Round Strenght 50-75 kg Tolerance ± 0,1 mm Max. Operating Temperature 100°C Magnet Type Electric Material Properties Complete Stainless2 Yes External Material Feature2 Steel Exterior Material Quality 304 Quality Stainless Sealing Yes Ø100x43 mm 24V Electromagnet - M8 Connected, Side-Threaded Cable Output, Powerful Industrial Type Electromagnet The Ø100×43 mm 24V DC electromagnet with M8 threaded connection and side gland cable exit is designed for heavy-duty industrial applications. Its resi.. $0.00 Request Quote Ø105x60 mm Electromagnet – Top Mounting, Female Threaded, Heavy Duty Industrial Magnet MagnetThe Ø105x60 mm 24V DC electromagnet features a top-mounted female-threaded port, providing secure and stable installation for demanding industri.. $0.00 Request Quote Ø130x80 mm Electromagnet with Upper Union and Female Connection Ø130x80 mm Büyük ve Güçlü Elektromıknatıs Özellikleri Ø130x80 mm (130 mm çapında, 80 mm yüksekliğinde) boyutundaki taşıma amaçlı kullanılan .. $247.50 Wholesale Price: $185.63 0% OFF Ø190x35 mm 24V Electromagnet – Powerful Industrial Electromagnet with M12 Connection The Ø190×35 mm 24V DC electromagnet is a high-power industrial magnet designed for demanding applications requiring strong magnetic force and reliable.. $0.00 Request Quote Ø190x35 mm Powerful Electromagnet "Ø190x35 Top-Mounted, High-Power Electromagnet Ø190x35 mm in size, these electromagnets used for transportation purposes up to max 250 kg are often pr.. $250.00 Wholesale Price: $187.50 × Ürün Sepetinizde Ürün hakkında aklınıza takılan sorular varsa satın almadan önce ekibimizle iletişime geçebilirsiniz. SEPETE GİT DEVAM
