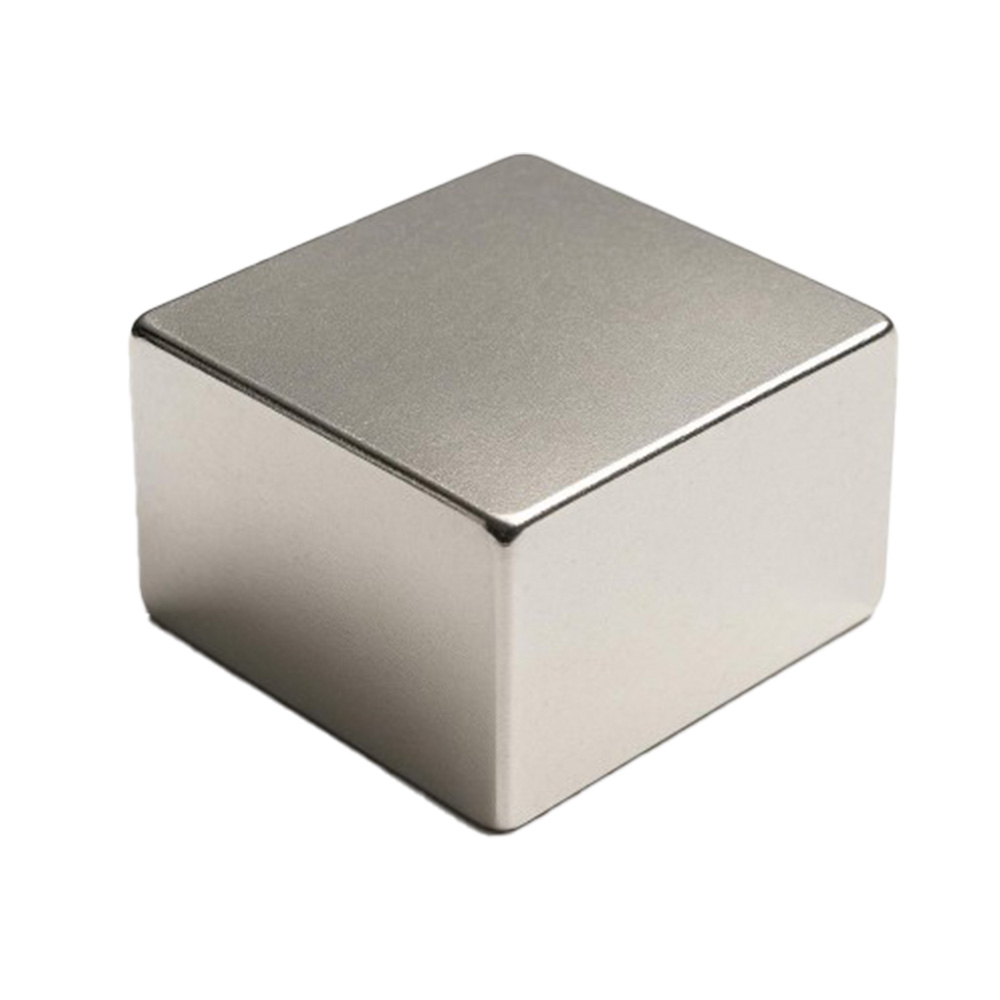

40x40x20 mm N35 Neodyum Magnet (Width 40 mm x Length 40 mm x Thickness 20 mm)

Based on 0 reviews. Write a review

$32.48

With installments starting from $2.26!

Stock	:	Sadece Teklif
Model	:	MGK-NEK-43
Category	:	Kare Dikdörtgen Neodyum Mıknatıslar

Qty

Teklif İsteyin

Buy Now Extra Button

Add to Wish List

Description
Reviews

40x40x20 mm N35 Neodymium Magnet
(Width 40 mm × Length 40 mm × Thickness 20 mm)

⚙️ Technical Product Information

Feature	Value
✅ Product Name	N35 Neodymium Magnet – Rectangular Type
✅ Dimensions	40 mm (Width) × 40 mm (Length) × 20 mm (Thickness)
✅ Shape	Rectangular Block
✅ Material	NdFeB (Neodymium – Iron – Boron)
✅ Grade	N35
✅ Coating	Nickel (Ni–Cu–Ni) Triple Layer Protection
✅ Magnetic Pole Orientation	Surface to Surface (Magnetized through thickness)
✅ Magnetic Flux Density (Br)	4,000 – 5,000 Gauss (4 – 5 kGs)
✅ Coercive Force (HcB)	≥ 10.8 kOe
✅ Maximum Energy Product (BHmax)	35 MGOe
✅ Density	7.5 g/cm³
✅ Maximum Operating Temperature	80 °C
✅ Corrosion Resistance	Medium (Protected with nickel coating)

???? Mechanical Properties

Feature	Value	Description
Hardness	600 HV	Brittle structure – low impact resistance
Compressive Strength	1000 MPa	High-density structure
Tensile Strength	75 MPa	Measured in the magnetic surface direction
Thermal Expansion Coefficient	6.5 × 10⁻⁶ / °C	Limited thermal stability

???? Magnetic Properties and Structure

Magnetization direction: Magnetized through the 20 mm thickness (height).

Poles: Located on the top and bottom 40 × 40 mm surfaces.

Magnetic Field Lines: Intensified in the center of the surface and focused toward the edges.

Surface Area: The 40 × 40 mm square surface provides a very strong grip and precise alignment thanks to its wide contact area.

Approximate pull force: 12 – 16 kgf (when tested on a steel surface – noticeably stronger than smaller dimensions).

⚙️ Applications

High-strength magnetic holding systems
Large surface alignment and clamping applications
CNC, jig, fixture, and heavy engineering setups
Powerful industrial sensor, motor, and magnetic locking systems
R&D and prototyping projects requiring high magnetic force

⚠️ Warnings and Usage Notes

⚠️ Neodymium magnets are extremely powerful – they can snap to metal surfaces rapidly and may crack.
⚠️ Impact resistance is low, controlled placement is recommended.
⚠️ Magnetic performance decreases above 80 °C.
⚠️ If magnets collide with force, they may crack – wearing protective gloves is recommended.
⚠️ Keep strictly out of reach of children.
