Ø50x10 mm Ferrite Pot Magnet with M8 Female Connector
Ø50x10 mm Ferrite Pot Magnet with M8 Female Connector
$12.47
With installments starting from $0.87!
| Stock | : | In Stock |
| Model | : | MGK-FP-3 |
| Category | : | Ferrit Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
| 2 Quantity | $22.45 | $11.23 | |
| 5 Quantity | $53.64 | $10.73 | |
| 10 Quantity | $99.80 | $9.98 | |
| 25 Quantity | $233.91 | $9.36 | |
Please contact us for larger quantities.
3 days in delivery!
Delivery by 25 July 2026 Saturday at the latest.
WhatsApp Support
50x10 mm M8 Ferrite Pot Magnet with Female Hole
50 mm outer diameter, 8 mm inner diameter and 10 mm thickness ferrite pot magnet with female bolt connection can be produced in the sizes you want. Please contact us for different sizes. We have wholesale magnet sales and our own production.
Specifications:
Stainless: Ferrite magnets do not rust in any environment and are suitable for use in fresh or salt water.
Material: It consists of iron oxide, barium or strontium compounds and is produced by high ceramic processing technology.
Shapes: Cylinders, squares, rectangles, rings and special shapes.
Temperature Resistance: Standard maximum temperature resistance is 220°C.
Coating: The coating does not tarnish and does not throw off.
Pot Magnet Manufacturing with Female - Male Connection:
Our company manufactures pot magnets and offers solutions suitable for neodymium, ferrite and all connection types.
Male connection
Female connection
Imbus connected
Countersunk hole
With internal threaded stud
Y35 Quality Ferrite Pot Magnet:
Y35 quality ferrite magnets with high level and high attraction power.
We have different quality ferrite pot magnet manufacturing for your bulk orders.
Wholesale Magnet Sale:
Please contact us to buy bulk magnets. Istanbul wholesale magnet prices will decrease in large number of purchases.
We offer shipping to all parts of Turkey.
Magnet Specifications:
- Diameter: 50 mm
- Thickness 10 mm
- Inner Diameter: 8 mm
- Tolerance: ± 0.1 mm
- Power: 0-2 kg
- Plating Nickel
- Magnet Type: Ferrite
- Operating Temp: Max. 220°C
- Quality: Y35
This powerful ferrite pot magnet can be used with confidence in a variety of applications and projects.

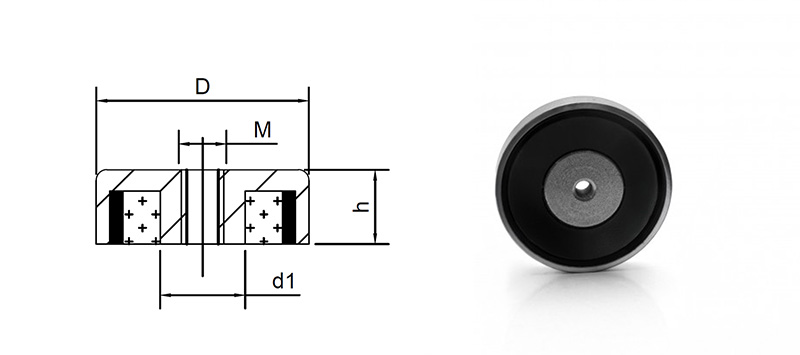

Standard Catalog Dimensions for Perforated Ferrite Pot Magnets (Type D)
You can get the technical drawing of the product and the standard catalog dimensions from the table below. You can come back with us for custom size production of products.
| MODEL (GYCCY) |
ØD (mm) | h (mm) | Ød1 (mm) | Metric (M) | Force (Kg) |
|---|---|---|---|---|---|
| Ø42x9 | 42 | 9 | 11 | M6 | 17 Kg |
| Ø48x10 | 48 | 10 | 15 | M8 | 20 Kg |
| Ø60x15 | 60 | 15 | 15 | M8 | 32 Kg |
| Ø70x20 | 70 | 20 | 18 | M10 | 41 Kg |
| Ø80x20 | 80 | 20 | 32 | M10 | 49 Kg |
