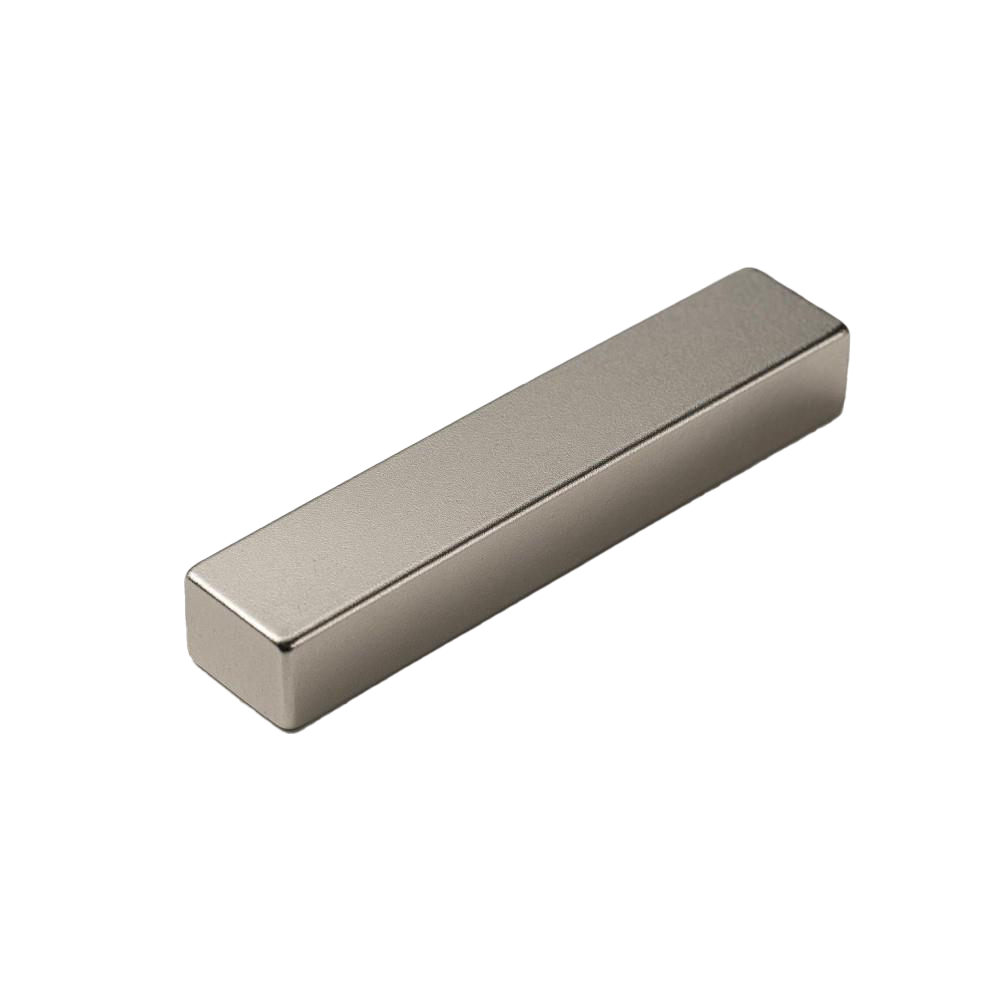

50x10x10 mm N35 Neodyum Magnet (Width 50 mm x Length 10 mm x Thickness 10 mm)

Based on 0 reviews. Write a review

$6.07

With installments starting from $0.42!

Stock	:	Sadece Teklif
Model	:	MGK-NEK-45
Category	:	Kare Dikdörtgen Neodyum Mıknatıslar

Qty

Teklif İsteyin

Buy Now Extra Button

Add to Wish List

Description
Reviews

50x10x10 mm N35 Neodymium Magnet

(Width 50 mm × Length 10 mm × Thickness 10 mm)

⚙️ Technical Product Information

Feature	Value
✅ Product Name	N35 Neodymium Magnet – Rectangular Type
✅ Dimensions	50 mm (Width) × 10 mm (Length) × 10 mm (Thickness)
✅ Shape	Rectangular Block
✅ Material	NdFeB (Neodymium – Iron – Boron)
✅ Grade	N35
✅ Coating	Nickel (Ni–Cu–Ni) Triple Layer Protection
✅ Magnetic Pole Orientation	Surface-to-Surface (Magnetized through thickness)
✅ Magnetic Flux Density (Br)	4,000 – 5,000 Gauss (4 – 5 kGs)
✅ Coercive Force (HcB)	≥ 10.8 kOe
✅ Maximum Energy Product (BHmax)	35 MGOe
✅ Density	7.5 g/cm³
✅ Maximum Operating Temperature	80 °C
✅ Corrosion Resistance	Medium (Protected with Nickel Coating)

???? Mechanical Properties

Feature	Value	Description
Hardness	600 HV	Brittle structure – low impact resistance
Compressive Strength	1000 MPa	High-density structure
Tensile Strength	75 MPa	Measured along the magnetic surface direction
Thermal Expansion Coefficient	6.5 × 10⁻⁶ / °C	Limited thermal stability

???? Magnetic Properties & Structure

Magnetization Direction: Magnetized through the 10 mm thickness (height) direction.
Poles: Located on the 50 × 10 mm top and bottom surfaces.
Magnetic Field Lines: Dense at the center, more focused toward the edges.
Surface Area: The 50 × 10 mm long and narrow surface allows precise alignment and linear magnetic contact in compact mounting applications.
Approximate Pull Force: 1.5 – 2 kgf (tested on a steel surface – strong holding power despite slim form).

⚙️ Applications

Slim-profile magnetic holding systems
Linear alignment and sensor applications
CNC, modeling, and precision mechanical assemblies
Magnetic switches, slider and rail systems
R&D and compact prototyping projects

⚠️ Warnings & Usage Notes

⚠️ Neodymium magnets are extremely strong – they may crack if they snap onto metal surfaces quickly.
⚠️ Impact resistance is low; controlled placement is recommended.
⚠️ Magnetic performance decreases above 80 °C.
⚠️ Magnets may chip if they collide strongly with each other – wearing gloves is recommended.
⚠️ Must be kept away from children.

Specifications

Dimensions
Width	50 mm
Length	10 mm
Height	10 mm
Magnet Properties
Coating	Nickel (Ni)
Color	Gray
Gaussian Value	4000-5000 Gaussian
Magnet Attraction Distance	0-5 cm
Shape	Rectangular
Tolerance	± 0,1 mm
Magnet Type	Neodymium (NdFeB)
Grade	N35
Max. Operating Temperature	80°C
