Ø60 mm Female Connection - Internally Threaded Pot Magnet - 100 kg Pulling Power - Special Production
Ø60 mm Female Connection - Internally Threaded Pot Magnet - 100 kg Pulling Power - Special Production
0.00 TL
With installments starting from 0.00 TL!
| Stock | : | Sadece Teklif |
| Model | : | MGK-DP-11 |
| Category | : | Neodyum Pot Mıknatıslar |

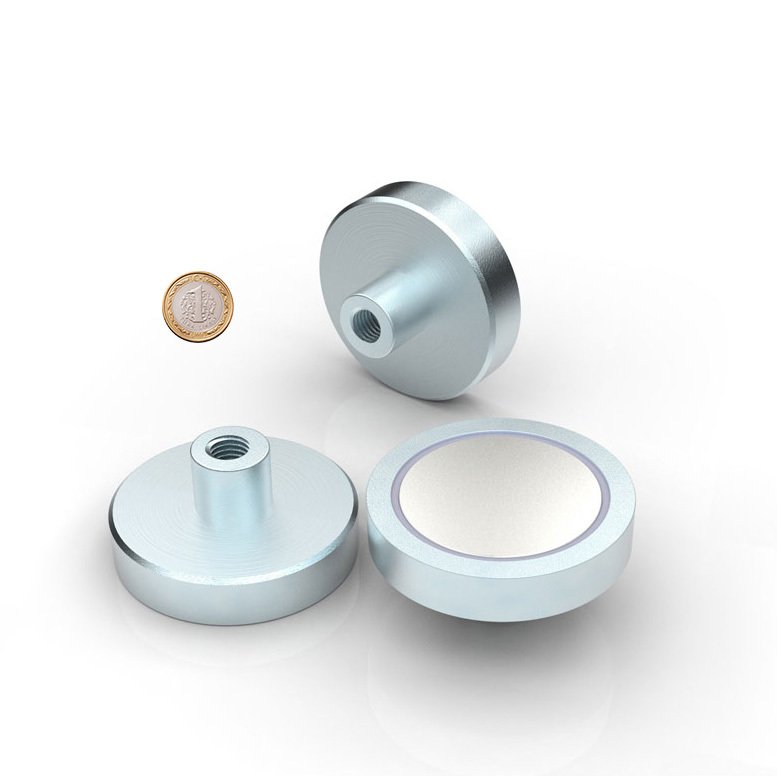

Female Connection - Internally Threaded Pot Magnet - D60 mm Diameter
The 60 mm diameter and 16 mm thick female hole pot magnet is made of neodymium and can be sized according to your demands. We can produce in the following catalog sizes. Please contact us for your different size requests. Discount will be applied for bulk purchases.
Strong Neodymium Pot Magnets
Neodymium strong pot magnet models have a very high attraction power unlike other magnets. For this reason, it is preferred by many companies and firms. The product can be coated with different materials depending on the area to be used, thus increasing its durability. You can find neodymium magnet types in cube, block, disk or cylindrical sizes on our site. These different productions make the product suitable for the area where it will be used.
Product coatings can be
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type of coating you want. The coating of the pot magnets we produce does not tarnish and peel off.
Pot Magnet Dimensions with Female Bolt Connection
In the list below, the dimensions of the female bolted pot magnets we produce are given. Please contact us for your requests that are not listed. You can benefit from discounts by ordering wholesale magnets.
| Stock No. | D | d | H | h | M | Watt | Weight | ||
| mm | mm | mm | mm | Kg | N | Lbs | g | ||
| MGK-DP-1 | 6 | 3 | 11.5 | 4.5 | M3 | 0.2 | 5 | 1 | 2 |
| MGK-DP-2 | 8 | 3 | 11.5 | 4.5 | M3 | 0.5 | 13 | 3 | 3 |
| MGK-DP-3 | 10 | 3 | 11.5 | 4.5 | M3 | 1 | 25 | 5 | 4 |
| MGK-DP-4 | 13 | 4 | 11.5 | 4.5 | M3 | 3 | 60 | 13 | 5 |
| MGK-DP-5 | 16 | 4 | 11.5 | 4.5 | M4 | 5 | 95 | 21 | 7 |
| MGK-DP-6 | 20 | 5 | 13 | 6 | M4 | 10 | 140 | 31 | 16 |
| MGK-DP-7 | 25 | 6 | 14 | 7 | M5 | 15 | 200 | 45 | 27 |
| MGK-DP-8 | 32 | 6 | 15.5 | 7 | M6 | 25 | 350 | 78 | 45 |
| MGK-DP-9 | 40 | 8 | 18 | 8 | M6 | 35 | 670 | 150 | 80 |
| MGK-DP-10 | 48 | 10 | 20 | 10 | M8 | 60 | 735 | 165 | 170 |
| MGK-DP-11 | 60 | 10 | 25 | 15 | M8 | 100 | 1107 | 249 | 263 |
