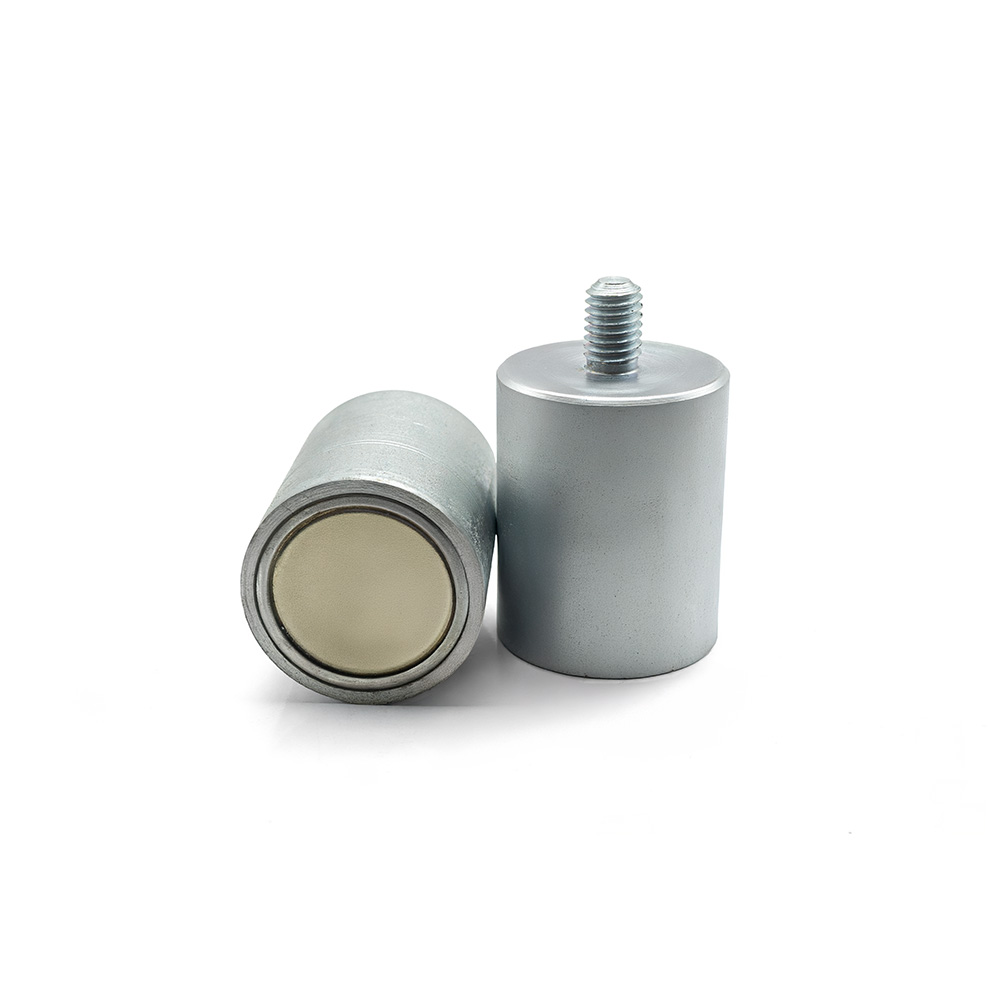

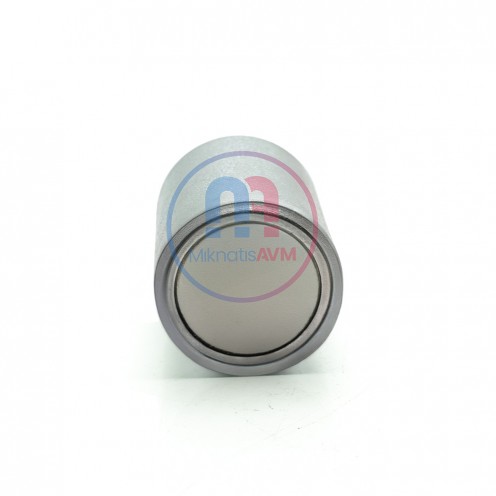

Ø32x40 mm M8x12 mm Male Threaded Cylindrical Pot Magnet – 34 kg Pulling Force

Ø32x40 mm M8x12 mm Male Threaded Cylindrical Pot Magnet – 34 kg Pulling Force

This powerful pot magnet with an M8x12 mm male threaded stud offers a strong pulling force of approximately 34 kg, thanks to its 32 mm diameter and 40 mm height. It is produced in standard dimensions, but we can also accommodate special size requests upon inquiry. Suitable for both retail and wholesale applications.

Neodymium magnets offer significantly higher magnetic strength compared to other types of magnets, making them the preferred choice in industrial applications, machinery, mounting brackets, and equipment fixtures. Depending on the intended application, different surface coatings (Copper, Nickel, Gold, Zinc, Tin, Silver) can be applied to enhance durability. Please contact us to specify your preferred coating type.

Product Features:

• Diameter: Ø32 mm

• Height: 40 mm

• Connection: M8x12 mm male stud

• Magnet Grade: N35 – High magnetic performance

• Applications: Industrial assembly, machine mounting, special projects

• Coating: Corrosion and environmental resistance

• Pulling Force: Approximately 34 kg

Additional Information:

All our magnets are compatible with Gauss certification, which can be provided upon request for an additional fee.

Magneteksan manufactures specialized magnets and magnetic systems for a wide range of industries, including defense, automotive, public sector, food processing, recycling, and mining.

Male Threaded Neodymium Pot Magnets (Type C)
