Ø80 mm Ferrite High-Strength Pot Magnet
Ø80 mm Ferrite High-Strength Pot Magnet
$17.25
With installments starting from $1.20!
| Stock | : | In Stock |
| Model | : | MGK-FE-23 |
| Category | : | Ferrit Pot Mıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
| 2 Quantity | $31.05 | $15.53 | |
| 5 Quantity | $74.18 | $14.84 | |
| 10 Quantity | $138.00 | $13.80 | |
| 25 Quantity | $323.44 | $12.94 | |
Please contact us for larger quantities.
3 days in delivery!
Delivery by 20 July 2026 Monday at the latest.
WhatsApp Support

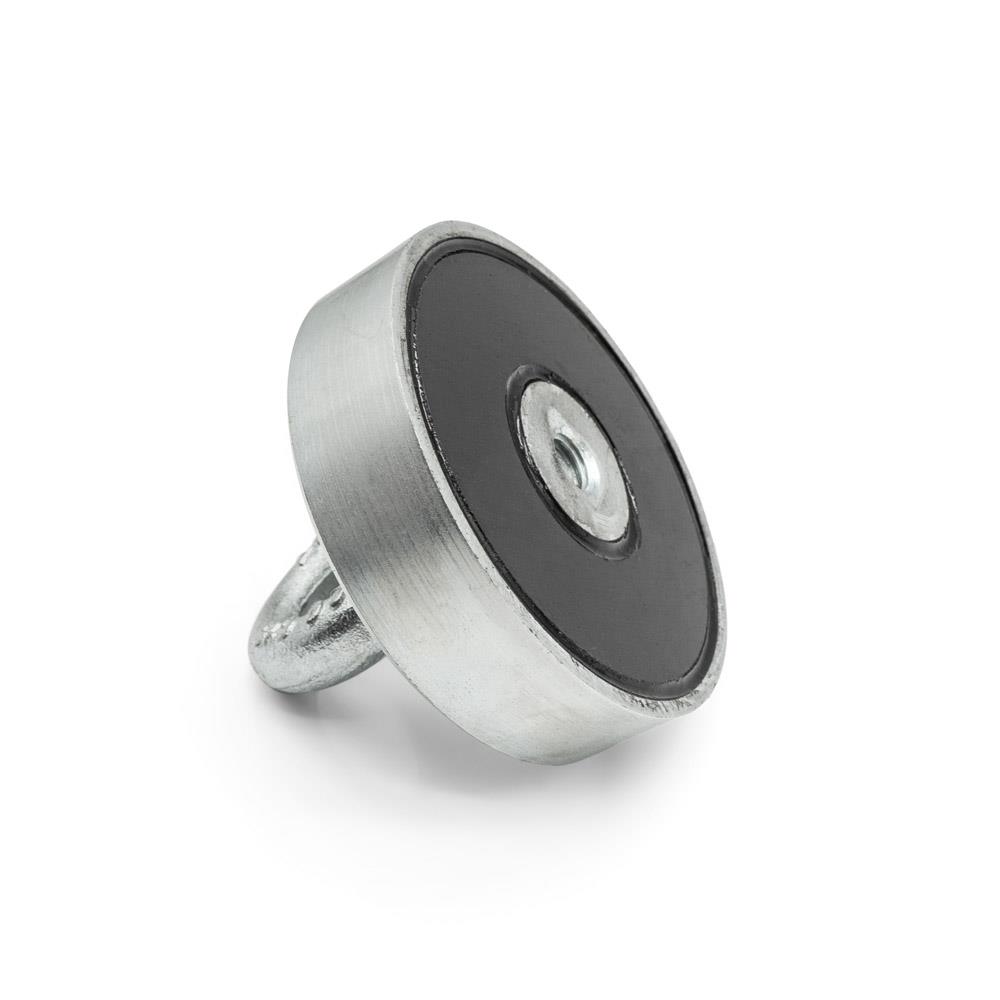

80mm Ferrite, Charcoal, Ceramic Pot Magnet
This strong ferrite magnet with a diameter of80 mm and a thickness of 20 mm can be used for transportation and lifting purposes. Whether you are a marine magnet or have different purposes, lifts up to 40 kg weight with its strong structure.
Ferrite magnets have lower magnetic strength compared to neodymium magnets. However, due to their affordability, they are preferred in many areas.
Technical Details;
- Outer diameter: 80 mm
- Thickness: 20 mm
- Tolerance: ± 0.1 mm
- Strength: 30-40 kg
- Magnet Type: Ferrite,
- Quality: Y35
- Operating Temperature: Max 220°C
Standard Catalog Dimensions for Perforated Ferrite Pot Magnets (Type D)
You can get the technical drawing of the product and the standard catalog dimensions from the table below. You can come back with us for custom size production of products.
| MODEL (GYCCY) |
ØD (mm) | h (mm) | Ød1 (mm) | Metric (M) | Force (Kg) |
|---|---|---|---|---|---|
| Ø42x9 | 42 | 9 | 11 | M6 | 17 Kg |
| Ø48x10 | 48 | 10 | 15 | M8 | 20 Kg |
| Ø60x15 | 60 | 15 | 15 | M8 | 32 Kg |
| Ø70x20 | 70 | 20 | 18 | M10 | 41 Kg |
| Ø80x20 | 80 | 20 | 32 | M10 | 49 Kg |
