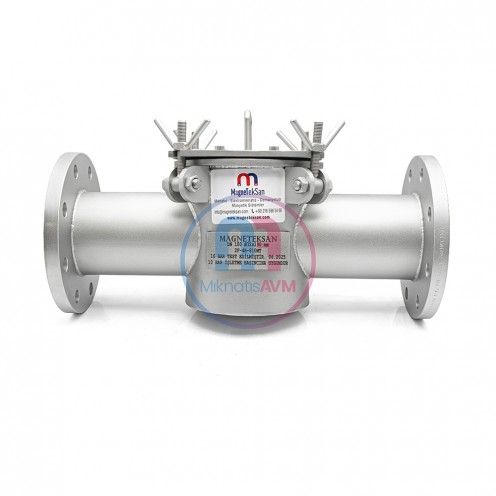

DN100 Inlet/Outlet Magnetic Filter – High-Efficiency Metal Separator for Oil Production Lines

The DN100 magnetic filter is a high-performance inline magnetic separator specifically designed for vegetable oil and liquid food processing facilities. Featuring a DN100 flanged inlet and outlet, it integrates seamlessly into standard pipeline systems to remove ferrous metal particles from liquid products.

Inside the stainless steel housing are high-Gauss neodymium magnetic bars that attract and retain iron contaminants, protecting downstream equipment and ensuring product purity. The filter body is constructed from food-grade AISI 304 or AISI 316 stainless steel, offering durability, corrosion resistance, and full compliance with hygiene standards in the food industry.

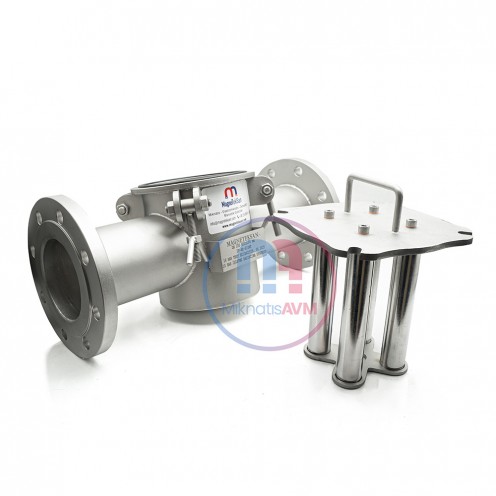

Its removable magnetic core allows for easy cleaning and maintenance, minimizing production downtime while maintaining high separation efficiency.

Technical Specifications:

• Inlet / Outlet Size: DN100 (flanged)

• Body Material: AISI 304 / AISI 316 stainless steel

• Magnetic Core: Neodymium magnetic rods with high Gauss strength

• Application Medium: Liquids – edible oils, additives, chemical fluids

• Operating Temperature: Max. 80°C

• Cleaning: Removable magnetic element for easy maintenance

Application Areas:

• Sunflower oil, olive oil, and vegetable oil production lines

• Food-grade liquid ingredient transfer systems

• Cosmetic and liquid soap manufacturing lines

• Chemical and industrial fluid pipelines

• Any liquid processing application requiring ferrous contamination control
