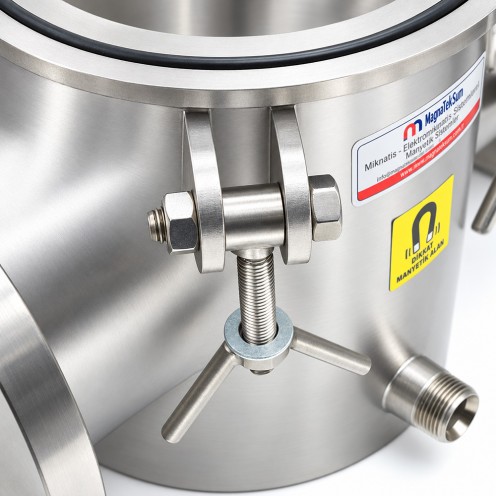

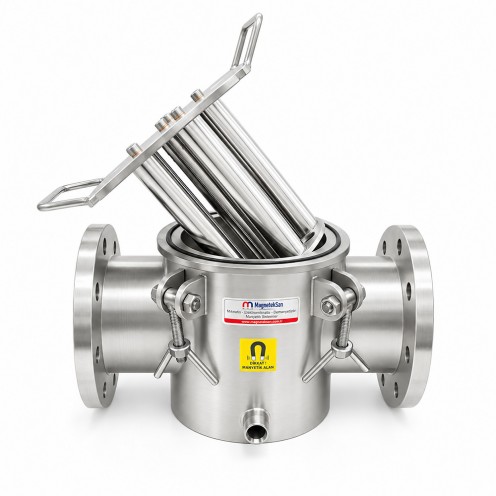

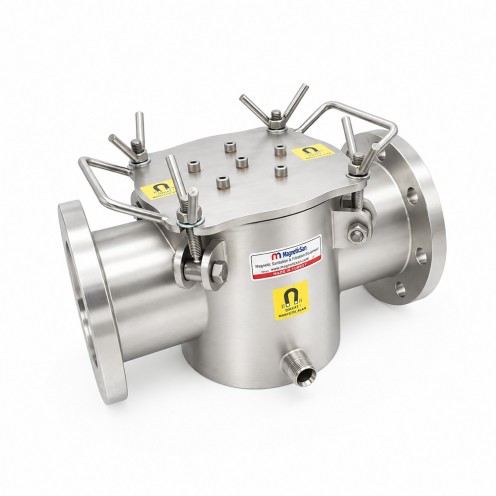

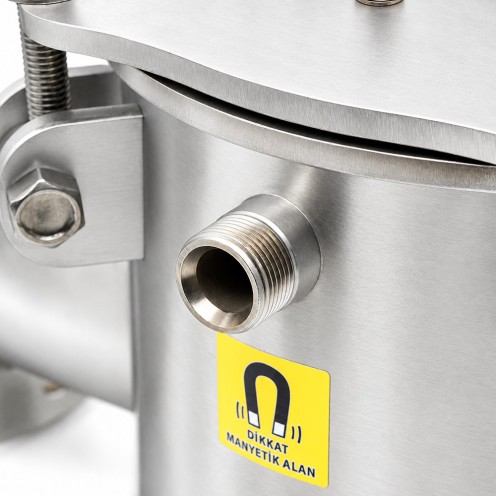

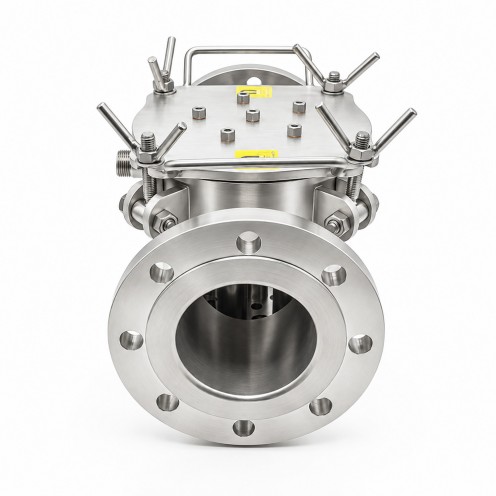

DN100 Magnetic Filter - 6 Bar - Food Safe - Stainless - 10,000 Gauss Power
With installments starting from $0.00!
| Stock | : | Sadece Teklif |
| Model | : | MGK-MF-2-P2 |
| Category | : | Manyetik Filtreler |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.
6-Bar - 10,000 Gauss Magnetic Filter on Stainless Steel Armor Surface
Magnetic filters with neodymium magnets can work up to a temperature of 80°C as standard. This is also the maximum operating temperature for the product you are examining. Alternatively, the N35SH quality magnetic filter can withstand temperatures up to 150°C. We manufacture it specifically upon request. These magnetic magnetic filter separators, which are suitable for the use of food companies, are our own production. We have production in special sizes and specifications for your company. Food is delivered as certified. It is safely used in the metal separation processes of many foods.
The neodium magnetic filters that we have produced are stainless with high attractive power. It is food certified and completely harmless to your food. It can be used safely by all food companies.
The magnet measurement values of our magnetic filters with neodium magnets comply with the BRC and HACCP standards. Our magnetic filters are certified by TÜBİTAK. This certificate will be delivered with the product when you purchase it.
- In order to capture the smallest metal fragments in food, the product was made of neodium magnets with high gravitational force. Our neodymium magnetic filters offer five times the gauss value compared to ferrite-ceramic magnets. Our products are manufactured to be corrosion-resistant.
- The production of these neodymium magnet filters belongs entirely to us and is a domestic production. Since it is our own production, we have the capacity to manufacture magnetic filters in the sizes and gauss strengths you require.
- Can be used easily in environments with liquid interaction.
- It can operate in environments up to a maximum temperature of 80°C.

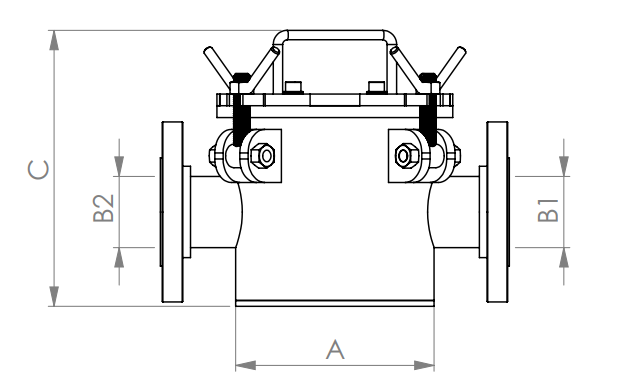

Technical Specifications
- Filter inlet/outlet (B1-B2): DN100
- Filter outer diameter (A): 200 mm
- Length/Height (C): 263 mm
- Inner filter bar diameter: 32 mm
- Number of bars inside the filter: 46
- Magnetic Flux: 10,000 Gauss (±5%)
- Operating Ambient Temperature: Max 80°C
- Material: AISI304
- Coating: Stainless
- Type: Sealed
- Magnet Type: N35SH Neodymium
Food Grade Magnetic Filter with Gauss Measurement Report
- These neodymium grid magnets are coated with stainless steel material.
- It is coated with AISI 304 and AISI 316 stainless steel, which is preferred by food production companies.
- It has very high resistance to corrosion.
- Our products are high-gauss, very powerful magnets. They are manufactured in our own production facility.
- At the desired high gauss levels; drawer-type neodymium grid magnets can be produced.
- The standard operating temperature is 80°C, and we produce magnetic separators that are resistant to temperatures up to 250°C.
