High-Power Magnetic Grid Separator (300x300 mm, 5 Rods, 10000 Gauss) – Designed for Kadayif Production Lines

300x300 mm 5-Bar Magnetic Grid Separator – 10000 Gauss Strength, Food-Grade Design

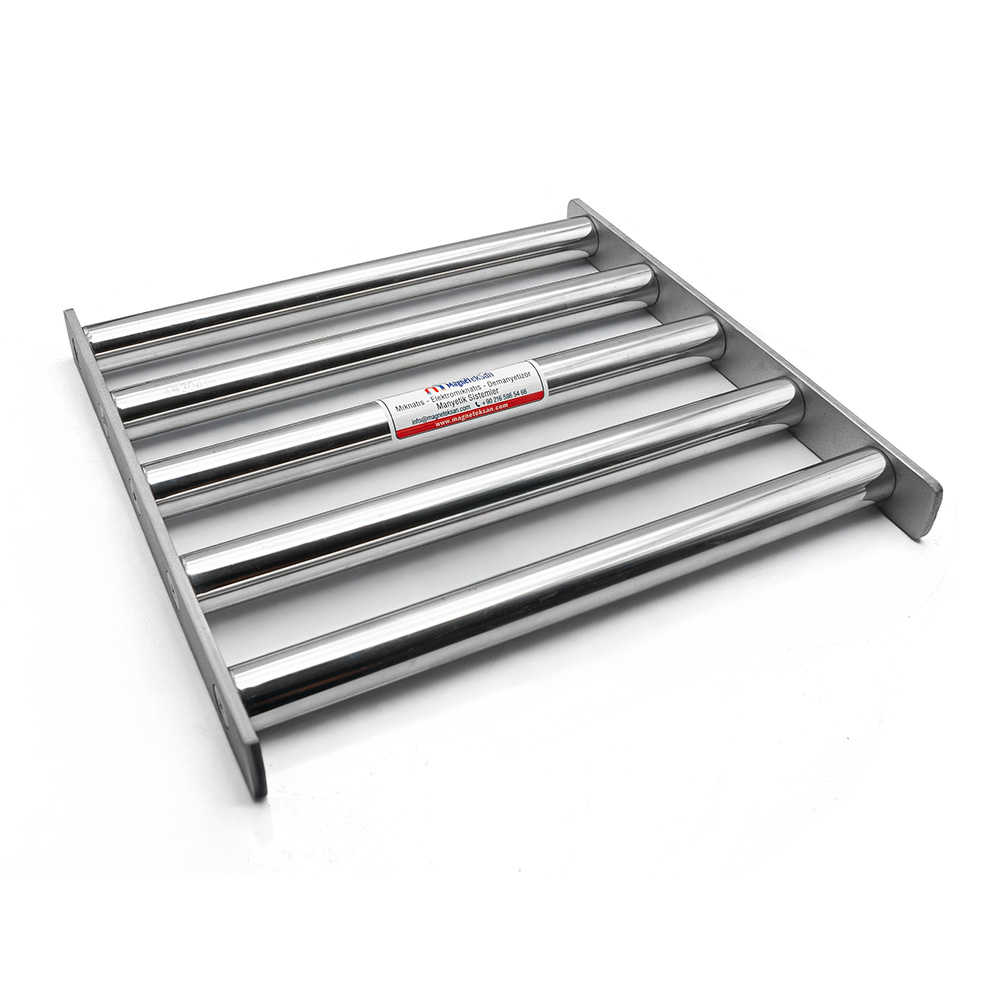

The 300x300 mm magnetic grate separator, manufactured by Magneteksan, features 5 high-strength Ø25 mm neodymium magnetic bars integrated into a user-friendly handle-equipped frame. This system efficiently captures iron dust, rust particles, and metallic contaminants from powder and granular product flows, ensuring high product purity.

Specially designed for industries such as food processing, plastics, chemicals, starch, flour, spices, and pulses, this separator is made entirely from AISI 304 / 316 stainless steel in contact surfaces and fully complies with BRC and HACCP food safety standards.

Technical Specifications:

• Dimensions: 300 mm x 300 mm

• Magnetic Bars: 5 pcs – Ø25 mm neodymium

• Magnetic Strength: 10000 Gauss

• Material: AISI 304 / 316L stainless steel

• Design: Handle-equipped, easily removable frame

• Cleaning: Manual – simple disassembly

• Operating Temperature: Max. 80°C

• Certificates: Gauss report, CE, and food compliance certificate available on request

Application Areas:

• Sugar, flour, spice, starch, and legume processing lines

• Plastic granule and masterbatch production

• Screw conveyor outlets and product discharge zones

• Pre-packaging metal separation stations

• Contamination control in food-grade environments

Key Advantages:

• Fully hygienic, food-safe construction

• Captures even micron-sized ferrous particles

• Ergonomic handle design for easy installation and cleaning

• High magnetic field ensures maximum separation efficiency

• Long-lasting use with stable neodymium performance
