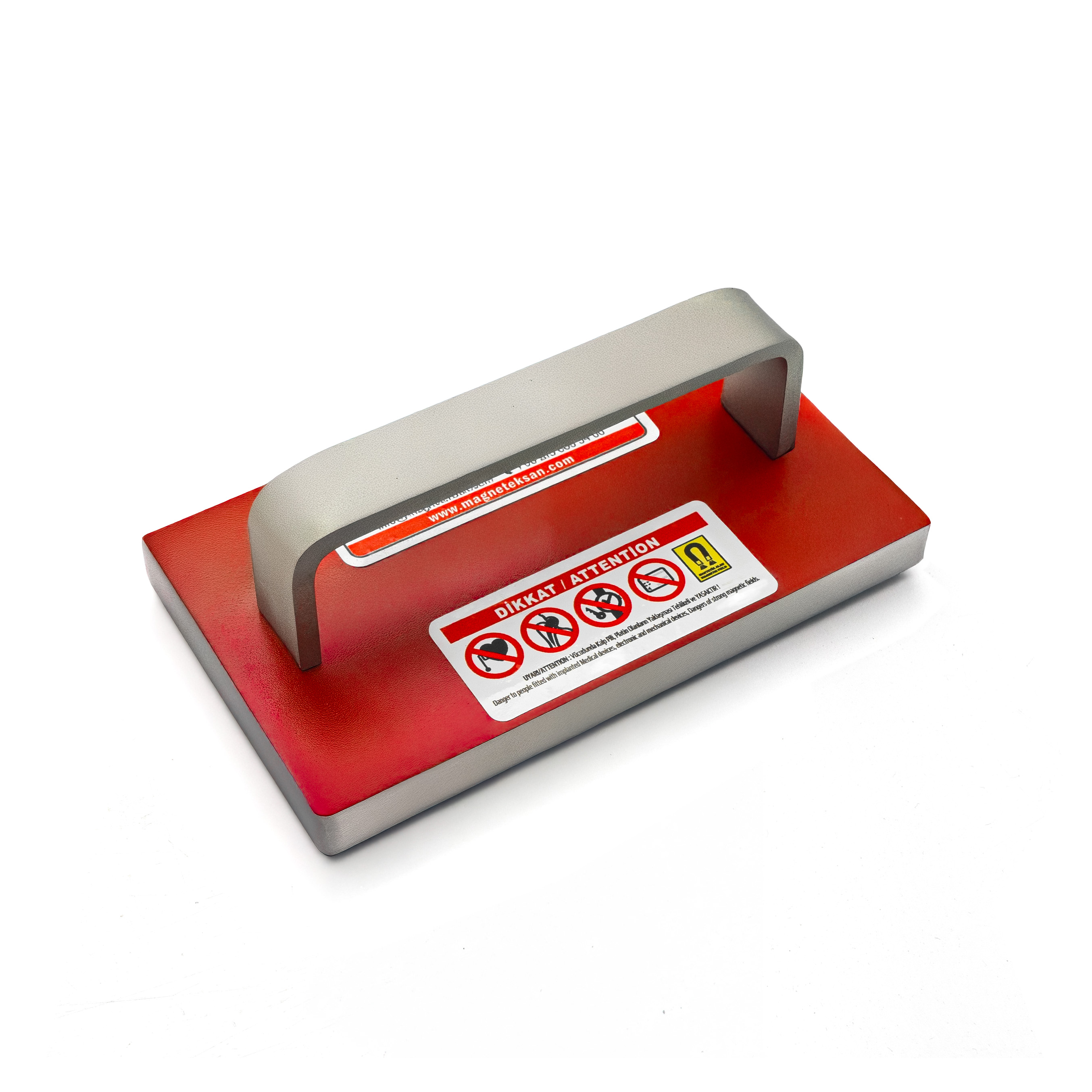

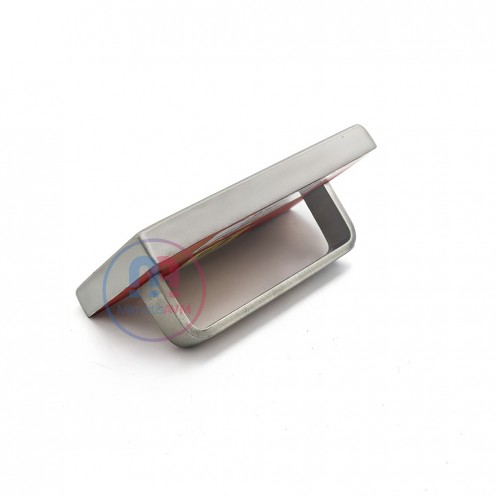

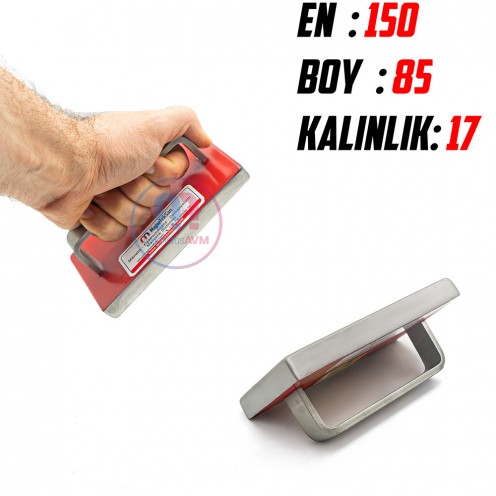

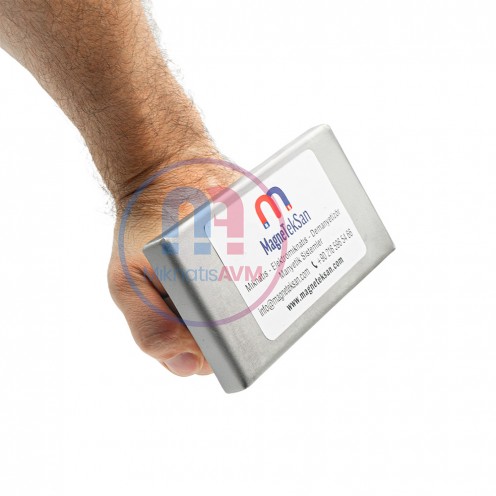

Ø150x85x17 mm Neodymium Handheld Plate Magnet – 100 kg Pull Force

Handheld-Compatible Special Plate Magnet

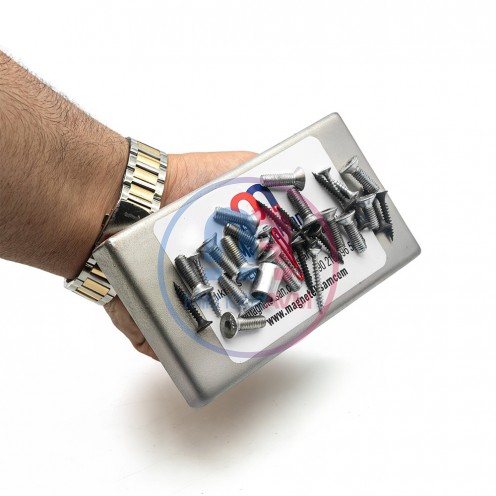

Suitable for handheld use, the portable metal collecting magnet offers a high attractive force with a thickness of 32 mm. With this product, which has a large surface area and is practical to use, you can easily collect metal shavings, nails, screws, and metal dust from the floor in small pieces.

Our plate magnet contains a neodymium or ferrite magnet inside. NdFeB neodium, the strongest type of magnet in nature, neodium magnets consisting of iron and boron elements are often used in our products. Due to cost considerations, more economical ferrite magnets were used in this product according to our customer's demands.

It is produced by domestic engineers in accordance with the standards. Manufactured to be leak-proof and impermeable to external water, this product can be used easily in humid environments. Since the surfaces of the magnets in contact with food are sealed with stainless material, it does not pose a problem from the point of view of food standards. Our plate magnets can be produced in special sizes for you as well as ready-made sizes. Contact us for special sizes.

Production Capability in Accordance with Technical Drawings

All our productions are carried out entirely on the basis of technical drawings. For your custom production requests, a technical drawing is first prepared and presented to you. Connection types and sizes, along with all dimensions, will be produced after your approval is obtained on the technical drawing.

Technical Details

The connection holes of the plate magnet can be determined according to the company's request for the desired properties. The minimum Fe-particle size that can be captured is 0.03 mm (30 microns). The surface sheet of the plate magnet can be made of 304 quality rustproof or 316L quality rustproof and has a sandblasted surface. The connection surface is painted. It can also be manufactured entirely in stainless steel. A handle made of chrome or bakelite can also be added. The tolerance value is ±3 mm.

Production Options

The plate magnets produced by our company offer versatile solutions suitable for different applications and process needs. The available product types are as follows:

• Easy-to-clean plates
• Automatically cleanable designs
• Natural magnet or electromagnet plates
• Electric tape-mounted plates (tape-mounted electromagnets)
• Tape-mounted suspension-type permanent magnets
• Coiled magnetic plates
• Z-type stepped plate magnets
• Handheld scrap metal magnets
• Custom-designed plate magnets

All products are optimized to provide high performance and reliable magnetic separation. For custom solutions tailored to your needs, you can contact our company.

Other Features

• Number of Connections: None
• Plate Qty: 1
• Min who can be caught. Fe-particle size:0.03mm (30 microns)
• External material specification: 304 grade stainless steel
• Magnet surface quality: Polished
• Surface Quality: Polished
• Sealing: Yes
• Completely stainless steel: Yes
• Handle: Yes
• Handle Material: Chrome
• Tolerance: +-3 mm
