Ø200x40 mm Electromagnet for Collecting Nails - Screws - 200 kg Attractive Power
Ø200x40 mm Electromagnet for Collecting Nails - Screws - 200 kg Attractive Power
$0.00
With installments starting from $0.00!
| Stock | : | Sadece Teklif |
| Model | : | MGK-E-4 |
| Category | : | Yuvarlak Elektromıknatıslar |
| Quantity | Pack Price | Unit Price | |
|---|---|---|---|
Please contact us for larger quantities.

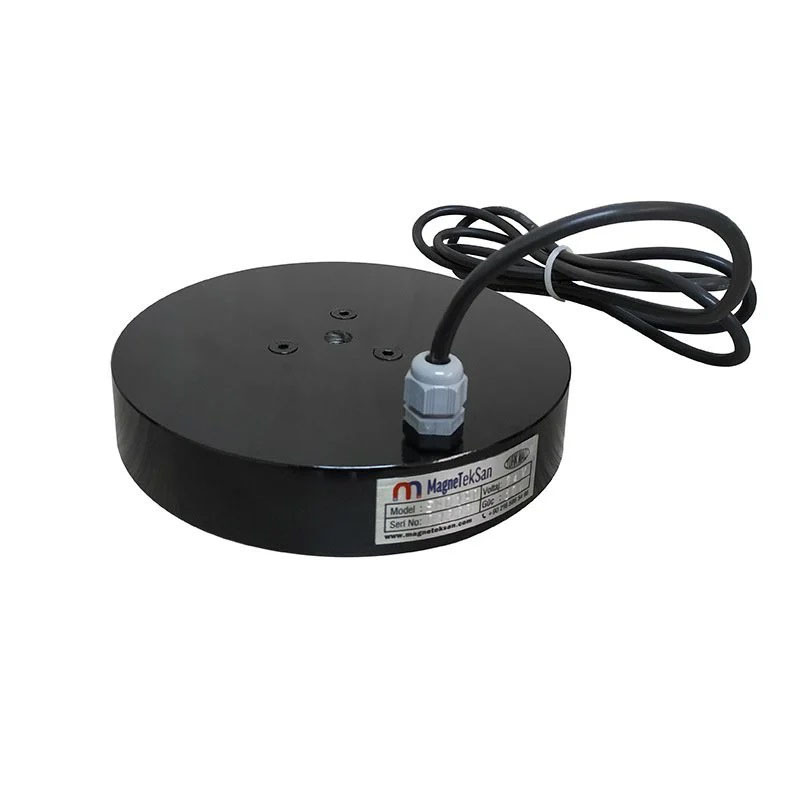

200 mm Diameter Nail, Screw, Bolt Collecting Electromagnet
The large 200 mm surface area makes it ideal for picking up small metal parts, nails, screws and bolts from the ground. A thin surface thickness of 40 mm makes the device lightweight. This electromagnet has a gravitational force of 200 kg on flat and solid materials, and offers this power in part-time operation. The metal picking electromagnet is made very durable with a steel coating on the outside. The complete copper winding makes the electromagnet more efficient and temperature resistant.
During transportation, after lifting the product you are transporting, you can press a button to give a new command and lower the product back down. In this way, the transportation process is carried out.
Electromagnet Features:
Our electromagnets are produced with waterproof feature.
They work with voltage at DC 48V levels.
We produce electromagnets in desired diameters and sizes.
They have 500.000 lifetime.
Operating temperature is between -10°C and 100°C.
Working Principle of Electromagnets
An electromagnet is an industrial component that generates a holding force by creating a magnetic field around an iron core through the electric current passing through its coil. The table below summarizes the general principles.
Electromagnet working logic, components, duty cycle and applications
| Topic | Description |
|---|---|
| Basic Principle | When a DC voltage (e.g. 12V or 24V) is applied, the current flowing through the coil creates a magnetic field around the core and attracts metal surfaces. |
| Main Components | Coil (winding), iron core, housing, connection cables, and where needed a resin coating (heat dissipation/insulation). |
| Strength of the Magnetic Field | Current (A), voltage (V), number of windings, core material, and the cleanliness/tolerance of the contact surface determine the holding force. |
| Duty Cycle | 50% duty: Operates for a set period and then rests (for heat management). 100% duty: Suitable for continuous operation; typically a heat-resistant/resin-coated design. |
| Polarity (Poles) | When the current direction changes, the N–S poles reverse. This is an advantage in direction-controlled applications. |
| Behavior on Power Loss | Standard electromagnet: Holding force is lost when power is cut. Permanent-magnet type: Holding continues when power is cut and releases when power is applied (fail-safe). |
| Heating and Cooling | Heating occurs due to coil resistance. The correct duty cycle, adequate cooling, and a suitable mounting surface are critical for lifespan/performance. |
| Applications | Industrial lifting/holding, automation and robotic grippers, door locks, brake/release mechanisms, CNC and assembly lines. |
| Advantages | Controllable magnetic force, fast response, remote actuation, depending on the application either fail-safe release or fail-safe hold. |
Round Electromagnets Catalog
You can find the technical drawing and standard catalog dimensions of the product in the table below. Please contact us for custom size production.
|
MODEL (BYR5CK/ BUR5CK) |
Dimensions (mm) |
Power WATT |
Voltage VDC |
Duty Cycle % |
Connection POSITION |
Cable Gland PG7-9 |
Min. Plate Thick. (mm) |
Pull Force (N) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| ØD | H | M | ||||||||
| Ø40x30 mm | 40 | 30 | M6 | 5.2 | 24 | 50 | TOP/SIDE | PG7 | 5 | 470 |
| Ø50x30 mm | 50 | 30 | M6 | 7 | 24 | 50 | TOP/SIDE | PG7 | 5 | 760 |
| Ø63x35 mm | 63 | 35 | M6 | 10 | 24 | 50 | TOP/SIDE | PG7 | 8 | 1000 |
| Ø80x40 mm | 80 | 40 | M8 | 15 | 24 | 50 | TOP/SIDE | PG7 | 10 | 2400 |
| Ø100x45 mm | 100 | 45 | M8 | 25 | 24 | 50 | TOP/SIDE | PG7 | 15 | 3400 |
| Ø150x55 mm | 150 | 55 | M16 | 37.2 | 48 | 50 | TOP/SIDE | PG7 | 25 | 9300 |
| Ø180x65 mm | 180 | 60 | M20 | 50 | 48 | 50 | TOP/SIDE | PG7 | 30 | 15000 |
| Ø200x60 mm | 200 | 60 | 3xM12 | 65 | 48 | 50 | TOP/SIDE | PG9 | 35 | 25000 |
| Ø250x80 mm | 250 | 80 | 3xM12 | 90 | 48 | 50 | TOP/SIDE | PG9 | 40 | 30000 |
| Ø280x110 mm | 280 | 110 | 3xM12 | 150 | 48 | 50 | TOP/SIDE | PG9 | 50 | 40000 |
| Ø300x130 mm | 300 | 130 | 3xM12 | 180 | 48 | 50 | TOP/SIDE | PG9 | 80 | 45000 |
