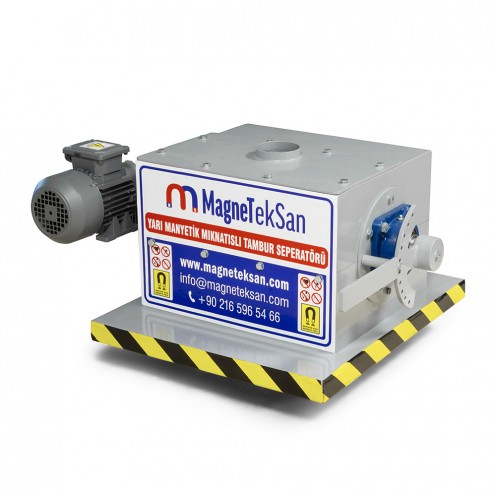

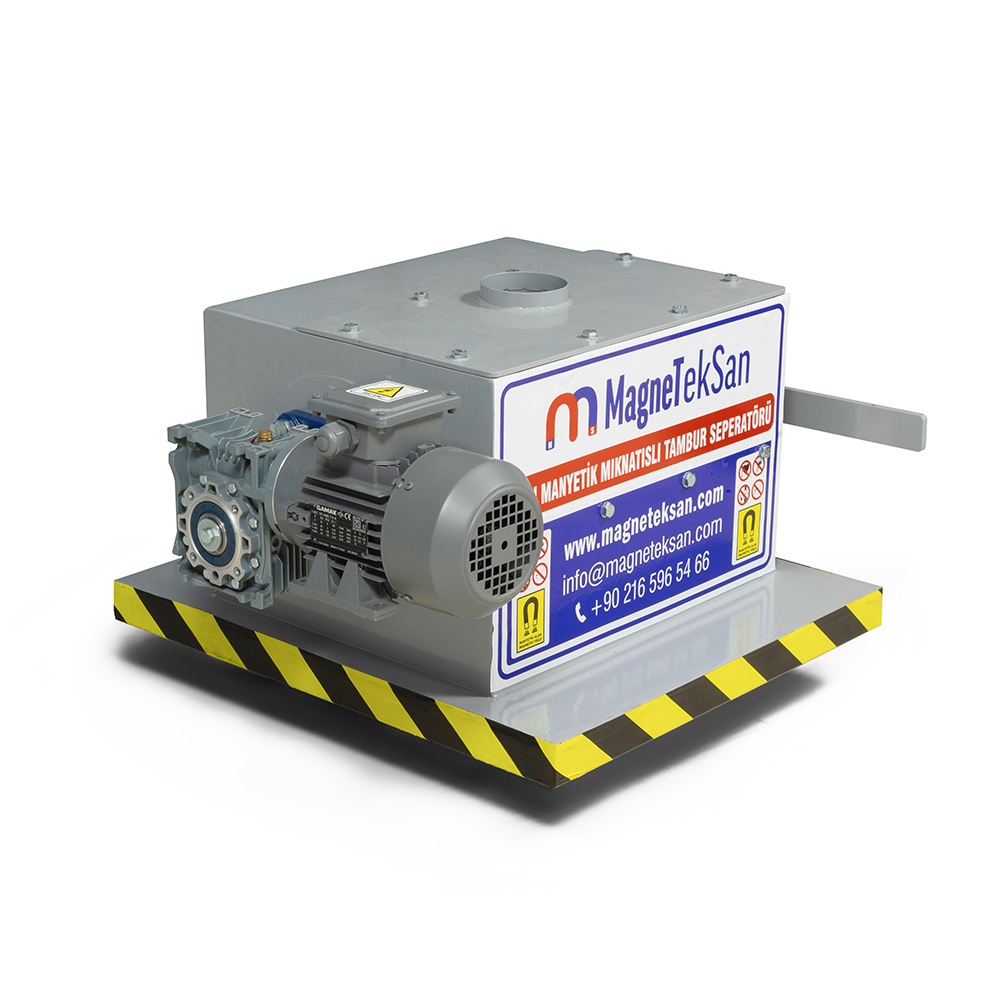

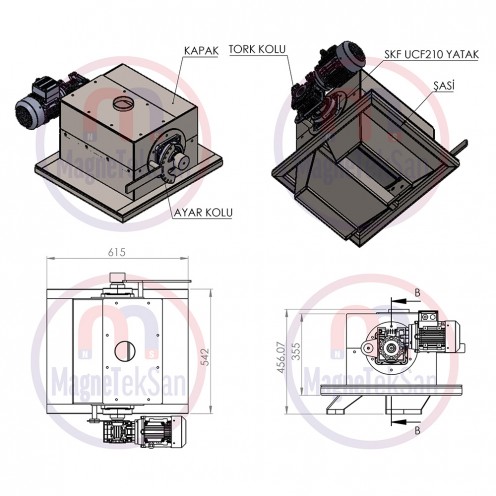

Ø219x360 mm Closed Type Separator with Semi-Magnetic Drum

Semi-Magnetic Drum Separator - Magnetic Separator

The drum magnet allows for easy separation of magnetic and non-magnetic materials within raw materials. Magnetic drums are used to separate iron-containing materials from non-magnetic materials. These drum separators are highly secure systems. With their special magnet system, they completely capture iron and metal pieces, acting as versatile magnetic separators.

Applications in Iron and Steel Production

Iron and steel manufacturers use these separators to clean unwanted non-ferrous materials, such as those in scrap. This cleaning process increases the purity of the scrap. Conveyor belt systems are used to separate ferromagnetic materials within products. The magnetic drum is installed in place of the drive pulley and added to the end of the belt. This allows metal particles to be separated without an additional process.

Magnetic and Non-Magnetic Material Separation

The captured metals are deposited into a separate compartment thanks to the pallets on the drum. Non-magnetic materials remaining on the belt are transferred to another compartment.

Customized Production

We manufacture with strong Neodymium Magnets or Ferrite Magnets based on the separation process and product requirements. We can produce in desired sizes and magnetic strengths.

Benefits of Drum Magnet Separators

We've covered the applications of magnetic drum separators. Now, let's look at the benefits of drum magnets:

• Reduces refractory consumption,
• Decreases electrode consumption,
• Lowers lime consumption,
• Reduces consumption of ferro-alloy materials,
• Increases the number of casts by shortening casting times,
• Ensures cleaner scrap output.

Magnetic drums can be manufactured in non-standard dimensions, different capacities and magnetic strengths according to customer requirements. The minimum ferrous particle size that can be captured is 0.03 mm and/or 0.05 mm.

The drum magnet can be produced from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted surface finish. The manufacturing tolerance is ±3 mm.

The magnetic drums manufactured by our company are available in full magnetic and half magnetic configurations, providing suitable solutions for different process requirements. Thanks to the high-efficiency magnetic field design, they enable continuous and effective separation of ferromagnetic materials.

Our systems can be supplied as a single drum unit or as a complete frame-mounted system, designed to be integrated into belt conveyors or bunker-fed applications. With a robust body structure, long service life, and customizable dimensions based on customer needs, our magnetic drums are optimized for industrial use.

For custom-designed solutions tailored to your application, please feel free to contact our company.
