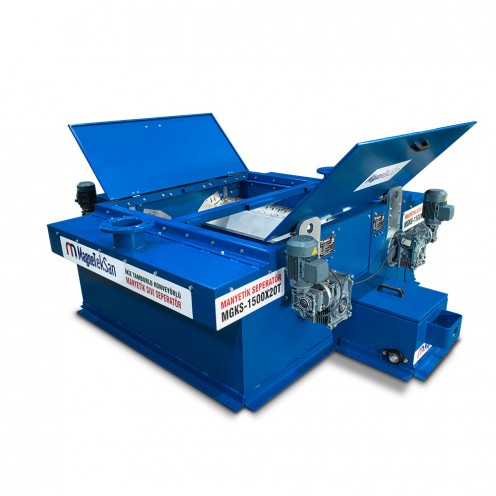

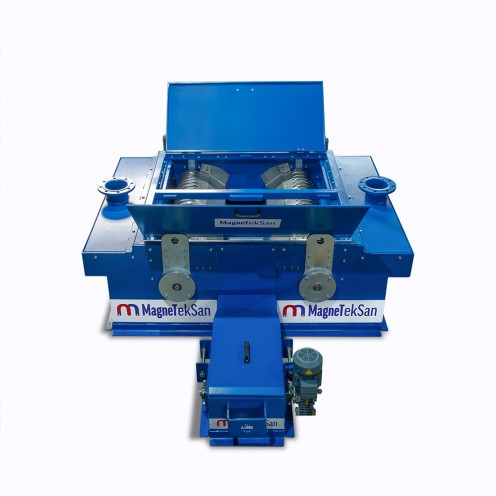

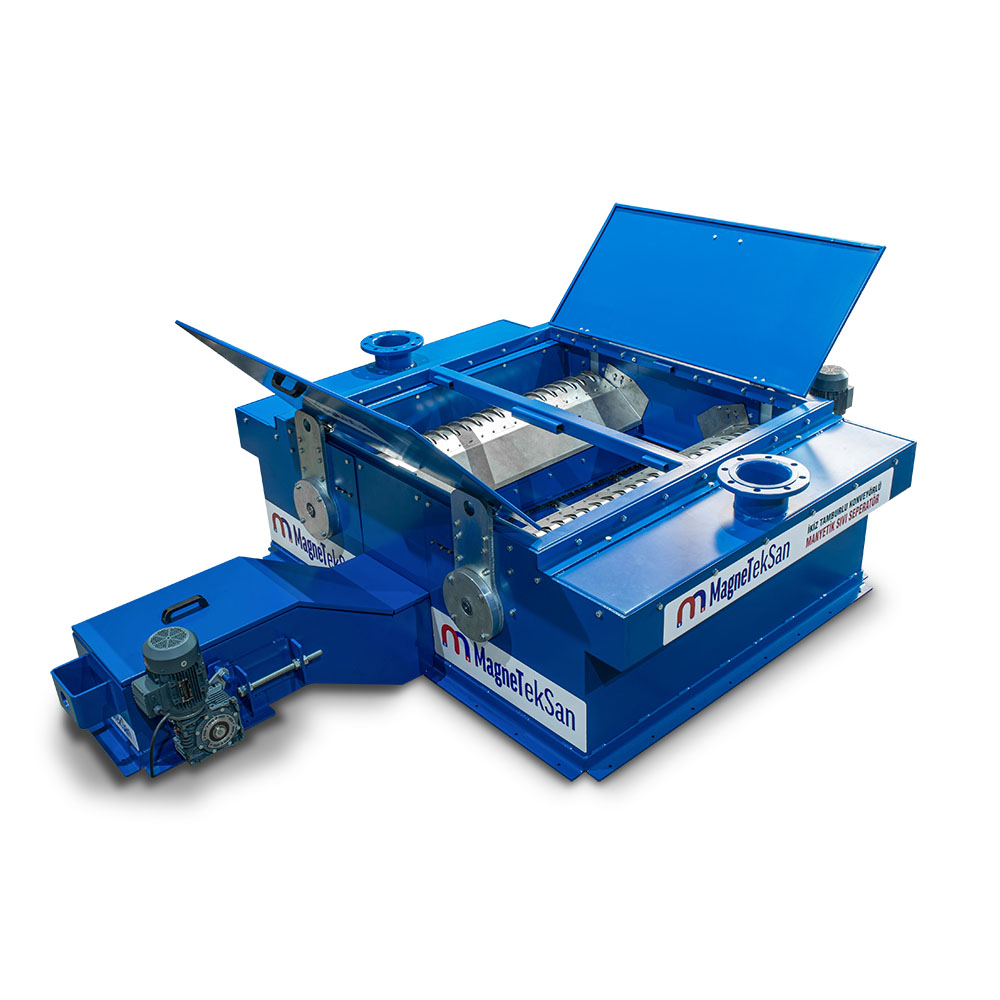

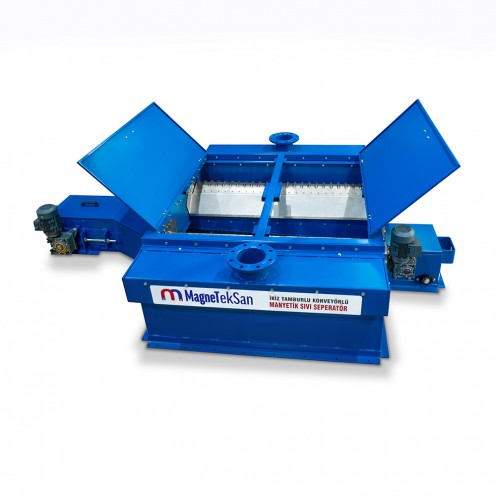

Ø220x1500 mm Double Drum Magnetic Liquid Separator

Double-Drum Metal-Liquid Oil Separator

This magnetic separator is specifically designed to remove unwanted metal particles from liquid products such as cooling fluids and bore oils. These magnetic liquid separators are custom-manufactured to your specifications, ensuring optimal safety for your facility.

Our domestically produced liquid metal separators are manufactured according to required diameter and capacity specifications. Visit our production facilities in Istanbul to view our demo magnetic liquid separator products and learn about pricing and varieties.

Key Benefits

• 100% domestic manufacturing
• Metal-free cooling fluid ensures cleaner surface finishing
• Extended filter life for grinding machine coolants
• Custom size options available
• Professional installation service

Food Grade Certification with Gauss Measurement Report

• BRC and HACCP certified
• Long-lasting neodymium magnetic strength
• Premium AISI 304 and AISI 316 stainless steel construction
• Superior corrosion resistance
• High-gauss magnetic power
• Custom drawer-type options available
• Operating temperature: standard 80°C, up to 250°C available

Technical Features

• Double-drum design for enhanced separation
• Continuous operation capability
• Easy maintenance design
• Robust construction
• Efficient metal particle removal
• Customizable flow rates

Liquid separators can be manufactured in non-standard dimensions with different capacities and magnetic strengths according to customer requirements. The minimum ferrous particle size that can be captured is 0.05 mm.

The magnet surface plate is made of AISI 304 stainless steel with a sandblasted finish, while the body plate is made of painted steel.

The system provides high-efficiency separation performance through the combination of a magnetic drum and a pressure drum. The manufacturing tolerance is ±3 mm.

For custom solutions tailored to your requirements, please feel free to contact our company.
