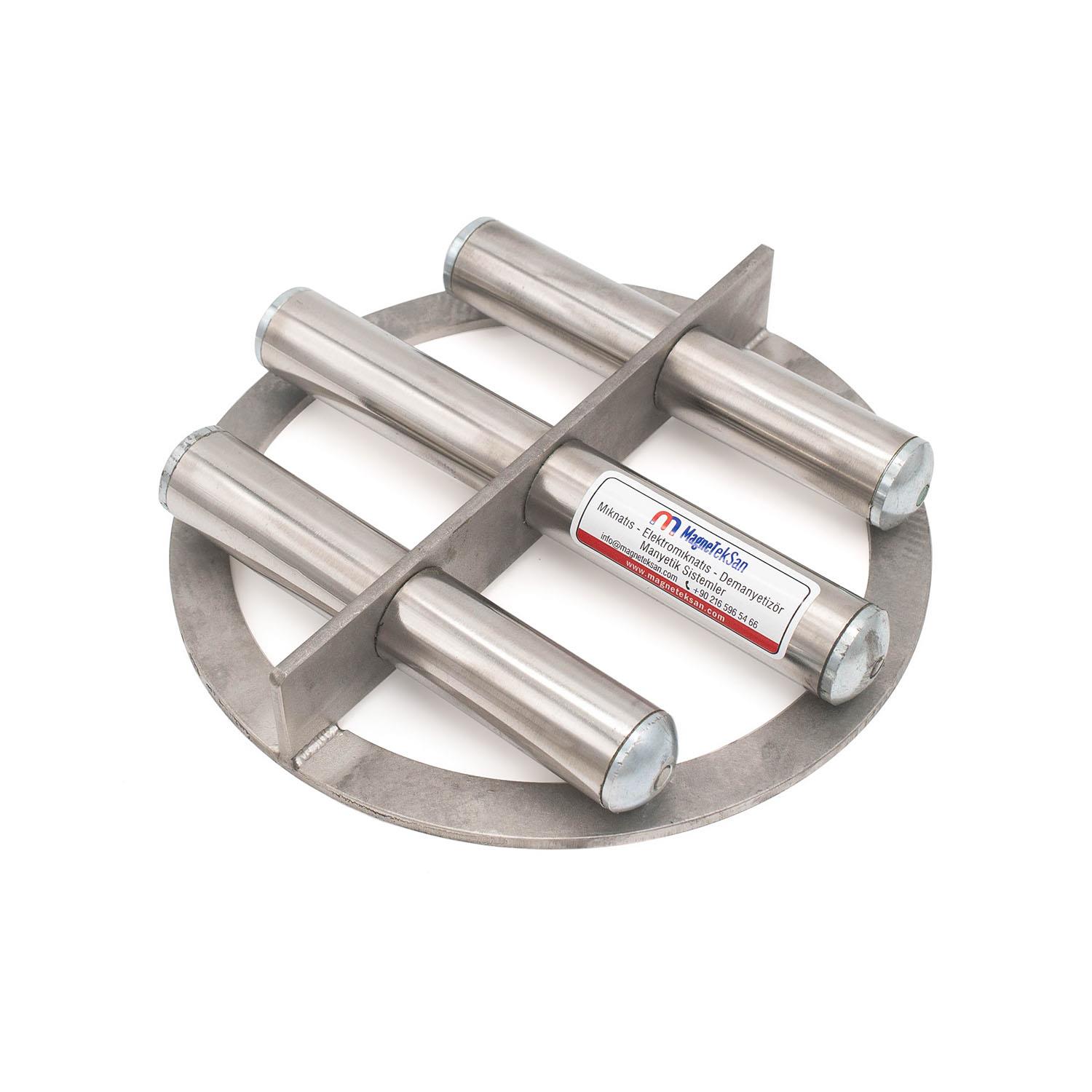

Ø250 mm Neodymium Grid Type Magnet

10000 Gauss Very Strong Magnetic Grid

Magnetic grid separators, generally preferred by food manufacturers, are used by many companies. They are used in sectors such as powdered sugar, flour, legumes, plastic granules and similar industries, and are mounted at the outlet pipes or discharge points of product flows in factories. This way, metals are extracted from products such as food, plastic, glass, and ceramics. These grid magnets, capable of attracting even invisible metal dust in the air, can be manufactured in custom sizes and pulling forces specific to your company.

Gauss Measurement Reported & Food Grade Certified

General Features

• Our neodymium grid magnets are coated with AISI 304 and AISI 316 stainless steel material preferred by food companies.
• Resistance to corrosion is very high.
• Our products are high-gauss, extremely powerful magnets manufactured in our own facilities.
• Neodymium grid magnets can be produced at any high gauss levels upon request.

Technical Details

Magnet connection can be made single or double-sided. The minimum capturable Fe-particle size is 0.03 mm. The protective sleeve of the bar magnet can be manufactured from 304 or 316L quality stainless steel. The bar magnet surface is polished. It is fully stainless and watertight. A handle made of chrome, aluminum, or bakelite material can also be added to the magnet upon request. The bar magnet tolerance value is ±1 mm.

Custom Design and Application Options

Bar magnets produced by our company are designed to meet needs in different sizes and magnetic strengths. Their easy-to-clean designs offer options for special applications such as handled, Custom, nipple-manchon connected, or bullet-head configurations. For custom solutions tailored to your needs, please do not hesitate to contact us.

Other Specifications

• Min. Capturable Fe-particle size: 0.03 mm
• Outer material: 304 - 316 quality stainless steel
• Magnet surface quality: Food-grade stainless steel (AISI 304 / 316)
• Watertight: Yes
• Fully stainless: Yes
• Category: Manually cleanable
• Tolerance: ±3 mm
