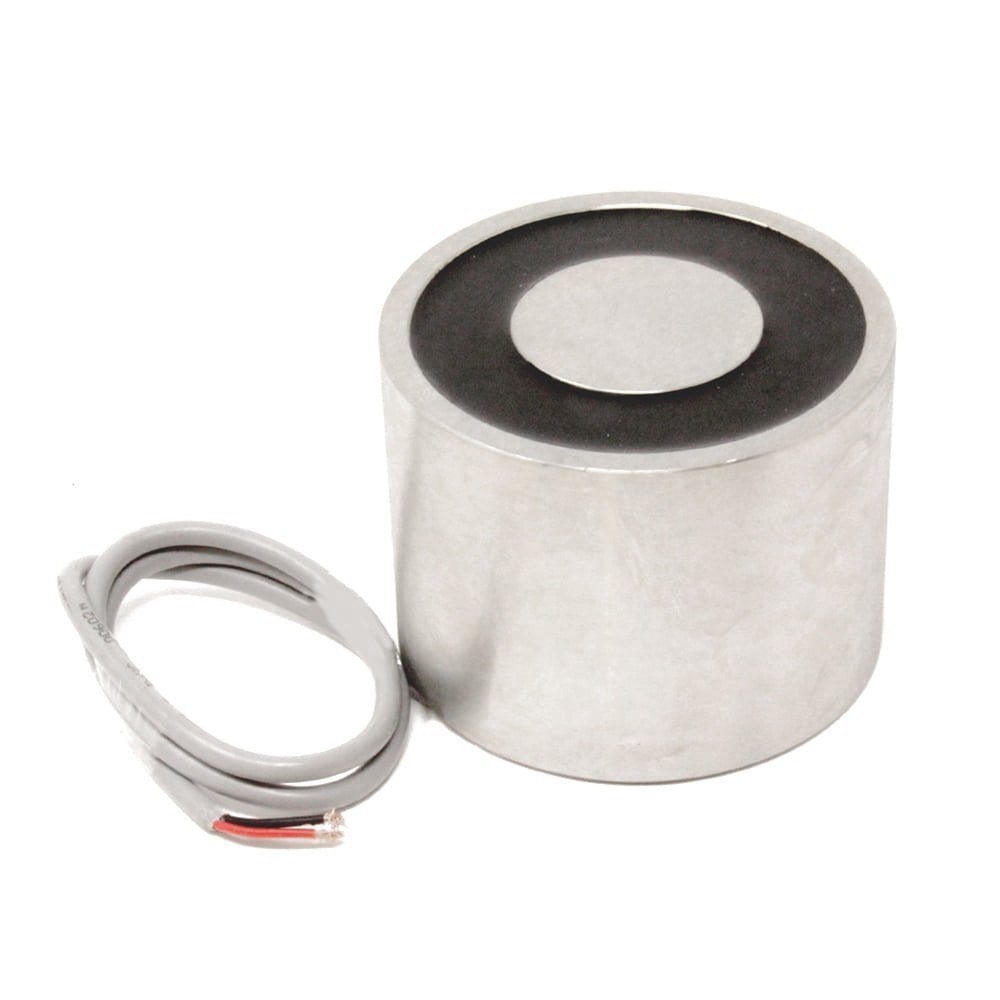

Ø250x80 mm - Large - Very Strong Electromagnet
Ø250x80 mm - Large - Very Strong Electromagnet
0.00 TL
With installments starting from 0.00 TL!
| Stock | : | Sadece Teklif |
| Model | : | MGK-E-25080 |
| UPC | : | MGK-E-25080 |
| Category | : | Round Electromagnets |
Ø250x80 mm Transportation Electromagnet Specifications
These electromagnets with Ø250x80 mm, P250/80 (250 mm diameter, 80 mm height) dimensions, used for transportation purposes, are frequently preferred in lid, pipe and box transportation services.
This product, which is used in test devices, receives a different command after a certain period of time after lifting the sample and releases the sample back. It is also used in sheet metal transportation. Despite their small structure, they have a high gravitational force. Our electromagnets are waterproof. They have voltage capability at DC 5V, 12V and 24V levels. We produce electromagnets in desired diameter and size. They have 500.000 lifetime. Operating temperature is between -10°C and 100°C.
Other Electromagnet Sizes We Produce Electromagnet Making Catalog Dimensions
In the table below, you can examine the attraction power, weight information, etc. of electromagnets of different sizes.
| Model | A (mm) | B (mm) | Strength(kgs) | Watt(W) | Thickness(mm) | Weight (g) |
| MGK-E-4040 | 40 | 40 | 25 | 4,8 | 5.0 | 300 |
| MGK-E-4530 | 45 | 30 | 30 | 4,8 | 5.0 | 287 |
| MGK-E-5030 | 50 | 30 | 35 | 6.0 | 6.0 | 331 |
| MGK-E-5050 | 50 | 50 | 40 | 9,6 | 5.0 | 580 |
| MGK-E-6060 | 60 | 60 | 50 | 17,1 | 6.0 | 1000 |
| MGK-E-6330 | 63 | 30 | 45 | 17,1 | 8.0 | 550 |
| MGK-E-7035 | 70 | 35 | 60 | 9,6 | 10.0 | 800 |
| MGK-E-7045 | 70 | 45 | 70 | 15.0 | 10.0 | 1000 |
| MGK-E-7060 | 70 | 60 | 75 | 21,3 | 8.0 | 1360 |
| MGK-E-8038 | 80 | 38 | 65 | 15.0 | 10.0 | 1120 |
| MGK-E-8055 | 80 | 55 | 75 | 14,4 | 12.0 | 1620 |
| MGK-E-8060 | 80 | 60 | 80 | 23,5 | 10.0 | 1780 |
| MGK-E-9060 | 90 | 60 | 95 | 14,4 | 12.0 | 2250 |
| MGK-E-10043 | 100 | 43 | 105 | 21.0 | 15.0 | 2000 |
| MGK-E-10060 | 100 | 60 | 125 | 38.0 | 12.0 | 2780 |
| MGK-E-12060 | 120 | 60 | 190 | 41.3 | 15.0 | 4000 |
| MGK-E-15056 | 150 | 56 | 250 | 37.0 | 25.0 | 5800 |
| MGK-E-18063 | 180 | 63 | 350 | 50.0 | 30.0 | 9500 |
| MGK-E-20060 | 200 | 60 | 500 | 70.0 | 35.0 | 12000 |
| MGK-E-25080 | 250 | 80 | 750 | 90.0 | 40.0 | 23000 |
| MGK-E-275110 | 275 | 110 | 1000 | 140.0 | 50.0 | 38000 |
| MGK-E-300130 | 300 | 130 | 2000 | 160.0 | 60.0 | 45000 |
