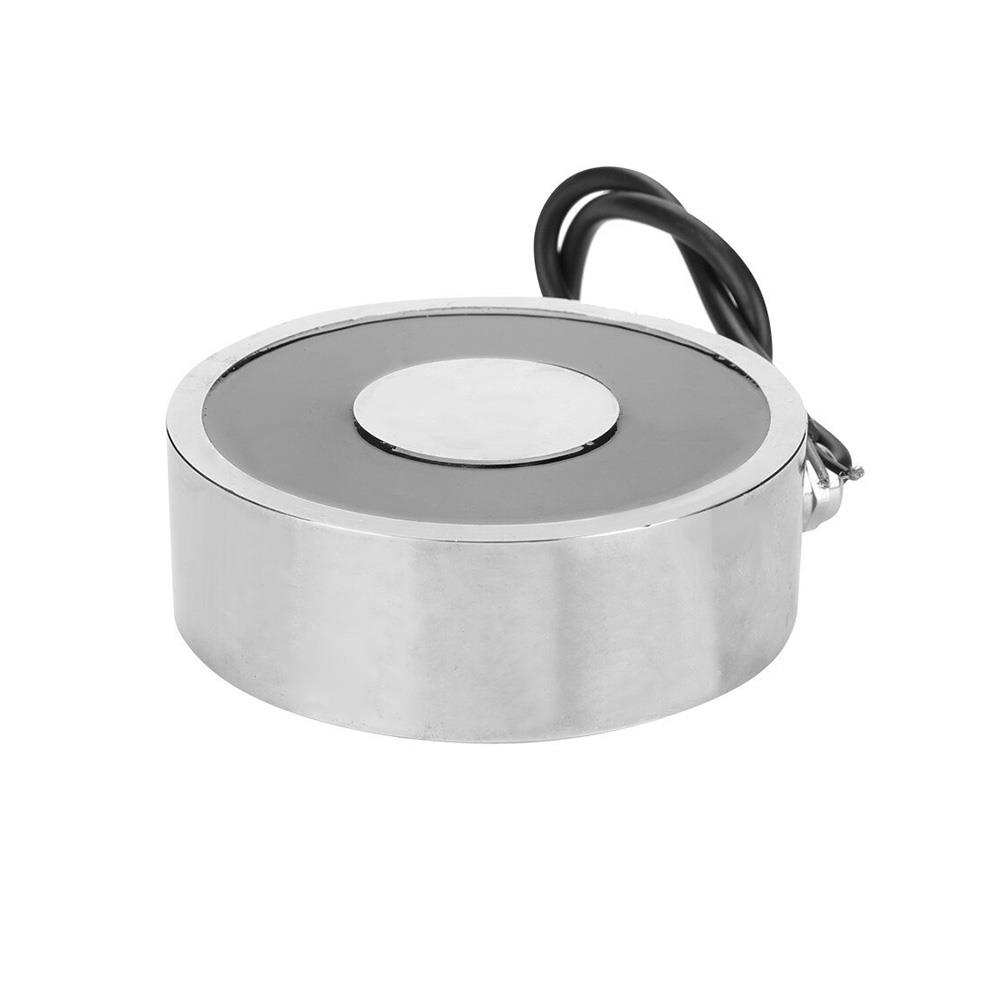

Large and Very Strong Part-time Electromagnet, IP65 Standard
These electromagnets, Ø275x110 mm, P275/110 (275 mm in diameter, 110 mm in height), used for transportation purposes, are frequently preferred in lid, pipe and box transportation services.
This product, which is used in test devices, receives a different command after a certain period of time after lifting the sample and releases the sample back. It is also used in sheet metal transportation. Despite their small structure, they have a high gravitational force. Our electromagnets are waterproof. They have voltage capability at DC 5V, 12V and 24V levels. We produce electromagnets in desired diameter and size. They have 500.000 lifetime. Operating temperature is between -10°C and 100°C.
What is Full Time and Part Time Operation?
Electromagnets work with electric current. We produce electromagnets that work with 5V, 12V, 24V, 48V, 48V, 110V and 220V. The more voltage you give an electromagnet, the greater the attraction power. However, this creates a danger of heating and burning. When high voltage is applied, it should therefore not be applied for a long time. In these time-based electromagnets, those that can work 24/7 are called full-time electromagnets, while the other productions are called part-time electromagnets.
For example, while a full-time electromagnet fed with 12V offers 40 kg attraction force, when you feed this electromagnet with 24V, it starts to heat up after a while. The degree of heating is different for each product. Small electromagnets can overheat after a certain period of time when fed with 24V, while large diameters can be fed with 48V.
Other Electromagnet Sizes We Produce Electromagnet Making Catalog Dimensions
In the table below, you can examine the attraction power, weight information, etc. of electromagnets of different sizes.
Model | A (mm) | B (mm) | Strength (kgs) | Watt (W) | Thickness(mm) | Weight(g) |
MGK-E-4040 | 40 | 40 | 25 | 4,8 | 5.0 | 300 |
MGK-E-4530 | 45 | 30 | 30 | 4,8 | 5.0 | 287 |
MGK-E-5030 | 50 | 30 | 35 | 6.0 | 6.0 | 331 |
MGK-E-5050 | 50 | 50 | 40 | 9,6 | 5.0 | 580 |
MGK-E-6060 | 60 | 60 | 50 | 17,1 | 6.0 | 1000 |
MGK-E-6330 | 63 | 30 | 45 | 17,1 | 8.0 | 550 |
MGK-E-7035 | 70 | 35 | 60 | 9,6 | 10.0 | 800 |
MGK-E-7045 | 70 | 45 | 70 | 15.0 | 10.0 | 1000 |
MGK-E-7060 | 70 | 60 | 75 | 21,3 | 8.0 | 1360 |
MGK-E-8038 | 80 | 38 | 65 | 15.0 | 10.0 | 1120 |
MGK-E-8055 | 80 | 55 | 75 | 14,4 | 12.0 | 1620 |
MGK-E-8060 | 80 | 60 | 80 | 23,5 | 10.0 | 1780 |
MGK-E-9060 | 90 | 60 | 95 | 14,4 | 12.0 | 2250 |
MGK-E-10043 | 100 | 43 | 105 | 21.0 | 15.0 | 2000 |
MGK-E-10060 | 100 | 60 | 125 | 38.0 | 12.0 | 2780 |
MGK-E-12060 | 120 | 60 | 190 | 41.3 | 15.0 | 4000 |
MGK-E-15056 | 150 | 56 | 250 | 37.0 | 25.0 | 5800 |
MGK-E-18063 | 180 | 63 | 350 | 50.0 | 30.0 | 9500 |
MGK-E-20060 | 200 | 60 | 500 | 70.0 | 35.0 | 12000 |
MGK-E-25080 | 250 | 80 | 750 | 90.0 | 40.0 | 23000 |
MGK-E-275110 | 275 | 110 | 1000 | 140.0 | 50.0 | 38000 |
MGK-E-300130 | 300 | 130 | 2000 | 160.0 | 60.0 | 45000 |
Specifications
Dimensions | |
Diameter | 251-500 mm |
Height | 101-250 mm |
Magnet Properties | |
Coating | Zinc (Zn) |
Color | Gray |
Gaussian Value | 12000-14000 Gaussian |
Magnet Attraction Distance | 5-10 cm |
Magnet Type | Electric |
Max. Operating Temperature | 100°C |
Shape | Round |
Strenght | 1000-3000 kg |
Tolerance | ± 1 mm |
Material Properties | |
Complete Stainless | Yes |
External Material Feature | Steel |
Sealing | Yes |
Exterior Material Quality | 304 Quality Stainless |
