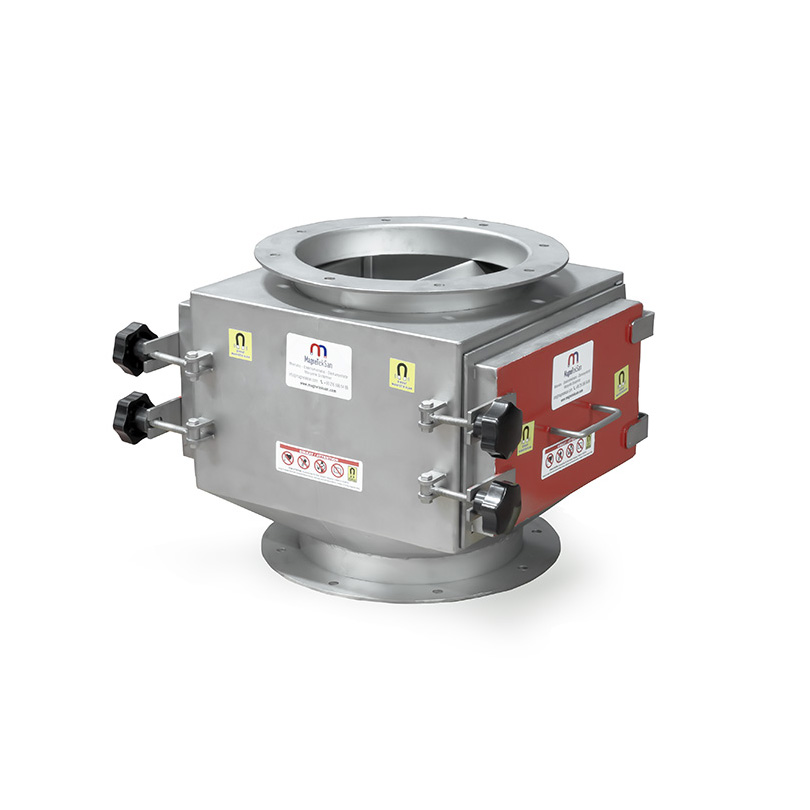

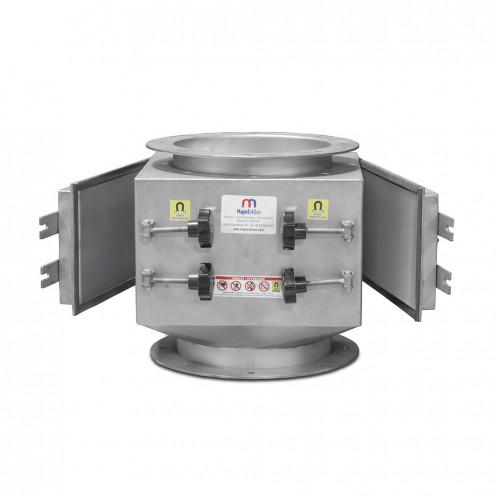

Ø300 mm Input Output 350x210x42 mm Double Plate Magnetic Drawer

Double Plate Magnetic Drawer Separator with Ø300 mm Inlet Outlet

Magnetic drawer separators, which are named according to the inlet and outlet dimensions, are our own production and are produced specially for your company. These pull-out sieve magnet separators made of neodymium magnet do not miss metal because they have a high attractive power. This neodymium sieve magnet, which is much stronger than ferrite magnets, is able to attract even metal dust in the air. This product can work in environments up to 80° temperature. Please contact us for your different temperature requests. It is suitable for food because it is completely stainless. It is designed for use in liquid-interactive foods. Our magnetic sieve magnet separator with neodium magnet with drawer type drawer product is used by many corporate companies. Since we have our own production, it is also possible to manufacture in the sizes you want. These drawer type magnetic screens that we produce from neodymium magnet retain the same strength for many years.

By mounting to the points where your products are spilled, it provides very good cleaning of fallen products. These neodium sieve magnets are coated with stainless steel material.

• It is coated with AISI 304 and AISI 316 stainless steel, which are preferred by food production companies. < / li>
• Its resistance to corrosion is very high. < / li>
• Our products are very strong magnets with high gauss. < / li>
• It is produced in our own production facility. < / li>
• In the high gausses you want; Neodymium sieve magnet with drawers can be produced. < / li>
• Operating temperature is 80°C. You can contact us for our customized product options for your company.

Info: Our magnets have Gauss certification and will be sent to you with an extra fee if requested. Our company provides Gauss measurement and certification services for all magnetic systems. Magneteksan company manufactures magnetic equipment and magnets for many industries from defense to automotive, from public to food companies, from recycling to mining.

The mounting holes of plate magnets can be determined according to customer requirements and desired specifications. The minimum ferrous particle size that can be captured is 0.03 mm.

The surface plate of the magnet can be manufactured from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted finish. The mounting surface is painted. Upon request, the product can also be manufactured entirely from stainless steel. Additionally, handles made of chrome or bakelite can be added. The manufacturing tolerance is ±3 mm.

Plate magnets manufactured by our company provide versatile solutions for different applications and process requirements. Our products are available as easy-clean plates, self-cleaning designs, permanent magnet plates, or electromagnetic plates.

Furthermore, we also manufacture overband electromagnetic separators (electromagnetic plate magnets for conveyors), suspension-type permanent overband magnets, housing-type magnetic plates, Z-type deflection plate magnets, handheld scrap magnets, and custom-designed plate magnets.

All products are optimized to deliver high performance and reliable magnetic separation.

For custom solutions tailored to your application, please feel free to contact our company.
