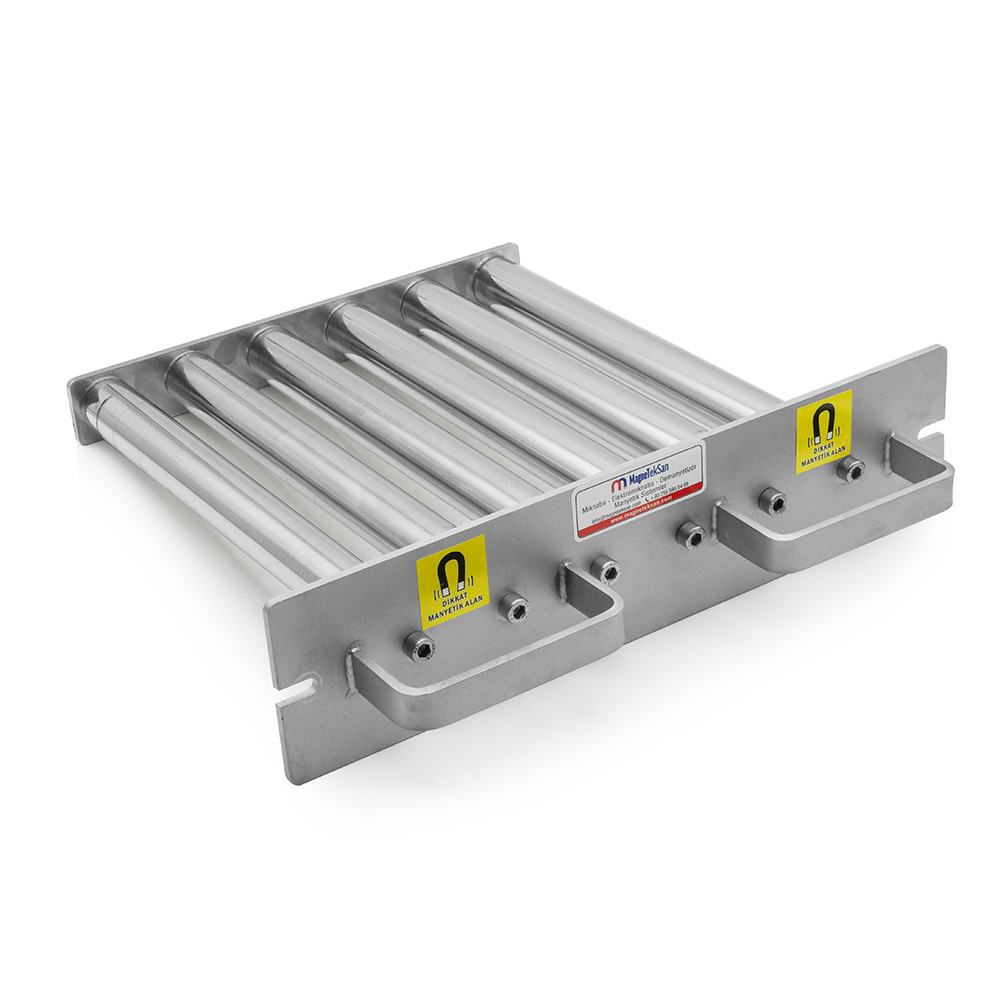

320x320 mm Ø25x6 Neodium Grid Magnet With Stainless Steel Handle

Based on 0 reviews. Write a review

$0.00

With installments starting from $0.00!

Stock	:	Sadece Teklif
Model	:	MGK-EL-188
Category	:	Grid Magnets with Handle

Qty

Teklif İsteyin

Buy Now Extra Button

Add to Wish List

Description
Reviews

Manufacture of Magnetic Separators with Handles - Ø25 mm Bar

Our food-friendly grid magnets are made of stainless steel and will not harm your food. We have productions in sizes suitable for plastic companies, screw outlets.

magnetic grids, which are usually preferred by food manufacturers, are used by many companies.anies. Granulated sugar, flour, pulses, plastic granules, etc. they are produced in accordance with the sectors. These systems, which we produce as complete stainless and sealed, separate all metal parts from your products.

Neodymium permanent magnets, which are very strong in structure, capture metal dust, including. It is our own production and can be redesigned according to the size of the desired environment. It even captures metal dust in the air, giving you a clean product output.Jul. This product can work up to 80°temperature.

Food-Grade Grid Magnet with Gauss Measurement Report

These magnetic separators that we produce as BRC and HACCP food compliance certified do not harm food. Neodium magnetic magnetic grid separators keep the same strength for many years. By mounting to the points where your products are spilled, it provides very good cleaning of fallen products.

These neodymium screen magnets are coated with stainless steel material.
It is coated with AISI 304 and AISI 316 stainless steel, which are preferred by food production companies.
Its resistance to corrosion is very high.
Our products are very strong magnets with high gauss. It is produced in our own production faciliility.
Neodymium grid magnet with drawers can be produced in the high gausses you want.

Can be manufactured as easy-to-clean.

Operating temperature max 80°C

Specifications

Dimensions
Width	251-500 mm
Length	251-500 mm
Height	35 mm
Rod Diameter	25 mm
Magnet Properties
Coating	None
Color	Gray
Gaussian Value	9000-10000 Gauss
Magnet Attraction Distance	0-5 cm
Shape	Square
Strenght	50-75 kg
Tolerance	± 0,1 mm
Magnet Type	Neodymium (NdFeB)
Grade	N35
Max. Operating Temperature	80°C
Material Properties
Complete Stainless	Yes
External Material Feature	Stainless
Exterior Material Quality	316 Quality Stainless
Sealing	Yes
