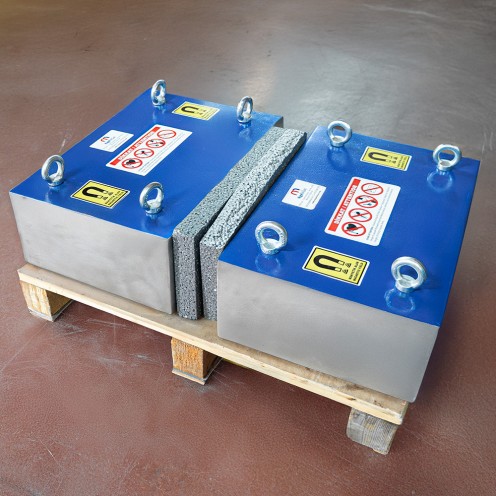

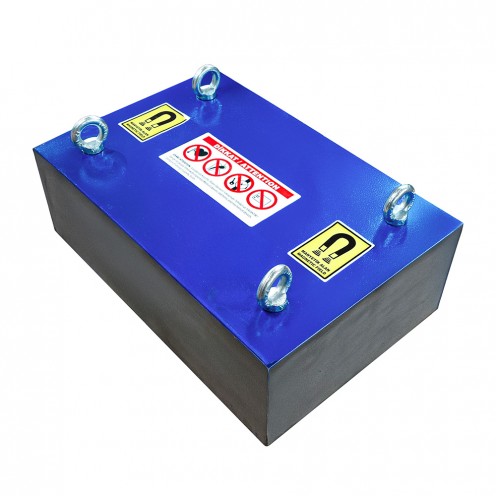

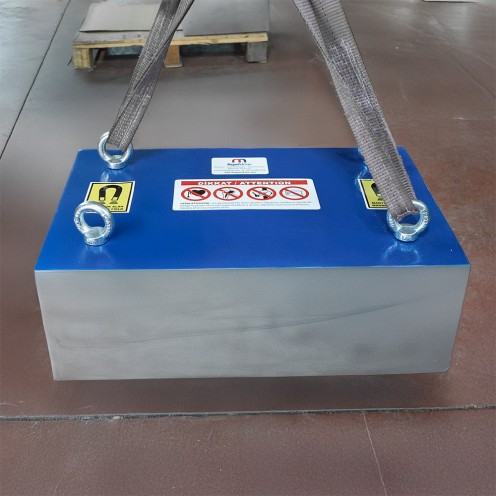

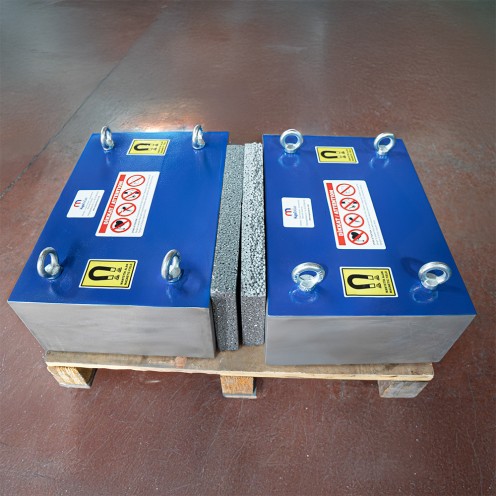

600x400x200 mm Ferrite Plate Magnet – Powerful Lifting and Handling Solution

600x400x200 mm Ferrite Plate Magnet – Powerful Lifting and Handling Solution

The 600x400x200 mm ferrite plate magnet is a heavy-duty magnetic system designed for lifting and handling large metal parts. With its high magnetic field intensity, it securely captures even heavy ferrous materials, increasing efficiency in industrial processes.

The corrosion-resistant ferrite magnet core ensures long-lasting performance, while its maintenance-free design offers a cost-effective solution. Thanks to its easy installation, it can be integrated into various lifting and handling systems in industrial environments.

Key Features

• Powerful ferrite plate magnet measuring 600x400x200 mm

• High magnetic field for safe lifting and handling

• Ferrite (Y35 grade) core – high temperature resistance

• Durable, corrosion-resistant, and long-lasting structure

• Suitable for lifting, handling, and magnetic separation applications

• Domestic production – custom sizes and designs available

Technical Details

• Plate Length: 600 mm

• Width: 400 mm

• Thickness: 200 mm

• Magnet Type: Ferrite (Y35 grade, oxide)

• Operating Temperature: Up to 220°C

• Pulling Force: ~150–200 kg (depending on surface and conditions)
