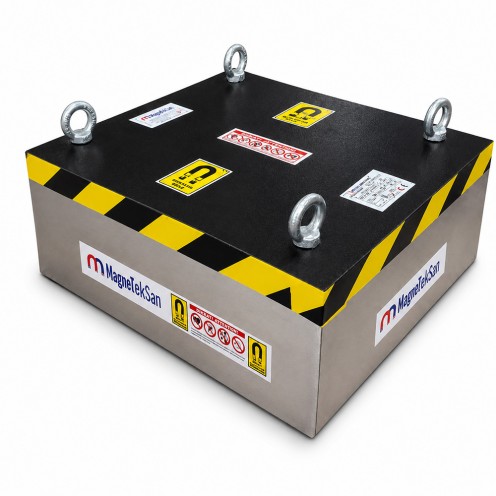

600x500x200 mm Suspended Ferrite Plate Magnet - Conveyor Belt Magnet

600x500x200 mm Suspended Ferrite Conveyor Belt Magnet

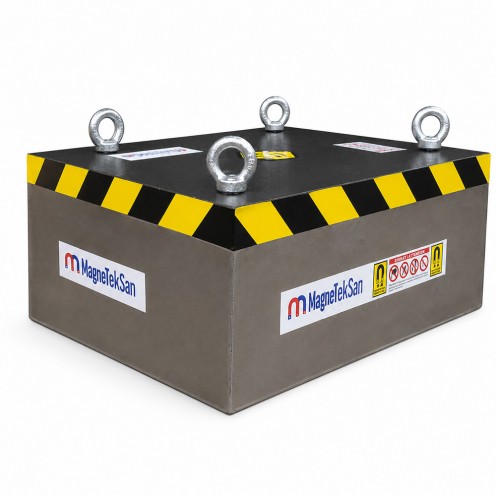

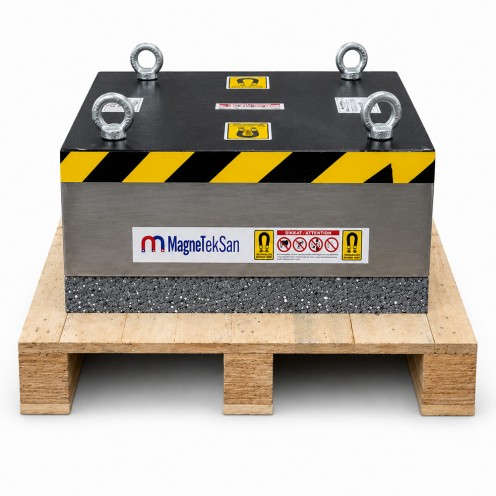

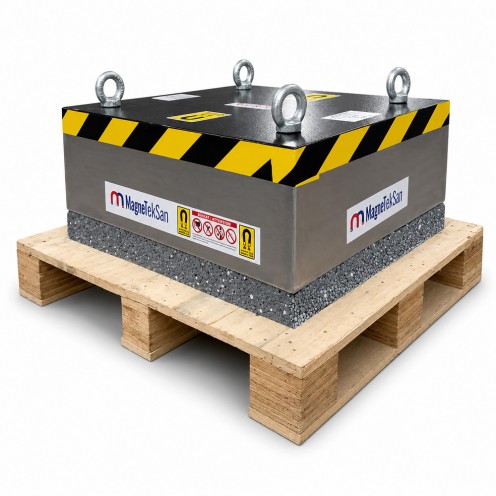

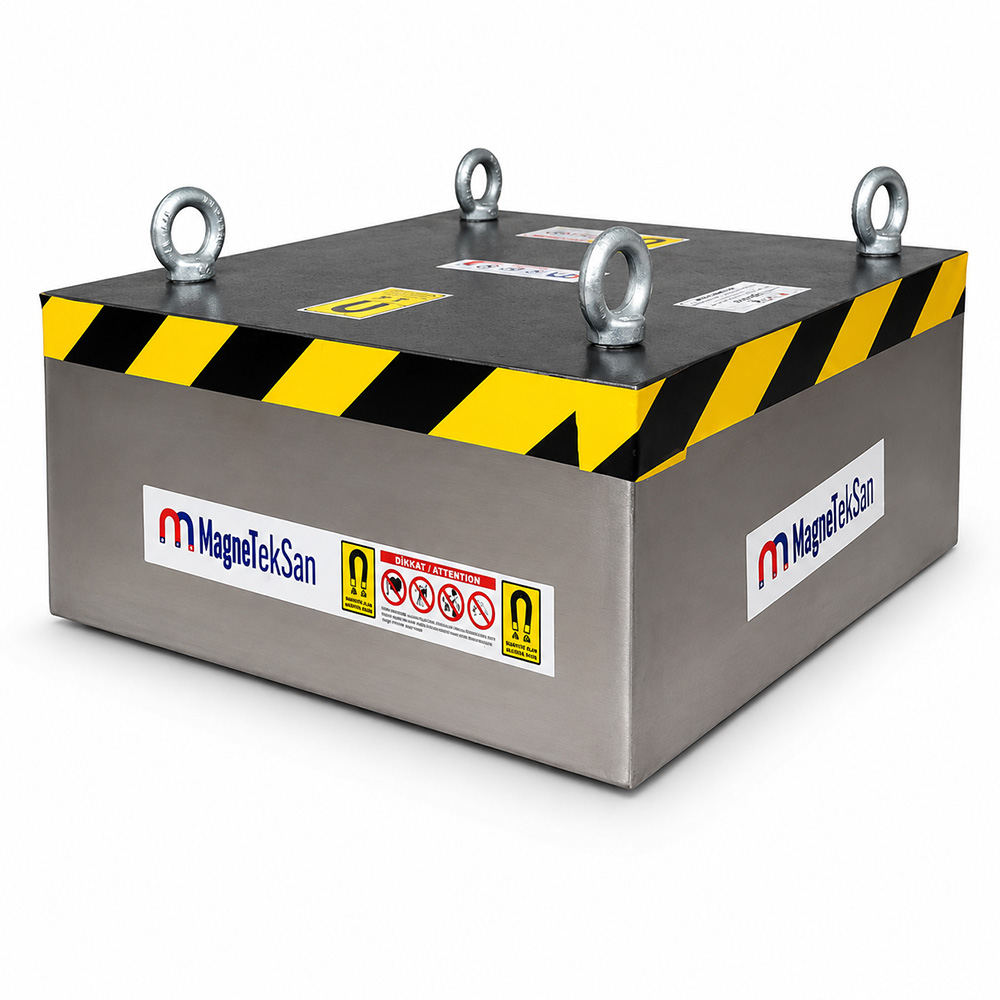

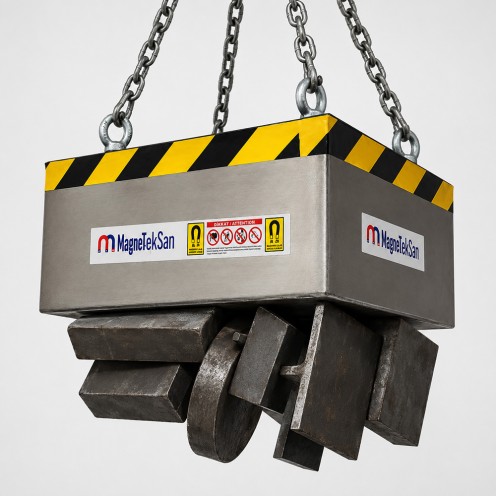

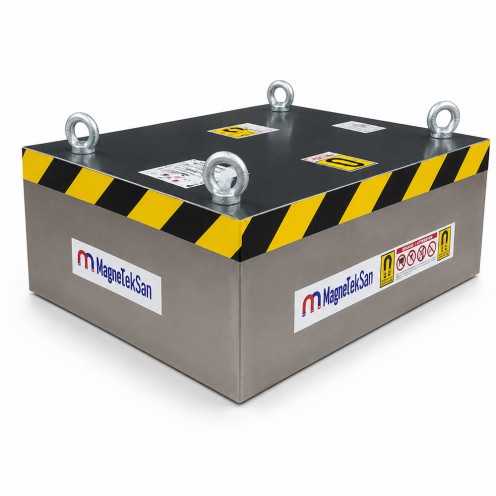

The stainless and leak-proof plate magnet, manufactured with ferrite magnets, has dimensions of 600x500x200 mm. Plate magnets produced in custom sizes and dimensions require no maintenance and offer a long service life. These plate magnets, which can be positioned above conveyor belts, act as magnetic separators for removing metal contaminants from materials passing underneath. The attraction distance varies depending on the thickness of the magnet.

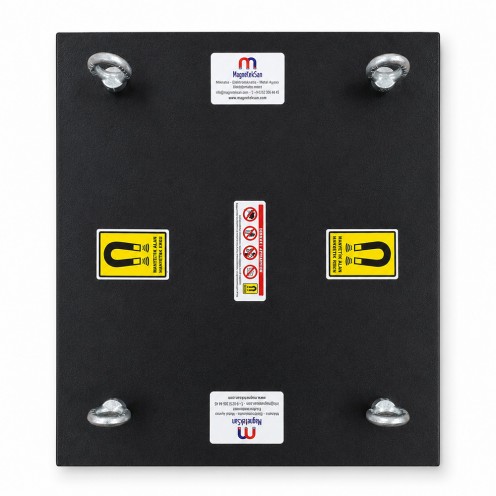

There are M16 threaded holes on all four corners of the plate, making installation extremely simple. The maximum operating temperature is 150°C. Products resistant to higher temperatures can also be requested. For more information about plate magnets, please contact us.

Production According to Technical Drawings

All of our production processes are carried out completely based on technical drawings. For custom production requests, a technical drawing is first prepared and submitted to you. Production begins only after your approval is received for the connection types, connection dimensions, and all product dimensions shown on the technical drawing.

Technical Details

The connection holes of the plate magnet can be determined according to the requested specifications and the customer's requirements. The minimum Fe particle size that can be captured is 0.03 mm (30 microns). The surface sheet of the plate magnet can be manufactured from 304 grade stainless steel or 316L grade stainless steel and has a sandblasted surface. The connection surface is painted. It can also be manufactured entirely from stainless steel. Chrome or Bakelite handles can also be added. The tolerance value is ±3 mm.

Production Options

The plate magnets manufactured by our company offer versatile solutions suitable for different applications and process requirements. Available product types include:

• Easy-clean plates
• Automatic-cleaning designs
• Permanent magnetic or electromagnetic plates
• Electric overband plates / overband electromagnets
• Suspended permanent magnets for conveyor belts
• Cased magnetic plates
• Z-type impact plate magnets
• Handheld scrap magnets
• Custom-designed plate magnets

All products are optimized to provide high performance and reliable magnetic separation. Please contact our company for custom solutions suitable for your needs.
