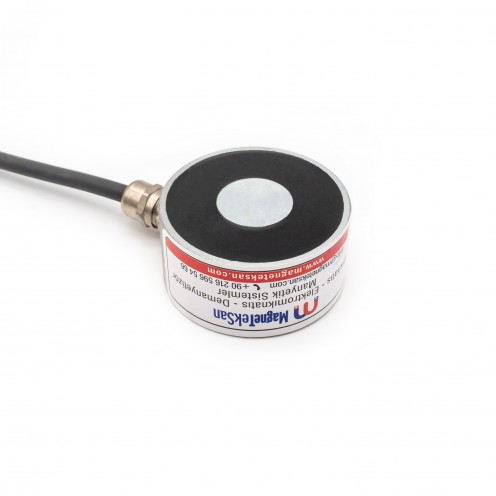

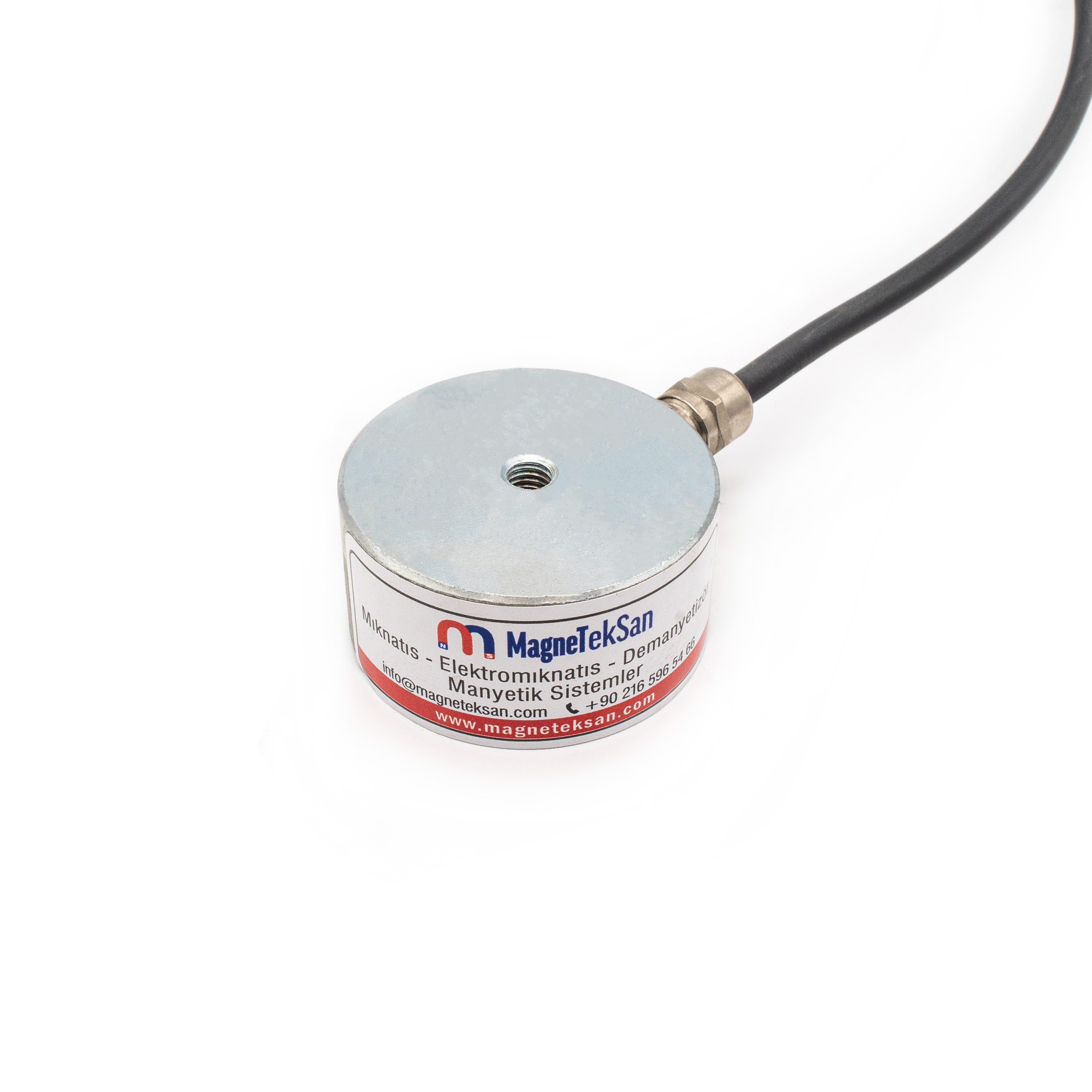

Ø63x30 mm electromagnet with 45 kg pulling force

Powerful Ø63x30 mm Electromagnet - Istanbul's Premier Magnetic Solution

Discover the pinnacle of electromagnetic technology with our Ø63x30 mm (P63/30) electromagnet, designed and manufactured in Istanbul. This compact powerhouse, measuring 63 mm in diameter and 30 mm in height, is revolutionizing material handling across various industries.

Key Features and Applications:

1. Versatile Handling: Ideal for lid manipulation, pipe transportation, and box lifting operations.
2. Precision Control: Widely used in testing equipment, allowing for timed sample lifting and release through programmable commands.
3. Sheet Metal Mastery: Excels in sheet metal handling tasks.
4. Compact Yet Mighty: Despite its small size, it boasts an impressive lifting capacity.
5. Waterproof Design: Engineered to withstand challenging environments.
6. Flexible Power Options: Available in DC 5V, 12V, and 24V configurations.
7. Customizable Dimensions: We offer bespoke electromagnet production to meet your specific requirements.
8. Exceptional Longevity: Rated for 500,000 operational cycles.
9. Wide Temperature Range: Performs optimally from -10°C to 100°C.

Electromagnet Specifications: For a comprehensive overview of our electromagnet range, including lifting capacities and weight specifications across various sizes, please refer to our detailed catalog below.

Model	A (mm)	B (mm)	Strength(kgs)	Watt(W)	Thickness (mm)	Weight (g)
MGK-E-4040	40	40	25	4,8	5.0	300
MGK-E-4530	45	30	30	4,8	5.0	287
MGK-E-5030	50	30	35	6.0	6.0	331
MGK-E-5050	50	50	40	9,6	5.0	580
MGK-E-6060	60	60	50	17,1	6.0	1000
MGK-E-6330	63	30	45	17,1	8.0	550
MGK-E-7035	70	35	60	9,6	10.0	800
MGK-E-7045	70	45	70	15.0	10.0	1000
MGK-E-7060	70	60	75	21,3	8.0	1360
MGK-E-8038	80	38	65	15.0	10.0	1120
MGK-E-8055	80	55	75	14,4	12.0	1620
MGK-E-8060	80	60	80	23,5	10.0	1780
MGK-E-9060	90	60	95	14,4	12.0	2250
MGK-E-10043	100	43	105	21.0	15.0	2000
MGK-E-10060	100	Write a review Your Name Your Review Rating Continue Specifications Dimensions Diameter 63 mm Height 30 mm Magnet Properties Coating Zinc (Zn) Color Gray Magnet Attraction Distance 0-5 cm Magnet Type Electric Max. Operating Temperature 100°C Shape Round Strenght 25-50 kg Tolerance ± 0,1 mm Material Properties Complete Stainless Yes External Material Feature Steel Sealing Yes Exterior Material Quality 304 Quality Stainless WhatsApp Support Ø100x43 mm Large - Powerful Electromagnet Ø100x43 mm Powerful Electromagnet FeaturesThese electromagnets, Ø100x43 mm, P100/43 (100 mm in diameter, 43 mm in height), used for transportation pur.. Teklif isteyin Ø120x60 mm Electromagnet - Large - Powerful Electromagnet - 190 kg Attractive Force Large and Very Powerful Electromagnet - 120x60 mmThese electromagnets with Ø120x60 mm, P120/60 (120 mm diameter, 60 mm height) dimensions, used for tr.. Teklif isteyin New Ø130x75 mm Electromagnet Features of Large and Very Powerful Electromagnet Ø130x75 mm These Ø130x75 mm (130 mm diameter, 75 mm height) electromagnets are widely used for hand.. Teklif isteyin Ø132x77 mm Electromagnet Ø132x77 mm Round Heavy-Duty Electromagnet Specifications This electromagnet, measuring Ø132x77 mm (132 mm in diameter, 77 mm in height), meets your l.. Teklif isteyin New Ø140x40 mm Side Gland Electromagnet Ø140x40 mm Side Fitting Electromagnet Specifications These electromagnets, designed for transportation purposes with dimensions of Ø140x40 mm (140 .. Teklif isteyin
