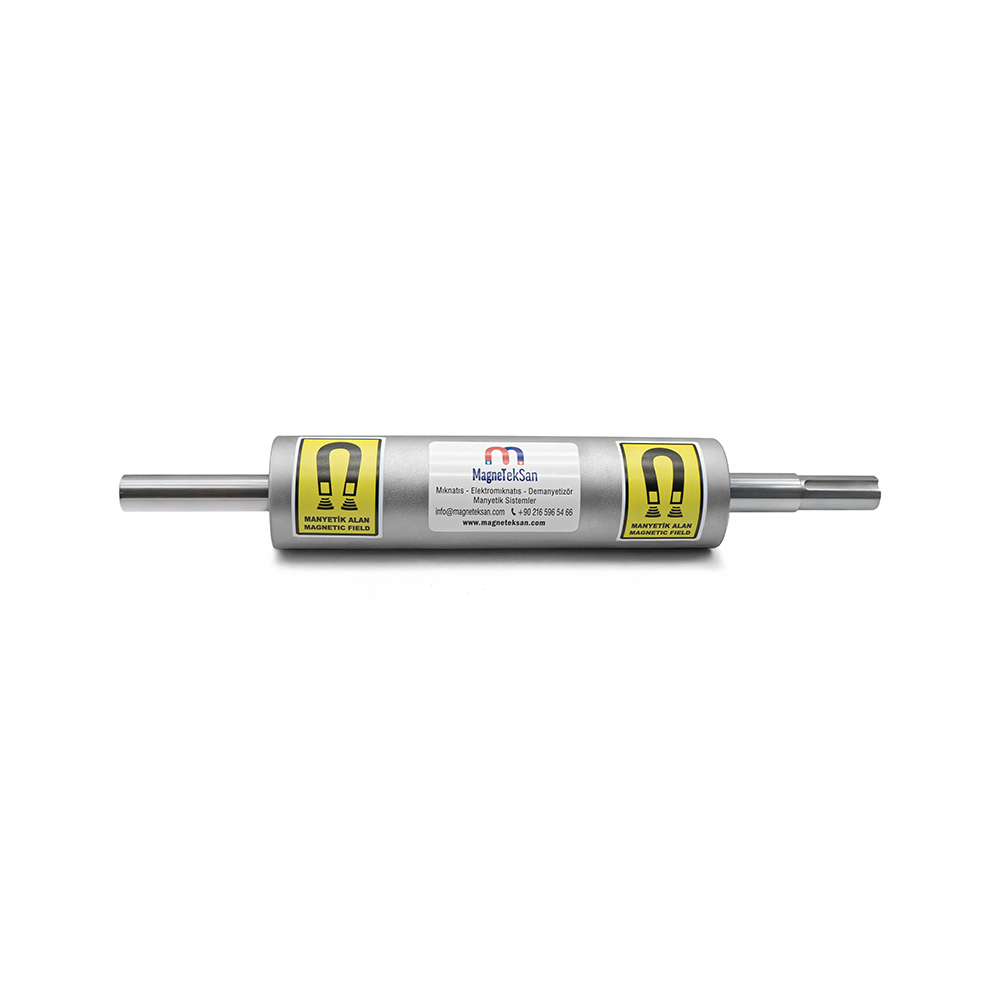

Ø76x300 mm Ferrite Drum Magnet – Compact Magnetic Metal Separator (Y-TM Series)

Ø76x300 MM CK-YMG FERRITE DRUM MAGNET – COMPACT AND EFFICIENT METAL SEPARATOR

The CK-YMG series Ø76x300 mm ferrite drum magnet is a reliable magnetic separator developed for removing ferromagnetic contaminants in compact production lines. Specifically designed for use in limited spaces, this model offers high performance despite its small diameter. The ferrite magnetic core system generates a continuous magnetic field across the drum surface, efficiently capturing metal particles.

AUTOMATIC SEPARATION COMPATIBLE WITH CONVEYOR BELTS

This drum magnet is integrated at the end of conveyor belt systems to automatically separate metal particles without requiring an additional process. Metals attracted to the rotating drum surface are directed to a separate discharge chute, while non-magnetic materials exit through another outlet. This setup enhances product purity and ensures process safety.

STAINLESS STEEL BODY AND HIGH TEMPERATURE RESISTANCE

The product features a 304-grade stainless steel body that is resistant to harsh environmental conditions. Thanks to its ferrite magnets, it can operate safely at temperatures up to 150°C. It offers a long-lasting, maintenance-free solution in both production lines and recycling applications.

CUSTOM MANUFACTURING OPTIONS AVAILABLE

CK-YMG drum magnets can be manufactured in different diameters and lengths depending on application requirements. For processes requiring higher magnetic force, neodymium magnet alternatives are also available.

APPLICATION AREAS

• Metal separation in plastic and granule processing lines

• Ferromagnetic removal in recycling facilities

• Impurity removal before production in ceramic and glass industries

• Separation of metal particles in mining and ore processing systems

• Process protection in chemical and construction material production lines

ADVANTAGES OF USING DRUM MAGNETS

• Compact design allows installation in narrow spaces

• Ferrite magnets with high temperature resistance

• Rotating drum structure provides automatic cleaning

• Continuous magnetic field with zero energy consumption

• Improves product purity and enhances system efficiency

• Durable stainless steel body with low maintenance cost

Magnetic drums can be manufactured in non-standard dimensions, different capacities and magnetic strengths according to customer requirements. The minimum ferrous particle size that can be captured is 0.03 mm and/or 0.05 mm.

The drum magnet can be produced from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted surface finish. The manufacturing tolerance is ±3 mm.

The magnetic drums manufactured by our company are available in full magnetic and half magnetic configurations, providing suitable solutions for different process requirements. Thanks to the high-efficiency magnetic field design, they enable continuous and effective separation of ferromagnetic materials.

Our systems can be supplied as a single drum unit or as a complete frame-mounted system, designed to be integrated into belt conveyors or bunker-fed applications. With a robust body structure, long service life, and customizable dimensions based on customer needs, our magnetic drums are optimized for industrial use.

For custom-designed solutions tailored to your application, please feel free to contact our company.
