810x200x45 mm Easy Clean Neodymium Plate Magnet

860x200x45 mm High-Power Hinge Plate Magnet with Easy Release

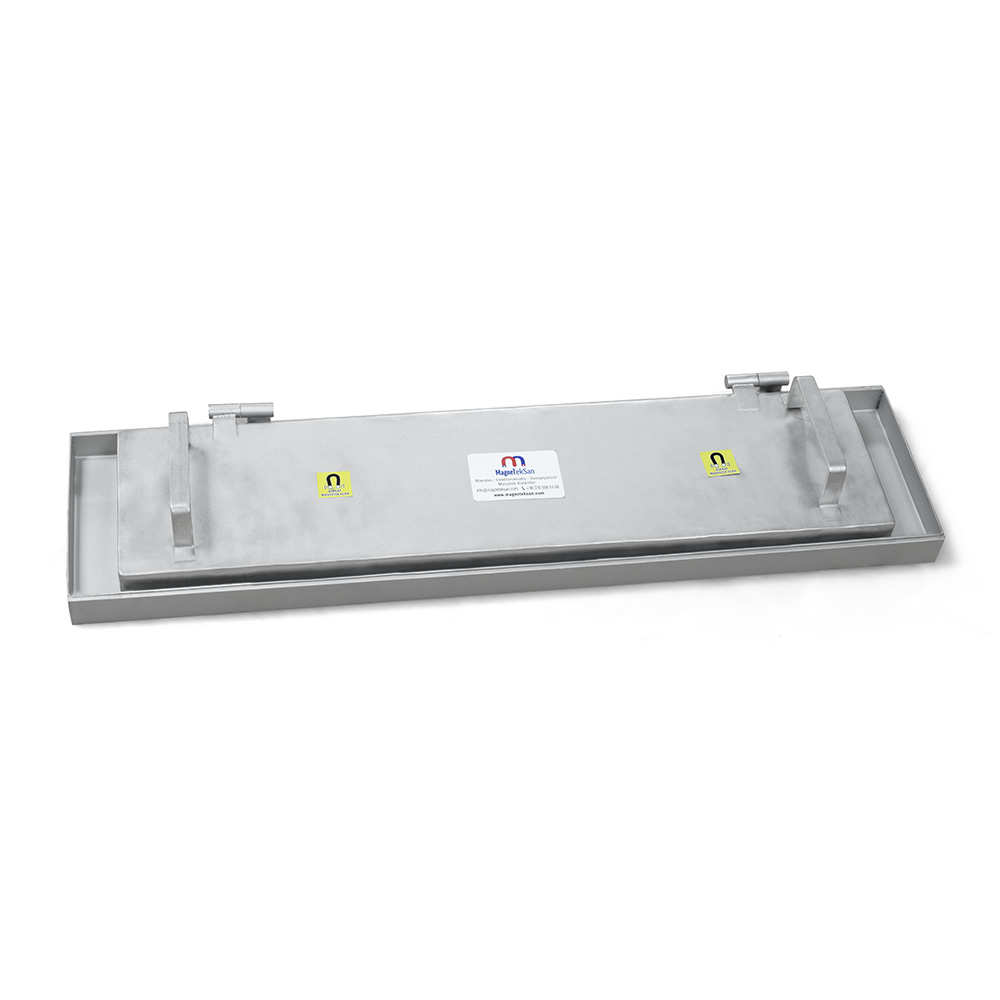

This plate magnet is 860 mm long, 200 mm wide, and 45 mm high. It is made from N35 Neodymium magnets and is extremely powerful, easily attracting metal parts. These plate magnets, with a wide range of applications, are specially manufactured by our company.

Hinged Cover for Easy Cleaning and Use

It is equipped with a hinged cover for ease of cleaning and use. Once the metal parts are collected on the magnet, the cover can be easily opened, allowing the products to be quickly released into the desired area. This feature provides great practicality for users.

Leak-Proof Structure and Maximum Temperature

With its leak-proof design, this plate magnet offers safe use. The maximum operating temperature of the product is 80°C, though models resistant to higher temperatures can also be requested.

Contact Us for More Information

For more detailed information, please contact our company.

The mounting holes of plate magnets can be determined according to customer requirements and desired specifications. The minimum ferrous particle size that can be captured is 0.03 mm.

The surface plate of the magnet can be manufactured from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted finish. The mounting surface is painted. Upon request, the product can also be manufactured entirely from stainless steel. Additionally, handles made of chrome or bakelite can be added. The manufacturing tolerance is ±3 mm.

Plate magnets manufactured by our company provide versatile solutions for different applications and process requirements. Our products are available as easy-clean plates, self-cleaning designs, permanent magnet plates, or electromagnetic plates.

Furthermore, we also manufacture overband electromagnetic separators (electromagnetic plate magnets for conveyors), suspension-type permanent overband magnets, housing-type magnetic plates, Z-type deflection plate magnets, handheld scrap magnets, and custom-designed plate magnets.

All products are optimized to deliver high performance and reliable magnetic separation.

For custom solutions tailored to your application, please feel free to contact our company.
