860x200x45 mm Plate Magnet for Olive Processing Plant

Metal Separation Plate Magnet for Olive Processing Plants

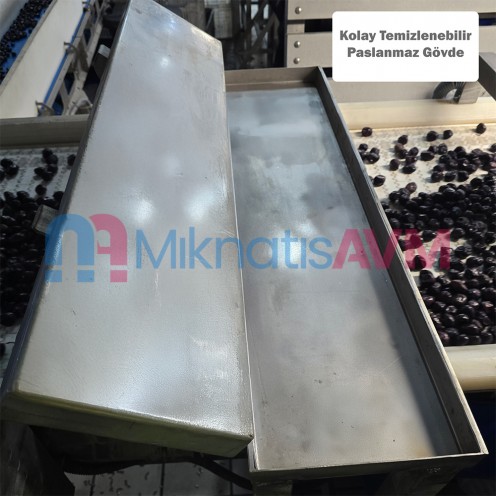

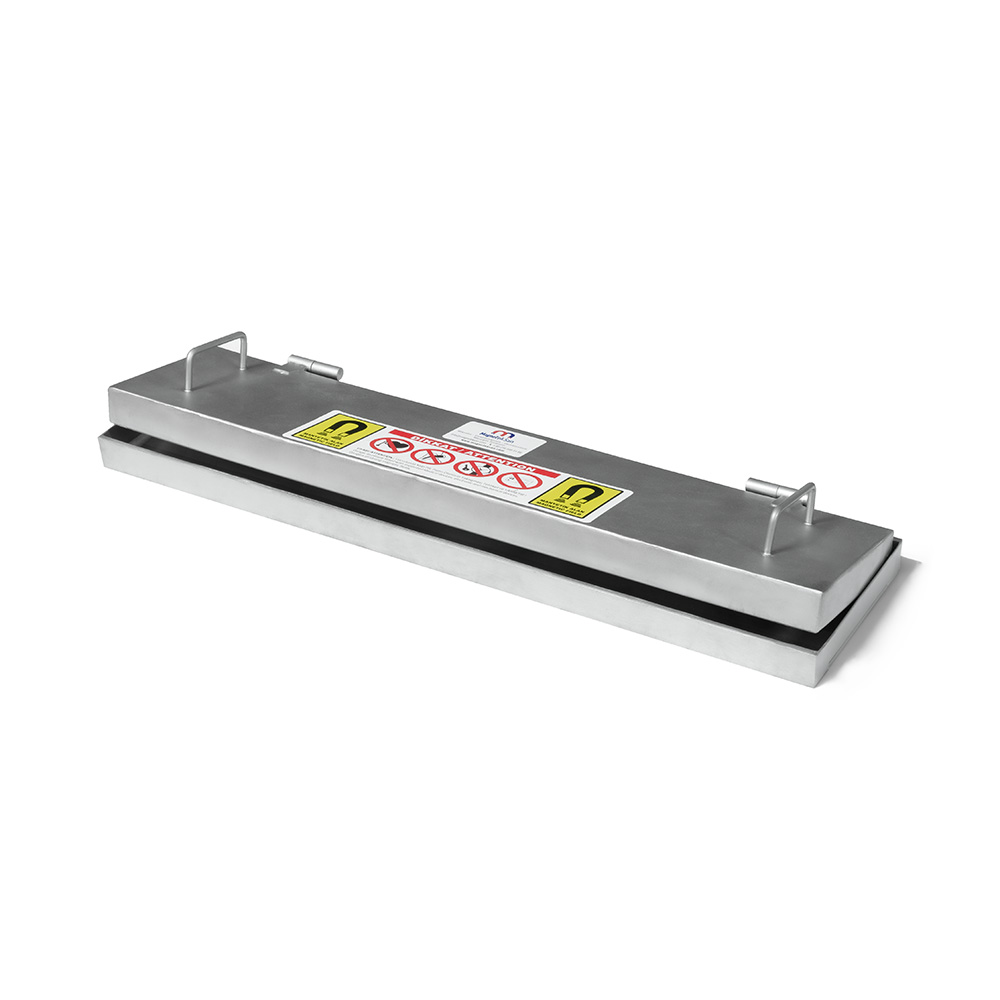

This powerful plate magnet, measuring 860x200x45 mm, is specially designed for the fastest and safest removal of metallic contaminants in olive processing facilities. With its N35 neodymium magnet structure, it provides strong magnetic pull, effectively capturing metal pieces that may accumulate on production lines.

The hinged quick-release system allows collected metal fragments to be discharged with a single motion, offering speed, hygiene, and practicality in olive-processing operations. Its sealed body ensures safe use in factory environments, while its 80°C maximum operating temperature delivers reliable performance in washing, sorting, and filling lines.

It is the ideal solution for facilities that want to increase product quality, eliminate metal contamination risks, and streamline workflow in olive production.

Technical Specifications

• Dimensions: 860 x 200 x 45 mm

• Magnet Type: N35 Neodymium

• Body: Sealed housing

• Cover System: Hinged easy-release mechanism

• Maximum Operating Temperature: 80°C

• Custom Options: High-temperature resistant versions available

• Usage: Manual or inline metal collection

Product Advantages

• Minimizes metal contamination risk in olive processing lines

• Strong magnetic force ensures fast and effective metal collection

• Quick and practical discharge via hinged cover

• Safe and hygienic for food processing facilities

• Enhances quality control in production lines

• Durable, long-lasting construction

• Saves time and improves operational efficiency

Application Areas

• Olive washing lines

• Olive sorting and selection conveyors

• Pre-filling and pre-packaging inspection points

• Industrial food processing plants

• Any production line with metal contamination risk

• Workshops and maintenance departments for metal collection

The mounting holes of plate magnets can be determined according to customer requirements and desired specifications. The minimum ferrous particle size that can be captured is 0.03 mm.

The surface plate of the magnet can be manufactured from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted finish. The mounting surface is painted. Upon request, the product can also be manufactured entirely from stainless steel. Additionally, handles made of chrome or bakelite can be added. The manufacturing tolerance is ±3 mm.

Plate magnets manufactured by our company provide versatile solutions for different applications and process requirements. Our products are available as easy-clean plates, self-cleaning designs, permanent magnet plates, or electromagnetic plates.

Furthermore, we also manufacture overband electromagnetic separators (electromagnetic plate magnets for conveyors), suspension-type permanent overband magnets, housing-type magnetic plates, Z-type deflection plate magnets, handheld scrap magnets, and custom-designed plate magnets.

All products are optimized to deliver high performance and reliable magnetic separation.

For custom solutions tailored to your application, please feel free to contact our company.
