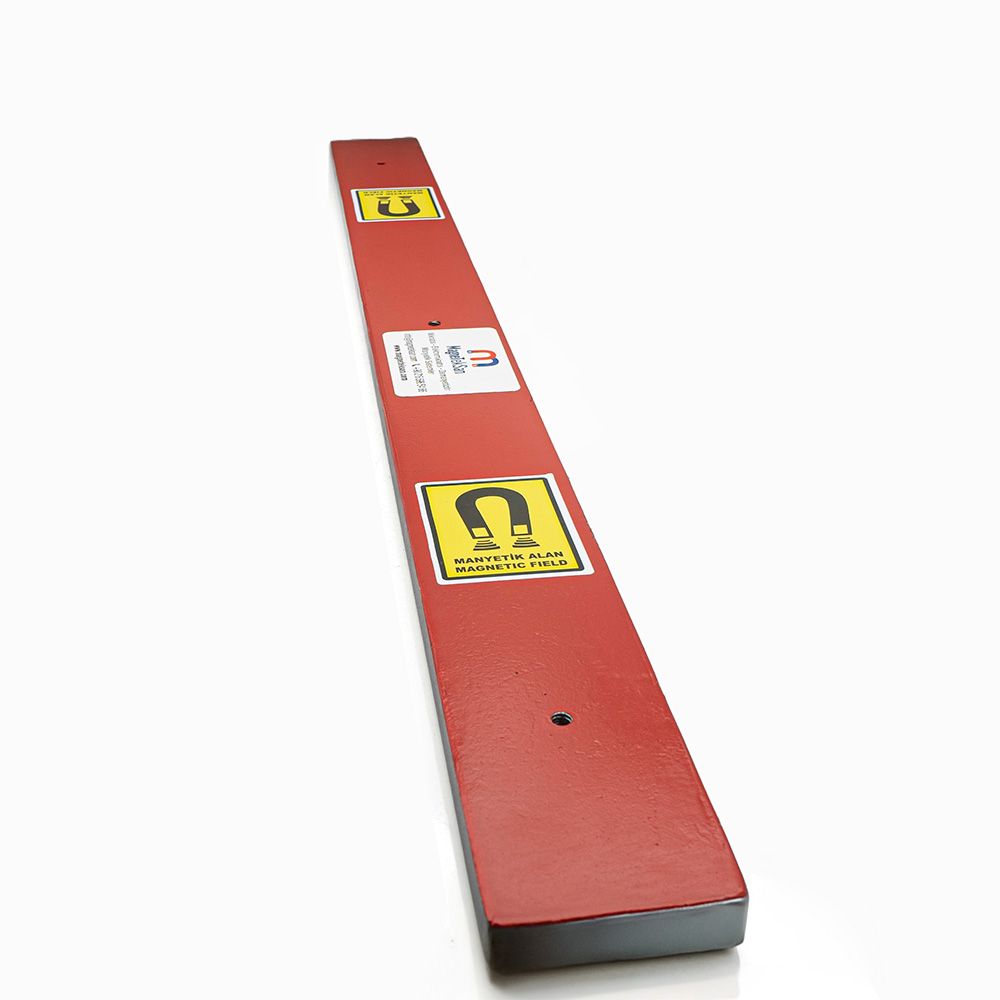

990x80x22 mm Neodymium Plate Magnet – Industrial-Grade Magnetic Separator

This 990 mm x 80 mm x 22 mm neodymium plate magnet is designed for powerful magnetic separation in industrial applications. With its high surface coverage and strong magnetic field, it is ideal for removing ferrous contaminants in conveyor systems, recycling plants, and heavy-duty material handling lines.

Product Features:

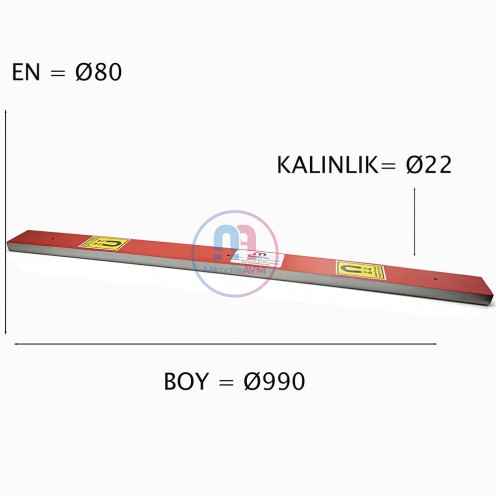

• Dimensions: 990x80x22 mm

• Magnet Type: NdFeB (Neodymium-Iron-Boron)

• Grade: N35 – High magnetic strength

• Application: Scrap removal, ferrous metal separation, industrial magnetic holding

• Coating: Nickel (optional custom coating)

• Use Case: Conveyor-mounted magnetic separators, processing lines, recycling systems

This heavy-duty magnet is manufactured by Magneteksan and available with a Gauss measurement certificate upon request. Built for long-term industrial performance and reliability.

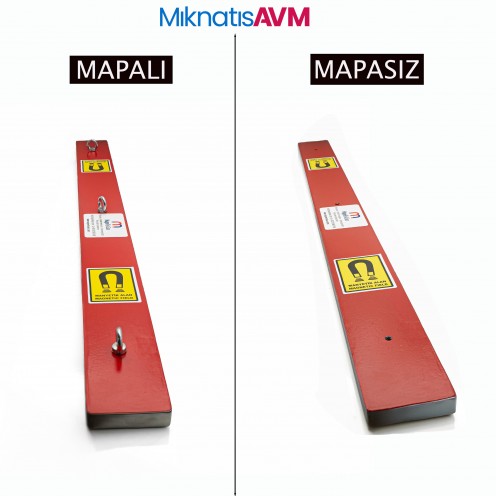

The mounting holes of plate magnets can be determined according to customer requirements and desired specifications. The minimum ferrous particle size that can be captured is 0.03 mm.

The surface plate of the magnet can be manufactured from AISI 304 stainless steel or AISI 316L stainless steel and features a sandblasted finish. The mounting surface is painted. Upon request, the product can also be manufactured entirely from stainless steel. Additionally, handles made of chrome or bakelite can be added. The manufacturing tolerance is ±3 mm.

Plate magnets manufactured by our company provide versatile solutions for different applications and process requirements. Our products are available as easy-clean plates, self-cleaning designs, permanent magnet plates, or electromagnetic plates.

Furthermore, we also manufacture overband electromagnetic separators (electromagnetic plate magnets for conveyors), suspension-type permanent overband magnets, housing-type magnetic plates, Z-type deflection plate magnets, handheld scrap magnets, and custom-designed plate magnets.

All products are optimized to deliver high performance and reliable magnetic separation.

For custom solutions tailored to your application, please feel free to contact our company.
