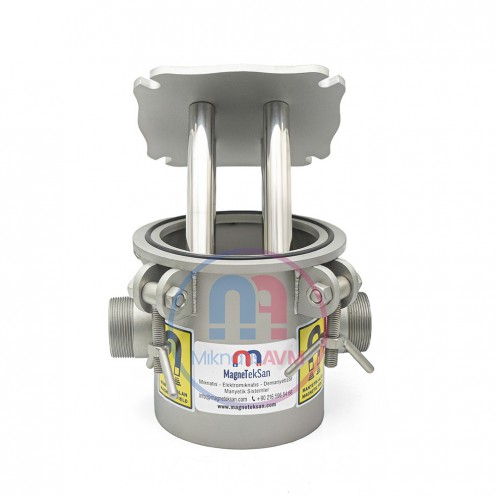

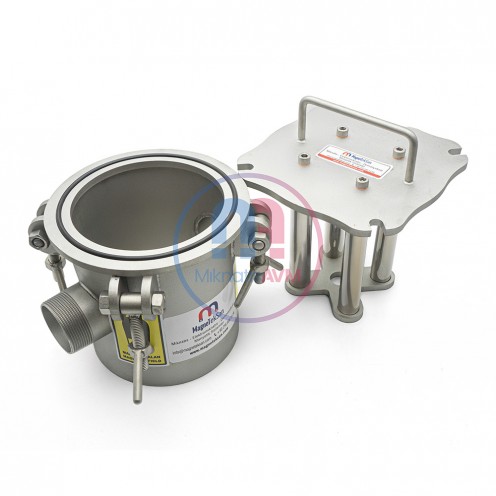

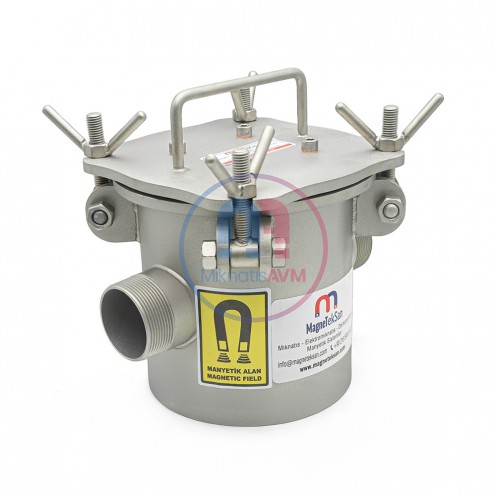

DN50 Ø25x170 mm Neodymium Filter Magnet – Powerful Metal Separation in Liquid Lines

DN50 Ø25x170 mm Neodymium Filter Magnet – Powerful Metal Separation in Liquid Lines

The DN50 Ø25x170 mm neodymium filter magnet is designed to prevent metal contamination in liquid food lines and industrial fluid systems. Thanks to its high-strength neodymium magnetic rods, it efficiently captures even micron-sized ferrous particles suspended in liquids, ensuring product safety and process reliability.

Built with a fully stainless steel housing, this magnetic filter is food-grade certified and features a leak-proof design for safe use in direct-contact liquid environments. Its compact size allows for easy installation in tight piping systems.

Key Features

• DN50 connection size with Ø25x170 mm neodymium magnetic rods

• High magnetic strength for micron-level metal particle capture

• Food-safe, stainless steel, and leak-proof body

• Manufactured in compliance with BRC and HACCP standards

• Supplied with TÜBİTAK-certified Gauss measurement report

• Maximum operating temperature: 80°C (optional design up to 150°C)

• Domestic production – Custom sizes and Gauss values available

Technical Specifications

• Connection Size: DN50

• Magnet Diameter: Ø25 mm

• Magnet Length: 170 mm

• Magnet Type: Neodymium (NdFeB)

• Operating Temperature: Max. 80°C (optional up to 150°C)

• Housing Material: AISI 304 Stainless Steel

• Structure: Leak-proof, food-grade compliant
