Magnetic Liquid Separator - Metal Separator - 150 mm

Magnetic Liquid Separator - Metal Separator - 150 mm

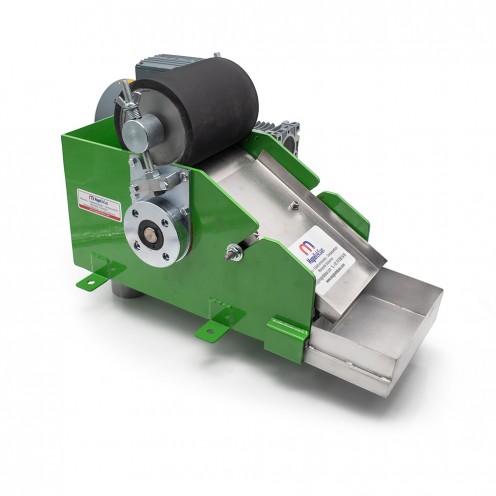

The Ø129x150 mm drum magnet liquid separator is specially designed to prevent metal contamination in liquid-based production lines. It efficiently captures and removes metal chips, particles, and fine dust from cutting oils, water, milk, chemical mixtures, and other food-grade liquids.

Thanks to its high-powered neodymium magnet core, it can filter even micron-sized metal particles. Its compact structure makes it ideal for use in systems with limited space. With a sealed body and AISI 304 stainless steel housing, it ensures durability, hygiene, and long-lasting performance.

Key Features

• Compact and practical use with Ø129x150 mm drum size

• Removes ferrous contamination from cutting oils, water, milk, food liquids, and chemicals

• High magnetic strength with neodymium magnets

• Sealed stainless steel body – hygienic and safe operation

• Manufactured in compliance with food standards (BRC, HACCP certified)

• Delivered with TÜBİTAK-approved Gauss report

• 100% domestic production – custom sizes and Gauss strength available

Technical Specifications

• Drum Diameter: 129 mm

• Drum Length: 150 mm

• Magnetic Flux: 4100 Gauss (±5%)

• Operating Temperature: Max. 220°C

• Material: AISI 304 Stainless Steel

• Coating: Stainless, sealed construction

• Motor Type: Geared

• Motor Power: 0.25 kW

This magnetic liquid separator ensures maximum safety in food, chemical, recycling, and industrial liquid processing lines. The compact 150 mm model provides a high-performance metal separation solution for small and medium-sized production facilities.
