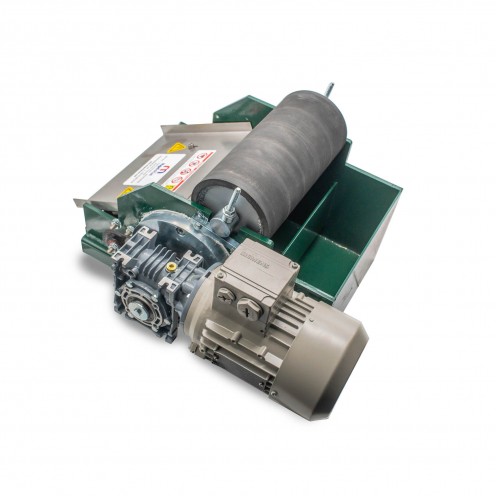

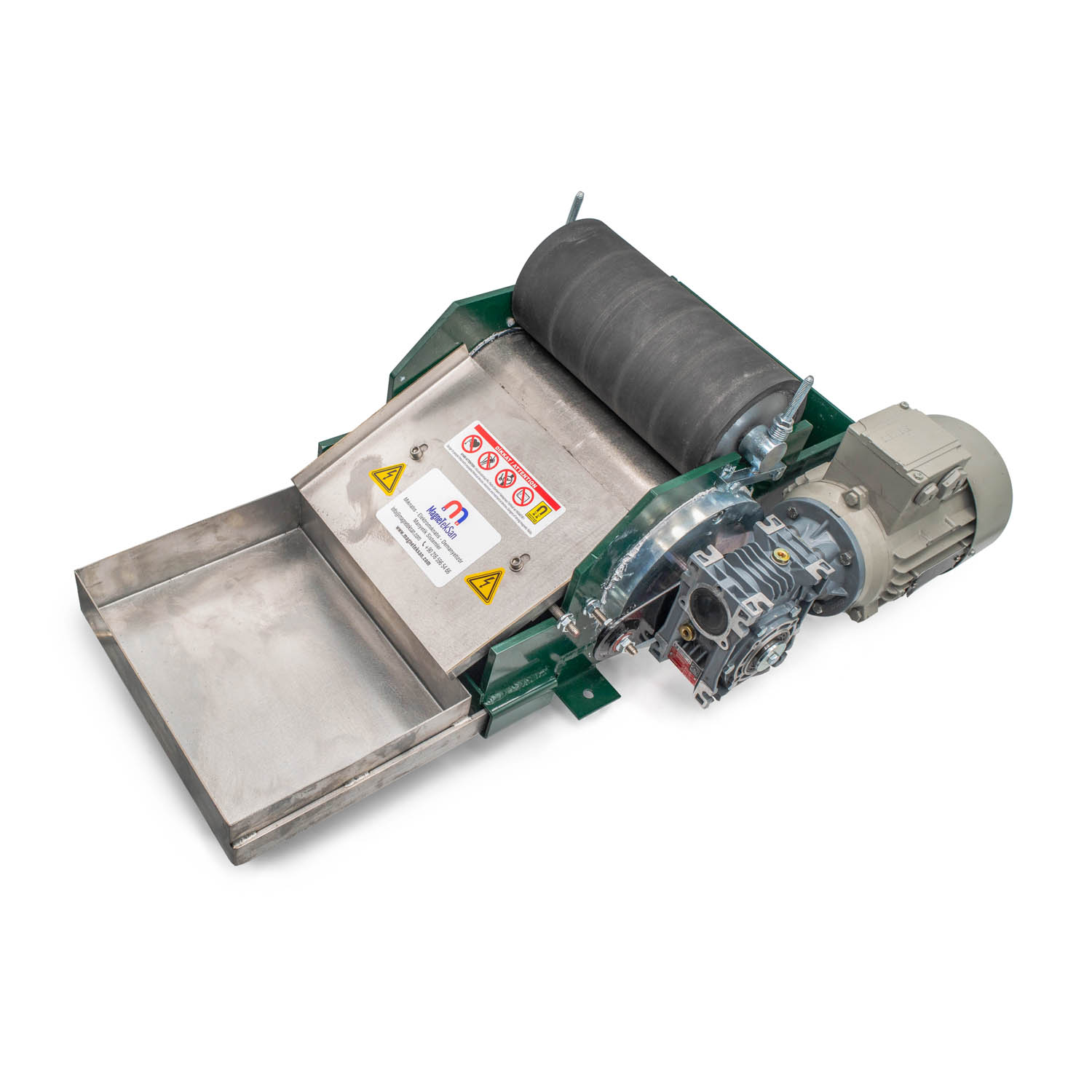

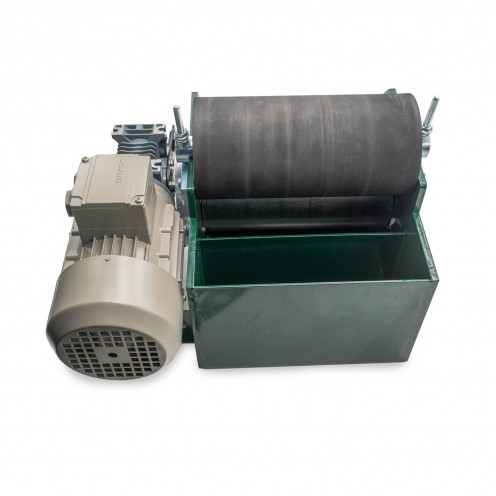

Magnetic Liquid Separator - Metal Separator - 250 mm

Drum Magnetic Liquid Separator - Liquid Metal Separator

Drum magnet liquid separator cleans metals from liquid materials, oils, foods. This product, also known as a metal shavings removal magnet, is domestically produced and manufactured by us. It separates metal parts, chips, and dust from boron oils, water, milk, etc. food products. Magnetic filters ensure food and product safety by separating the metals in your products. We produce according to food standards. With its gearbox and 0.25 kVA motor, this coolant cleaning magnet is leak-proof. Here are the other features of the drum-type metal separator magnet separator;

• The magnet measurement values of our magnetic filters comply with BRC and HACCP standards.< / li>
• Our magnetic filters are certified by TÜBİTAK. This certificate will be delivered with the product when you purchase it.
• Made from neodymium magnets with high magnetic force. In this way, it can easily attract very small-sized metal powders and particles.
• The production of these neodymium magnet filters is entirely our own and is domestically manufactured. Since it is our own production, we have the capacity to manufacture magnetic filters in the sizes and gauss strengths you require.
• It can be easily used in environments where there is interaction with liquid.< / li>
• Please inform us of the temperature of the environment where this magnet will be used.

Liquid Separator Technical Specifications

• Drum diameter: 129 mm
• Drum length: 250 mm
• Magnetic flux: 4100 Gauss (±5%)
• Operating Ambient Temperature: Max 220°C
• Material: AISI 304
• Coating: Stainless
• Type: Sealed
• Motor Type: Gearbox-driven
• Motor Power: 0.25 kWA

Liquid separators can be produced according to customer requirements in non-standard sizes, different capacities and magnetic powers. The minimum detectable ferromagnetic particle size is 0.05 mm. The surface sheet of the magnet is made of AISI 304 stainless steel and has a sandblasted surface. The body panel is manufactured from painted steel material. The system provides highly efficient separation performance thanks to the combination of a magnetic drum and a printing drum. The production tolerance is ±3 mm.

For custom solutions tailored to your needs, contact our company.
